CEN/TR 14920 Figure 1 Moving Jet Test Ceramic Nozzle for Testing Jetting Resistance Of Drain And Sewer Pipes
Product Details:
| Place of Origin: | China |
| Brand Name: | Kingpo |
| Certification: | Calibration Certificate (ISO17025) |
| Model Number: | CEN/TR 14920:2005-Figure 1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | To be quoted |
| Packaging Details: | safety carton pack or plywood box |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 200 pcs per month |
|
Detail Information |
|||
| Material: | Ceramic + Stainless Steel | Ceramic Inner Diameter: | 2.8mm |
|---|---|---|---|
| Max Pressure: | 35Mpa | Water Flow: | 46 L/min |
| High Light: | rain test equipment,salt spray test chamber |
||
Product Description
Jetting resistance of drain and sewer pipes - Moving jet test method

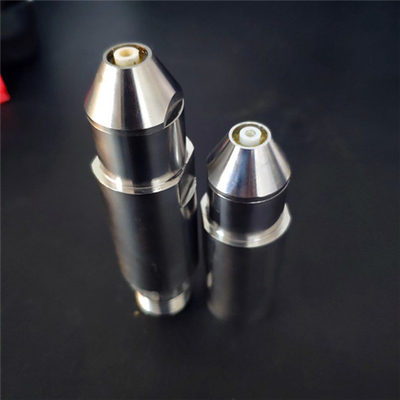

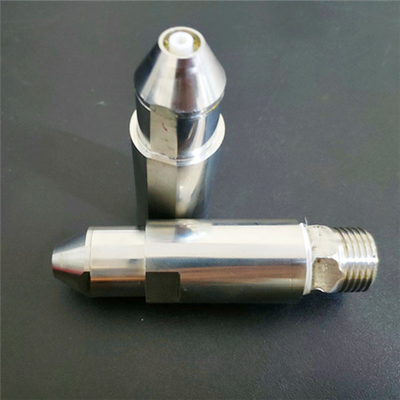

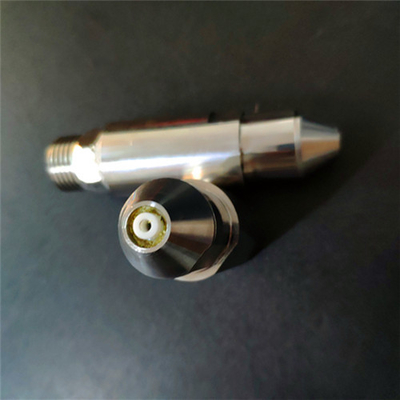

CEN/TR 14920:2005 Figure 1 Ceramic Nozzle
| CEN/TR 14920:2005 | |
| Pressure: | 12±0.2 Mpa |
| Flow | 46±0.5L/min |
| Gauge | 10[-2,0]mm |
| Angle | 30±1° |
| Speed | 1m±0.1m/min |
| Nozzle diameter | φ2.8±0.02mm |
