Apparatus For Testing Resistance To Abnormal Heat Of Insulating Sleeves Of Plug Pins , IEC 60884-1 Test Equipment

Product Details:

Place of Origin: China
Brand Name: Kingpo
Certification: Calibration Certificate
Model Number: KP-8110P

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: To be Quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 50 working days
Payment Terms: T/T
Supply Ability: 80 sets per month
Contact Now

Detail Information

Standard: IEC60884-1-figure 40, VDE 0620-Bild 39 . INSULATION BOARD: Thick 5±0.2mm
METAL PARTS B MATERIAL: Brass BOLT HOLE OF METAL PARTS B: More Than 0.1 Mm
High Light:

IEC 60884-1 Plug Socket Tester

,

VDE 0620-Bild 39 Plug Socket Tester

,

Insulating Sleeves Plug Socket Tester

Product Description

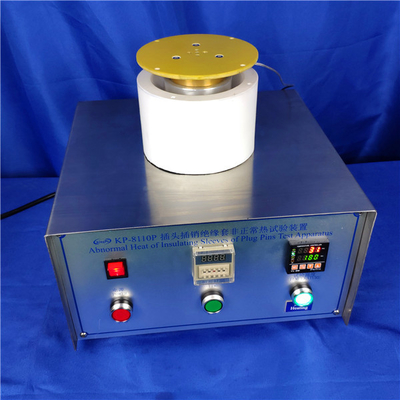

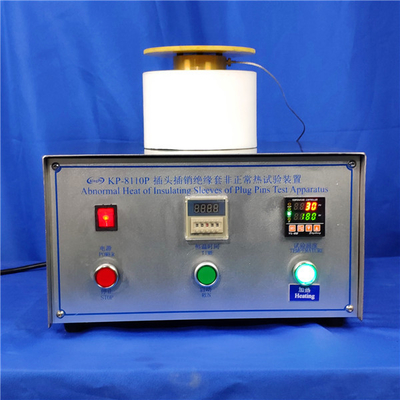

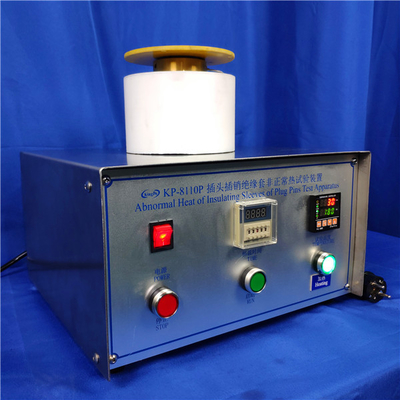

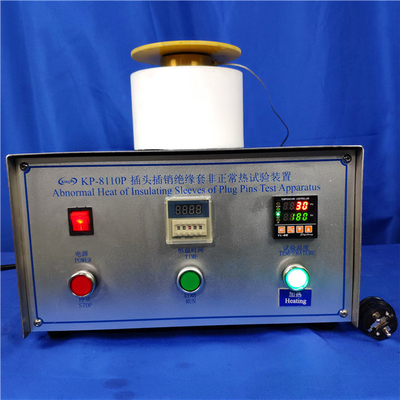

Apparatus For Testing Resistance To Abnormal Heat Of Insulating Sleeves Of Plug Pins , IEC 60884-1 Test Equipment





IEC60884-1 Figure 40 Apparatus for testing resistance to abnormal heat of insulating sleeves of plug pins , IEC 60884-1 test equipment



1. Product information:

To determine testing resistance to abnormal heat of insulating sleeves of plug pins, in according to IEC 60884-1 figure 40,This test apparatus consists of an insulating plate A and of a metal part B: between these two parts an air space of 3 mm shall be provided and this distance shall be obtained through means which do not impair the air circulation around the pins.



Standard:

IEC60884-1-figure 40, VDE 0620-Bild 39 .



Technical parameters:

Insulating part A:

Thick 5±0.2mm, have a diameter equal to twice the maximum permissible dimension of the engagement face of the plug given in the relevant standard sheet



Metal part B:

the length is more than 20 mm, brass, five pieces, can be replaced;

Gap between insulation board and metal parts B: 3 mm, ensuring surrounding cross-ventilation

Distance between thermocouple and the metal parts B: 7 mm;

Bolt hole of Metal parts B: more than 0.1 mm;

Equipped with K-type electric heater, imported high-precision digital-display table

Length 20 mm min
Material Brass
Standard Socked: choose different country socket
Can be replaced Yes




Apparatus For Testing Resistance To Abnormal Heat Of Insulating Sleeves Of Plug Pins , IEC 60884-1 Test Equipment 0



Apparatus For Testing Resistance To Abnormal Heat Of Insulating Sleeves Of Plug Pins , IEC 60884-1 Test Equipment 1
