ISO 80369-20 Medical Small Bore Connector Test Equipment,Medical testing equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Kingpo |
| Certification: | Certificate of ISO17025 |
| Model Number: | ISO80369-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | To be quoted |
| Packaging Details: | safety carton pack or plywood box |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Brand Name: | Kingpo | Assembly Force: | 26.5N - 27.5N. |
|---|---|---|---|
| Assembly Torque: | 0.08 - 0.12Nm | According To: | ISO 80369-20 |
| High Light: | Small Bore Connector Test Equipment,ISO 80369-20 Bore Connector Test Equipment,ISO 80369-20 Tester |
||
Product Description
ISO 80369-20 Medical Small Bore Connector Test Equipment

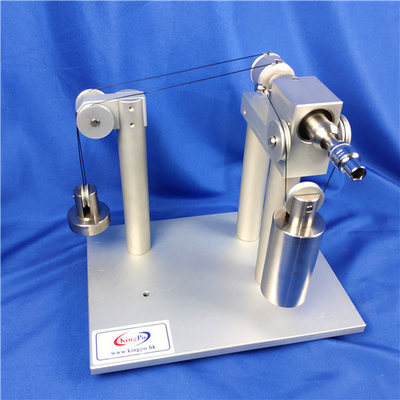

The Connector Assembly Device is the core piece of equipment required for all of the ISO 80369-20 specified tests.
The device is used to apply the required force and torque simultaneously when connecting a reference connector with a test sample. The device may also be used to apply a specified force-only or torque-only.
The connector assembly device is made from aluminum and hardened steel. The device has a durable and attractive anodized finish. The device has been designed to be compact and easy to use, with no other requirements like an electrical supply or compressed air, etc.
The Connector Assembly Device is suitable for the assembly requirements in:
ISO 80369-20 annexes: B, C, D, E, F, G, H and I; as well as
ISO 18250-1 annexes C, D, E, F, G, H and I.
This device is also suitable for carrying out the Resistance to overriding test per ISO 80369, and ISO 18250, Annex H.
