Iphone Roller Rolling Tester Instrument

Product Details:

Place of Origin: DONGGUAN
Brand Name: KINGPO
Certification: iso9001
Model Number: HD-RC-001

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: 100*100*100CM
Contact Now

Detail Information

Power: Electronic,Hydraulic Warranty: One Year
Weight: 150kg Product Name: Valve Test Equipment,Electrical Safety Laboratory Testing Equipment
Power Supply: 220V 50Hz
High Light:

Iphone Rolling Tester Instrument

,

Iphone Roller Tester

Product Description

HD-RC-001 roller rolling tester

Iphone Roller Rolling Tester Instrument 0

Instrument description:

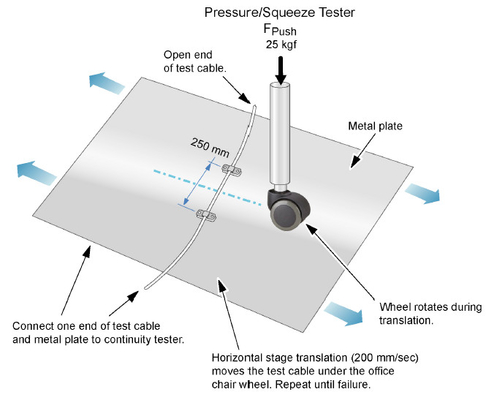

This instrument is designed and processed according to the customer's DC line test standard 080-1276- K, which is mainly used to detect the rolling ability of DC wire against seat casters. The casters of the simulated office seats are repeatedly rolled on the wires to judge the times life of the wires to resist rolling. Using motor drive, the instrument has the function of judging bad products. When the product is rolled, the wire shield layer or conductor is connected with the metal plate, the instrument stops automatically, maintains and records the rolling times, and the acousto-optic alarm output.



Main technical parameters:

  • Control system: touch screen +PLC+ servo motor
  • Metal plate moving speed :200 mm/s
  • Metal plate size :30 cm x 60cm (12inches x 24inches)
  • Rolling weight :25 kg( subject to demand)
  • Compaction times :0~99999
  • Rolling wheel requirements: office seat wheel ,360 degree rotation
  • Judging method: low voltage signal current judgment
  • Eligibility / failure criteria: continuous rolling 1250 times without short circuit with metal plane, or its own open circuit is qualified, otherwise it is failure.
  • Fixture Center Width :250 mm

10, Electricity: AC 22V 50Hz 500W:

Size :850 mm×600 mm×750 mm( wide × deep (high)









HD-CP-001 Cable Pinch Tester ,Cable Extrusion Testing Machine



Instrument description:

This instrument is designed and processed according to Chapter 7.8 of the APPLE DC line test standard 080-1276- K, which is mainly used to detect the anti-clamping and crushing ability of DC wire. Simulate the damage of wires after being squeezed by sharp objects such as drawers, doors or tables.

Main technical parameters:

  • The drop height :0-200 mm adjustable, and the system can select 90 mm as the fixed drop height of the standard for easy operation (the upper surface of the wire is from the impact surface, which can be changed according to the demand of the wire)
  • The parallel distance between the surface of the extruded element and the surface of the fixed end of the sample is :1-10 MM adjustable, and the default parallel distance from the factory is 2 MM( this standard requirement).
  • Extrusion element weight (including extrusion block and additional weight):770 g
  • Extrusion element material: SKD11 abrasive steel

         Extrusion element chamfer :0.1 MM.

Iphone Roller Rolling Tester Instrument 1

HD-CI-001 Cable Impact tester



Instrument description



This instrument is designed and processed according to the APPLE DC line test standard 080-1276- K, which is mainly used to detect the ability of DC wire to be impacted by sharp objects. Simulate sharp objects fall on the wire to see if the wire is damaged.



Main technical parameters:

  • Arm weight :360 g
  • Impact unit weight: g 590
  • General weight of pendulum :950 g( Remove shaft)
  • Initial impact distance :25.4 cm (10inch, subject to demand adjustment)
  • Initial impact angle :17°(subject to demand adjustment)
  • Impact distance increase or decrease :2.5 cm (1inch)
  • Fuselage size: mm 370,570,1035
  • Wire holder: Adjustable front and back to fit different diameter wires
  • Wire Fixture: Engineering Plastic Processing
  • Impact material: SKD11 die steel

Operation mode: manual operation, wire without load

Iphone Roller Rolling Tester Instrument 2





HD-6159E Apple Charging Line Rotating Test Instrument



Iphone Roller Rolling Tester Instrument 3Iphone Roller Rolling Tester Instrument 4
