Product Description

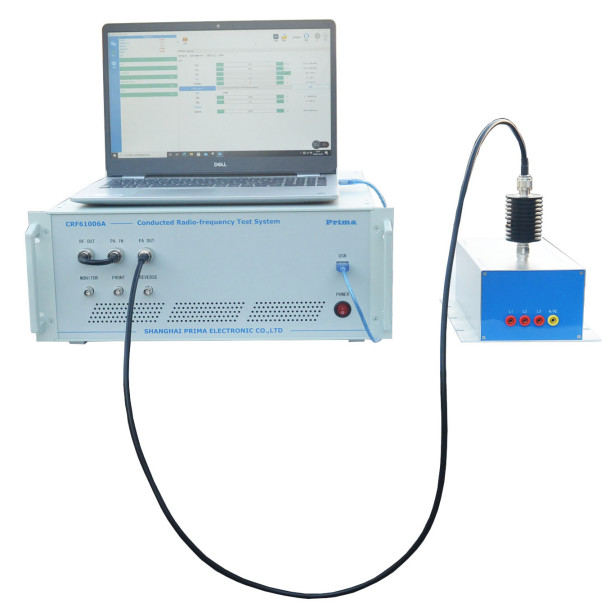

Test System for Conductive Harassment and Disturbance of RF Field Induction CRF61006A/B
CRF61006A /B radio frequency conduction immunity test system, according to the IEC61000-4-6 standard integrated conduction sensitivity test system, meet the CS114. of GB /T17626.6/ automotive electronic BCI/ national military standard
Meet the criteria:
IEC /EN 61000-4-6GB/T17626.6ISO11452-4MIL-STD461E
Product characteristics:
■ frequency range 150 kHz-230MHz, frequency resolution 1 Hz
■ integrated design, built-in: signal generator, RF power amplifier, function signal generator, directional coupler,
■RF power meter. Each equipment can be used independently.
■ computer control, automatic calibration and testing, output power monitoring during testing.
■ all indicators fully meet the IEC 61000-4-6,ISO 11452-4,GJB152A-CS114 standards.
■ easy for users to test in the development process, to ensure that the product problem frequency point and level.
■ internal modulation: AM:1Hz-100kHz,0-100%;PM:lHz-l00kHz,10-90% duty cycle.
■ complete coupling decoupling network [CDN]] accessories, support high current injection method and direct injection method test, optional
■ current monitoring probe, support closed-loop test method.
Technical parameters
| System model | CRF61006A | CRF61006B |
| Power amplifier | 80W | 35W |
| Output impedance | 50Ω | |
| Voltage Standing Ratio | ≤1.2 | |
| Signal source | ||
| Frequency | 9 k ~3 GHz | |
| Output level | - dBm 60-10 | |
| Non-modulated signals | Continuous wave | |
| Frequency resolution | 0.23 Hz | |
| Frequency temperature stability | ±0.5 ppm | |
| harmonics | ≤-30 dBc | |
| Unharmonic | ≤-50 dBc | |
| Output power range | -120 dBm ~0 dBm (9 kHz ~500 kHz);-120 and 10 dBm (500) | |
| Power accuracy | dB ±1.0 | |
| Resolution | 0.1 dB | |
| Internal modulation source (LF) | sine wave 0.1 Hz ~500 kHz; square wave 0.1 HzHz ~20 kHz; triangle wave / sawtooth wave 0.1 Hz ~100 | |
| Amplitude modulation (AM) | modulation depth 0%~100%; | |
| FM (FM) | Modulation rate 1 Hz ~25 KHz | |
| Phasing (ФM) | Modulation phase 0°~360°; | |
| Duty cycle | 1-100% | |
| Output Interface | N (mother) | |
| Power amplifier | ||
| Output frequency | 150 kHz ~230 MHz | |
| Maximum output power | +44 dBm/80W | |
| harmonics | dBc <15 | |
| Gain | 51 dB±1 dB (100W) | |
| VSWR | <1.5:1 | |
| Output impedance | 50Ω | |
| Output Interface | N (mother) | |
| Power meter (built-in tee) | ||
| Input frequency | 9 kHz ~3 GHz | |
| Test level | -40 dBm ~+30 dBm; voltmeters :-40 dBm ~+30 dBm | |
| Precision | ±0.5 dB | |
| Input interface | N( mother) | |
| VSWR | <1.1:1 | |
| 150 k-230MHz CDN coupled decoupling network accessories | ||
| Power cord | M1,M2,M2,M3,M2+M3,M4,M5: meet the requirements of single-phase / three-phase power supply, maximum current 16 A/32A | |
| Unshielded balance line | T2,T4,T8 | |
| Unshielded non-equilibrium line | AF2,AF4,AF8 | |
| Series shielded cable | S1,S1/75,S2,S4,S9,S25 | |
| Other | RJ11,RJ11S,RJ45,RJ45S,USB-C,USB-P | |
| Selection of Current Injection Clamp Accessories | ||
| Electromagnetic injection clamp | The frequency range is 10 kHz ~1 GHz, the coupling factor <3 dB (150 kHz ~500 MHz), | |
| System-wide configuration | ||
| Software | Windows XP ,Windows 7 support | |
| Control interface | USB | |
| Output Interface | N joints | |
System configuration:
Single-phase networkCRF-CDN-M116CRF-CDN-M216CRF-CDN-M316
Three-phase networkCRF-CDN-M 416CRF-CDN-M 516
Network parameters
| 150 k-230MHz CDN coupled decoupling network accessories | |
| Power cord | M1,M2,M2,M3,M2+M3,M4,M5: meet the requirements of single-phase / three-phase power supply, maximum current 16 A/32A |
| Unshielded balance line | T2,T4,T8 |
| Unshielded non-equilibrium line | AF2,AF4,AF8 |
| Series shielded cable | S1,S1/75,S2,S4,S9,S25 |
| Other | RJ11,RJ11S,RJ45,RJ45S,USB-C,USB-P |
Electromagnetic injection clampZN23203
Electromagnetic injection clamp parameters
| Selection of Current Injection Clamp Accessories | |
| Electromagnetic injection clamp | The frequency range is 10 kHz ~1 GHz, the coupling factor <3 dB (150 kHz ~500 MHz), |
