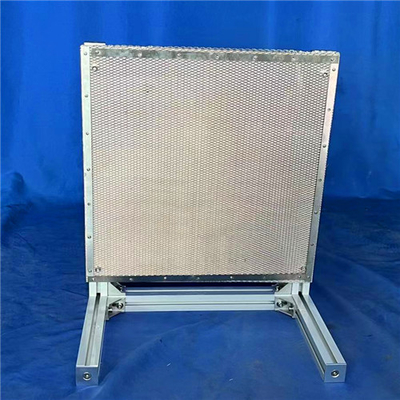

Expanded metal spacer , IEC 60598-1 clause 9.2 expanded metal spacer
Product Details:
| Place of Origin: | China |
| Brand Name: | KingPo |
| Certification: | Calibration Certificate |
| Model Number: | IEC 60598-1 clause 9.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | To be quoted |
| Packaging Details: | safety carton pack or plywood box |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 pcs per month |
|
Detail Information |
|||
| Place Of Origin: | Guangdong,China(mainland) | Standard: | IEC 60598-1 Clause 9.2 |
|---|---|---|---|
| High Light: | expanded metal spacer,IEC 60598-1 clause 9.2 expanded metal spacer,IEC 60598-1 expanded metal spacer |
||
Product Description
IEC 60598-1 clause 9.2 expanded metal spacer , Tests for ingress of moisture
Conform to IEC 60598-1 clause 9.2
Where connection is made by a plug or a similar device, then this shall be regarded as part of the complete luminaire and shall be included in the tests and similarly for any separate controlgear.
For tests of 9.2.3 to 9.2.11, a fixed luminaire intended for mounting with its body in contact with a surface shall be tested with an expanded metal spacer interposed between the luminaire and the mounting surface. The spacer shall be at least equal in overall size to the projection of the luminaire, and have dimensions as follows:
Longway of mesh 10 mm to 20 mm
Shortway of mesh 4 mm to 7 mm
Strand width 1.5 mm to 2 mm
Strand thickness 0.3 mm to 0.5 mm
Overall thickness 1.8 mm to 3 mm
Specifications
1. Material: stainless steel
2.Longway of mesh 10 mm to 20 mm
Shortway of mesh 4 mm to 7 mm
Strand width 1.5 mm to 2 mm
Strand thickness 0.3 mm to 0.5 mm
Overall thickness 1.8 mm to 3 mm
3.size:500*500mm
The data I measured are as follows:
1.Longway of mesh 10 mm to 20 mm
Measured value:12.65mm
2.Shortway of mesh 4 mm to 7 mm
Measured value:5.12mm
3.Strand width 1.5 mm to 2 mm
Measured value:1.6mm
4.Strand thickness 0.3 mm to 0.5 mm
Measured value:0.42mm
4.Overall thickness 1.8 mm to 3 mm
Measured value:2.31mm
TESTING AND MEASURING EQUIPMENT/ALLOWED SUBCONTRACTING
IEC 60598-1:2014, A1:2017 Edition 8.1
Luminaires – Part 1: General requirements and tests
