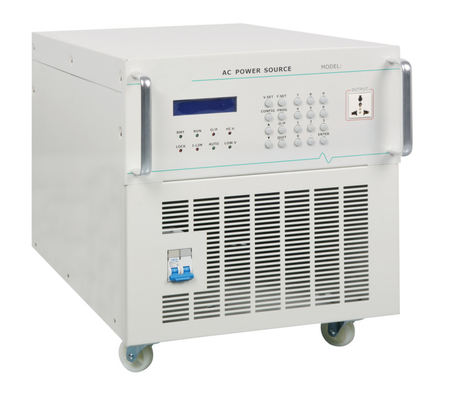

Linear Standard AC Power Source With Low Distortion Interference

Product Details:

Place of Origin: DONGGUAN
Brand Name: KINGPO
Certification: iso9001
Model Number: APA1000L

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: 100*100*100CM
Contact Now

Detail Information

Power: Electronic,Hydraulic Warranty: One Year
Weight: 130kg Product Name: Valve Test Equipment,Electrical Safety Laboratory Testing Equipment
Power Supply: 220V 50Hz
High Light:

Linear Standard AC Power Source

,

Low Distortion Interference AC Power Source

,

Low Distortion Interference Linear Power Source

Product Description

Linear Standard AC Power Source APA1000L Series



Product parameter
• Input voltage range: Single phase 195~245V
Three phase 340V~420V
• Input frequency range: 50/60Hz±5%
• Output voltage range: Single phase 0~300V (0~600V Match)
Three phase 0~520V (0~1040V Match)
• Output frequency range: 45~500Hz
• Waveform Distortion≤0.3% Load Regulation≤0.5% Frequency stability≤0.01%
• Three-phase phase angle can be adjusted (0-120 degrees), each phase in use can independently adjust voltage and frequency, and independently display voltage and frequency linear climb and drop editing test function, can do voltage and frequency gradient and interrupt test, and has independent compensation function of impedance, can simulate various test and test power supply of power grid.

Product details

High Performance
• Low Distortion Interference, Complete Input/Output Isolation
• The maximum single-phase capacity can reach 15KVA and the three-phase power supply can reach 45KVA.
• Remote voltage feedback function to ensure the consistency of test point voltage value and setting value
• Voltage and current measurements are based on high precision ADC AC sampling and digital real value calculation.
• A single chip computer (D/A circuit) is used to collect voltage and current waveform data directly. contains RS232 or RS485 interface, communicate with computer.
• Built-in soft start device can easily start motor, compressor and other high starting current load
• The central processing unit is used to control the opening and closing of logic circuits. The one-to-one driving method is beneficial to disperse heat dissipation of power components and redundant design in structure.
• Inspection of temperature and humidity in the machine, intelligent ventilation and are faction in wet weather to ensure the normal use of power supply

Humanized design
• LCD Display parameters: voltage, current, power, power factor, frequency, peak current and time
• LED Displaying voltage, current, frequency, power ( power factor)
• A group of test groups can execute 35 test points (different voltage0~300V, frequency45~500Hz, time 0.1S-999.9H settings), and can do continuous cycle (0~99999999 times) testing.
• Power supply multi-point real-time sensor monitoring, running normal code and fault code screen display, fully control the power supply status.
• The parameter calibration is accomplished by open software, and different from other power sources, the potentiometer and adjustable resistance are also adjusted in the circuit.
• Wide range of voltage and frequency regulation, digital key input, independent display of three-phase voltage and line voltage
• Digital password lock, test data security and prevent important test data from being modified by misoperation

APA1000L Single phase series

Model 1000L 1001L 1002L 1003L 1005L 1010L 1015L
Output Capacity 500VA 1KVA 2KVA 3KVA 5KVA 10KVA 15KVA
Input Power 1Ø2W+G 110V/220V±10%  220V±10% 50/60Hz±5%
Output Frequency 50Hz/ 60Hz/ 45~500Hz
Frequency stability 0.01%
Output Voltage 0~150V/0~300V(AUTO)
Output current 4.2/2.1 8.4/4.2 16.8/8.4 25/12.5 42/21 84/42 126/63
Load Regulation ≤0.5%
Waveform Distortion ≤0.3%
Meter Display LED/LCD Display Voltage, Current, Frequency and Power (Peak Current Time Power Factor)
Protective Device Overload, Overcurrent, Temperature, Short Circuit, Undervoltage Protection and Alarm
Working condition ambient temperature 0~40°C   relative humidity10~90%

APA1000LS Three phase series

Model 1006LS 1010LS 1015LS 1020LS 1030LS 1045LS
Output Capacity 6KVA 10KVA 15KVA 20KVA 30KVA 45KVA
Input Power 1Ø2W+G 220V±10% 3Ø4W+G 220V/380V±10%  50/60Hz±5%
Output Frequency 50Hz/ 60Hz/ 45~500Hz
Frequency stability 0.01%
Output Voltage 相电压 0~150V/0~300V (AUTO)
Output current 16.8/8.4 27.5/13.75 42/21 55.6/27.8 84/42 126/63
Load Regulation ≤0.5%
Waveform Distortion ≤0.3%
Meter Display LED/LCD Display Voltage, Current, Frequency and Power (Peak Current Time Power Factor)
Protective Device Protection and alarm of short circuit, short voltage and short phase with overload, over current and over temperature
Working condition ambient temperature 0~40°C   relative humidity10~90%



Linear Standard AC Power Source With Low Distortion Interference 0
Customized Services
To fulfill the diversified needs for clients, we gain experience of research and achieve flexible production.
Standard Mastery
Extensive experiences of customized business and understanding of each standard.
Thorough Services
Serving with a grateful, professional and honorable attitude, we established our own independent service branch to provide you with long-term value adding services.
Experienced R&D Team
Extensive experiences of Research and Development for mechanics, electronics, optics, thermology, IT technology and customer services.
Overall Matching
Solutions provider for laboratories based on standards or functions required.
Company Profile
KINGPO company extensive research and development experiences regarding safety performance testing, electromechanical properties testing, fireproof and flame retardant performance testing, waterproof performance testing and life testing for the household electrical appliances, electronic and electrical products, electrical accessories, building components and materials, wire and cable, IT computer and communications, children's toys and textiles, power simulate load and capacitor and so on.
Also manufacture the testing equipment for all kind of products, sampling laboratory and line automatic detecting system.
With the nationally recognized testing instrumentation production license. More than 1000 kinds of products.
packaging & shipping
Packaging: Wooden Box
Shipping: ocean
Port: Shenzhen port or Customer's required
Payment & Delivery
Payment method: T/T, money Gram, Paypal, Western Union
Payment currency: USD, HKD, CNY
Delivery: 10-40 days received the deposit.
