PCL Control Led Light Tester Luminaire Adjustment Test Device Easy Operation

Product Details:

Place of Origin: China
Brand Name: KingPo
Certification: Calibration Certificate

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 50 pcs per month
Contact Now

Detail Information

Standard: GB/7000.1-2002 Chapter 4.14. And EN60598-1:2000 Suitable Luminaire: Floodlight Luminaire
Bending Angle: 0~180º Adjustable Test Frequency: 1~10 T/ Min
Test Time: 0~999999times Adjustable Working Voltage: AC220V 50HZ
High Light:

led testing equipment

,

led lamp testing equipment

Product Description

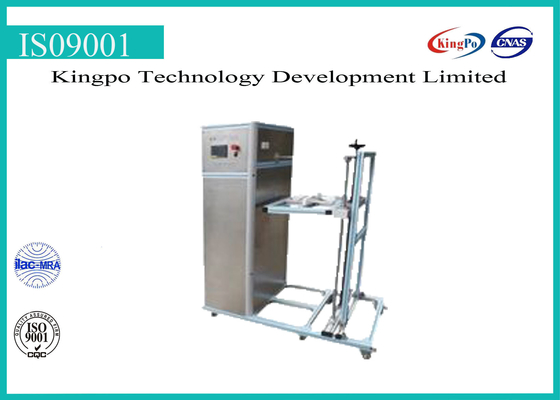

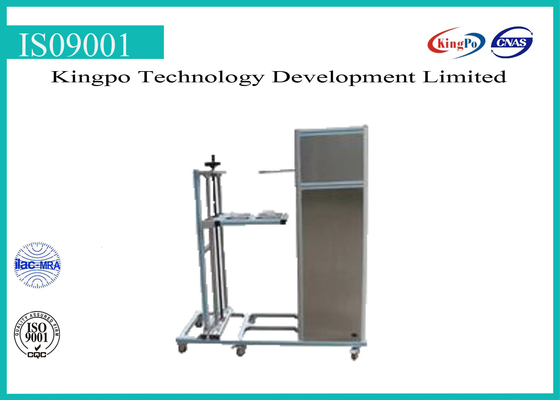

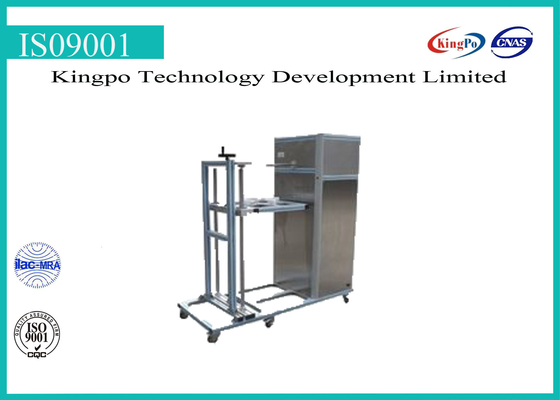

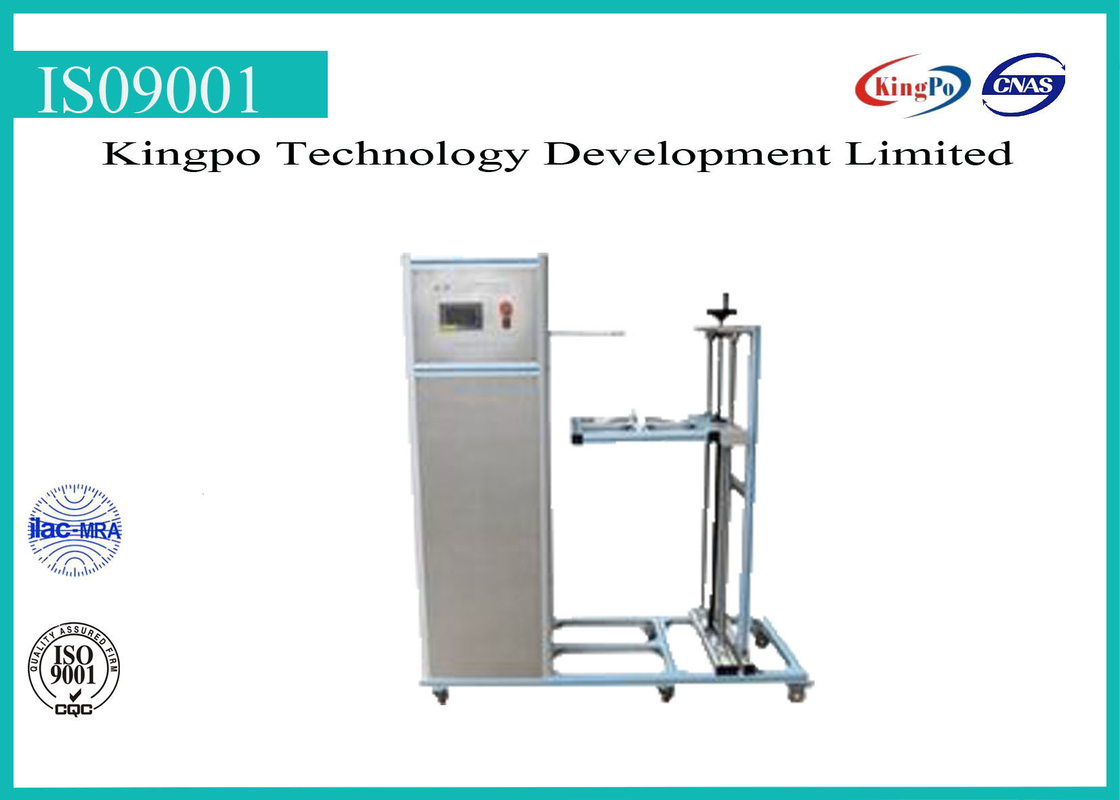

Luminaire Adjustment Test Device





Meet standards of GB/7000.1-2002 Chapter 4.14. And EN60598-1:2000



Function:



Applied to testing adjustment device with soft cable and wire built in to check if its shares of conductor breakdown is in excess of 50% after continuous bending and if there is serious damage in insulation layer.



Product feature:adopts PCL control and LCD panel operation with adjustable test angle and speed;power focal positioning;bend the axis and luminaire swivel centre can achieve concentric rotation;accurate limit protection won’t damage luminaire and fixture;if conductor breakdown results in cutting off,panel will display current number and continuously finish the test with alert notification;has stable functions and easy operation.



Technical Parameters:



Suitable Luminaire: floodlight luminaire like painting used lamp,showcase soptlight,desk lamp,floor lamp,etc

Bending angle: 0~180º adjustable(standard:135º at a vertical direction on both sides)

Test frequency: 1~10 t/ min

Test number: 0~999999times adjustable

(one time means backing to the beginning from one end to another within adjustment range;can achieve angle changes at a swing speed of 600t/h)

Working voltage: AC220V 50HZ
