Electrical Safety Test Equipment Splash Tester For IEC60335-2-24
Product Details:
| Place of Origin: | China |
| Brand Name: | KingPo |
| Certification: | Calibration Certificate |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | To be quoted |
| Packaging Details: | safety carton pack or plywood box |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Standard: | IEC 60335-2-24 | Displacement Block Volume: | 140 Ml ± 5 Ml |
|---|---|---|---|
| Displacement Block Mass: | 200 G ± 10 G | Displacement Block Dimensions: | 112 Mm By 50 Mm By 25 Mm |
| Approximate Overall Dimensions: | 15.5 Cm By 7.3 Cm By 6.3 Cm | Material: | Nickel Plated Brass |
| High Light: | abrasion resistance test machine,electrical safety analyzer |
||
Product Description

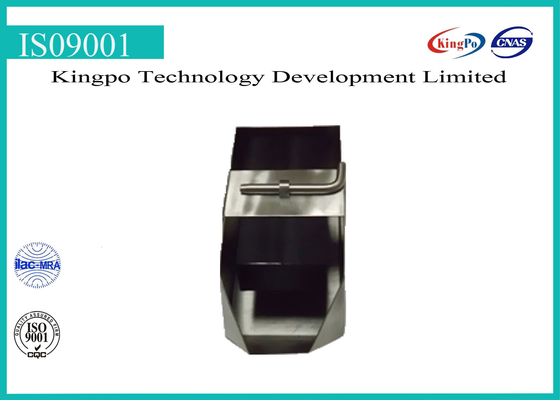

Splash Tester for IEC60335-2-24
Water Spillage Apparatus for testing refrigerating appliances.
It consists of the vessel, removable bridge support, release pin, and displacement block.
Specification
-
Displacement block volume: 140 ml ± 5 ml.
-
Displacement block mass: 200 g ± 10 g.
-
Displacement block dimensions: 112 mm by 50 mm by 25 mm.
-
The dimensions of the vessel are inside dimensions as defined in standard IEC 60335-2-24. Tolerance on inside dimensions is ±2 mm.
-
Approximate overall dimensions – 15.5 cm by 7.3 cm by 6.3 cm high.
-
Material is nickel plated brass.
