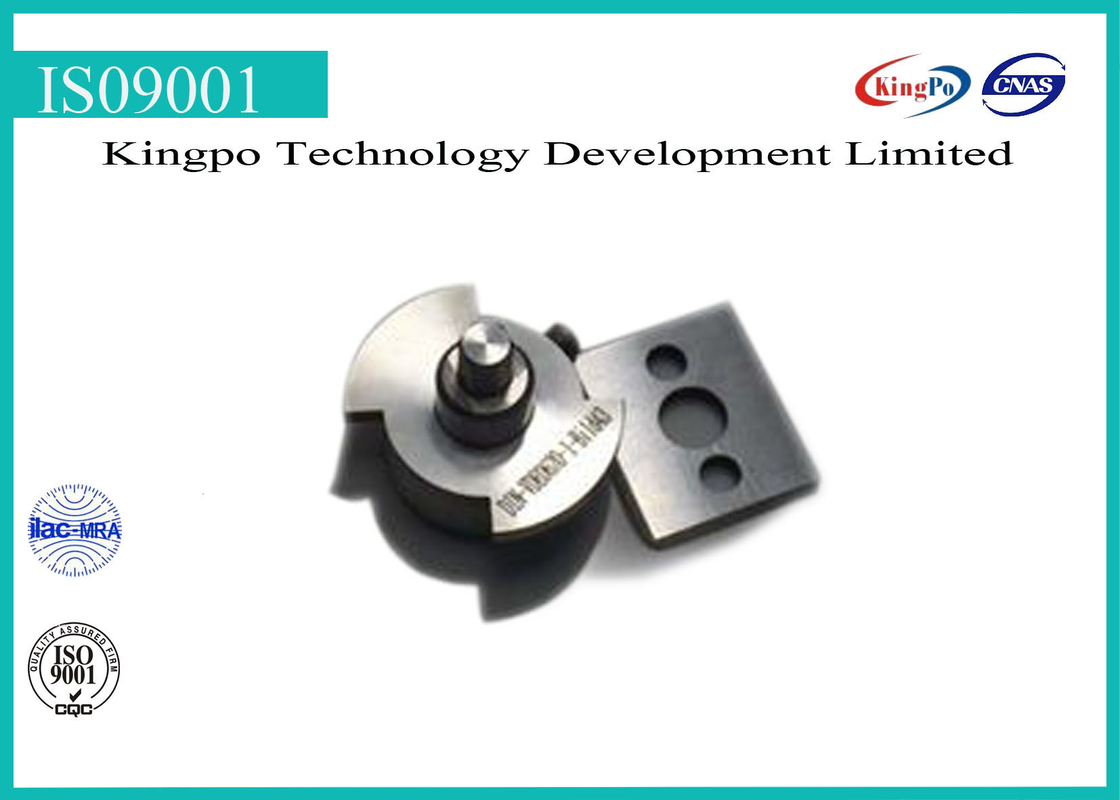

DIN-VDE0620-1 Plug and Socket Gauge

Product Details:

Place of Origin: China
Brand Name: Kingpo
Certification: Calibration Certificate

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: Plywood
Delivery Time: 15 work days
Payment Terms: T/T
Contact Now

Detail Information

DIN-VDE0620-1-Lehre1: Socket R Gauge (5.0,5.8,6.0) DIN-VDE0620-1-lehre2: Minimum Opening Width And Minimum Pull Out Force Of Contact Jack
DIN-VDE0620-1-Lehre3: Bipolar Plug Force DIN-VDE0620-1-Lehre4: Bipolar Plug With Earthing Contact Insertion Flanking Force
DIN-VDE0620-1-Lehre5: To Test The First Time Contact Closure Interval Gauge DIN-VDE0620-1-Lehre6: Pin Diameter
High Light:

power socket tester

,

hardness testing equipment

Product Description



DIN-VDE0620-1 Plug and Socket Gauge







Figure number Project name Number
DIN-VDE0620-1-Lehre1 Socket R gauge (5.0,5.8,6.0) 3
DIN-VDE0620-1-lehre2 Minimum opening width and minimum pull out force of
contact jack
2
DIN-VDE0620-1-Lehre3 Bipolar plug force 1
DIN-VDE0620-1-Lehre4 Bipolar plug with earthing contact insertion flanking force 1
DIN-VDE0620-1-Lehre5 To test the first time contact closure interval gauge 1 sets of /4 parts
DIN-VDE0620-1-Lehre6 Pin diameter 1 sets of /4 parts
DIN-VDE0620-1-Lehre7 Pin distance 1 /2 combination
DIN-VDE0620-1-Lehre8 The maximum opening width of the contact jack 1
DIN-VDE0620-1-Lehre9 Interchangeability test plug gauge 1
DIN-VDE0620-1-Lehre10-A The impossibility of the contact of the single pole contact hole A 1
DIN-VDE0620-1-Lehre10-B Unipolar contact hole contacts not the possibility of B 1
DIN-VDE0620-1-Lehre11 No bipolar plug ground contact can not be inserted 1
DIN-VDE0620-1-Lehre12 The possibility of unipolar insertion plug (including 250 grams
and 1000 grams of weight and the positioning rack)
1 sets of /4 parts
DIN-VDE0620-1-Lehre13 After normal operation test of live parts check protection
inside the door can not touch the probe
1 sets
DIN-VDE0620-1-Lehre14 On both sides of the ground test 1
DIN-VDE0620-1-Lehre15 Live parts check protection inside the door and strengthen the
protection of live parts socket can not touch with the probe
1 sets
DIN-VDE0620-1Fig15 Gauge 1
DIN-VDE0620-1-Lehre16a The maximum pullout force plug (16a) 1
DIN-VDE0620-1-Lehre16d The maximum pullout force plug (16d) 1
DIN-VDE0620-1-Lehre17 Lehre17 1
DIN-VDE0620-1-Lehre18 Lehre18gauge 1
DIN-VDE0620-1-EN50075 Interchangeability test plug gauge 1
DIN-VDE0620-1-49440-L1 49440-L1- on the IPX4 test socket 1
DIN-VDE0620-1-49440-L2 49440-L2- on the IPX4 test socket 1
DIN-VDE0620-1-49440-L1-L2 Bipolar grounded plug diameter gauge and test equipment 1 sets of /3 parts
DIN-VDE0620-1-Bild15 Test pressure device 1 sets
DIN-VDE0620-1-Bild14 Bild14 gauge 1 sets
DIN-VDE0620-1-Bild43 Bild43 gauge 1 sets of /2 parts
