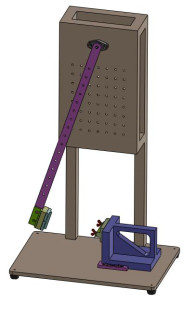

APPLE'S Standard 080-1276-K Clause 7.7 DC Cable Impact Tester Simulating DC Wires To Be Impacted By Sharp Object

APPLE'S Standard 080-1276-K Clause 7.7 DC Cable Impact Tester Simulating DC Wires To Be Impacted By Sharp Object

APPLE'S Standard 080-1276-K Clause 7.7 DC Cable Impact Tester Simulating DC Wires To Be Impacted By Sharp Object

Product Details:

Place of Origin: China
Brand Name: KingPo
Certification: Calibration certificate
Model Number: HD-CI-001

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: To be Quoted
Packaging Details: satety plastic tool box or plywood package.
Delivery Time: 25
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Swing Arm Weight: 360g Impact Device Weight: 590g
Total Weight Of Pendulum: 950g (removing The Shaft) Initial Impact Distance: 25.4cm (10inch, Can Be Adjusted According To Demand)
Initial Impact Angle: 17° (can Be Adjusted According To Demand) Increase And Decrease Of Impact Distance: 2.5cm (1 Inch)



APPLE's Standard 080-1276-K Clause 7.7 DC Cable Impact Tester for Testing Impact Resistance of DC Wires By Sharp Object



Description:

This instrument is designed and processed according to the requirements of Chapter 7.7 of APPLE's DC line test standard 080-1276-K. It is mainly used to test the ability of DC wires to be impacted by sharp objects. Simulate sharp objects and drop them on the wires to see if the wires are damaged.



Technical Parameters:

1. Swing arm weight: 360g

2. Impact device weight: 590g

3. Total weight of pendulum: 950g (removing the shaft)

4. Initial impact distance: 25.4cm (10inch, can be adjusted according to demand)

5. Initial impact angle: 17° (can be adjusted according to demand)

6. Increase and decrease of impact distance: 2.5cm (1 inch)

7. Body size: 370*570*1035mm

8. Wire fixing seat: adjustable front and rear to adapt to different diameter wires

9. Wire fixing fixture: processing with engineering plastics

10. Impact device material: SKD11 die steel

11.Operating mode: manual operation, the wire is operated without load
