Energy Saving Mask Tester Electrical Safety Test Equipment Esalt Aerosol Generator
Product Details:
| Place of Origin: | China |
| Brand Name: | KingPo |
| Certification: | Calibration Certificate |
| Model Number: | KP-1310 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | to be quoted |
| Packaging Details: | safety carton pack or plywood box |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10 units/month |
|
Detail Information |
|||
| Working Pressure: | (60~200)kPa | Applicable Air Volume Range: | (30~1000)L/min |
|---|---|---|---|
| Host Size: | (length400×wide400×high900)mm | Working Power: | AC220V±10%，50/60Hz |
| Host Power Consumption: | ＜2000W | ||
| High Light: | abrasion resistance test machine,tv signal tester |
||
Product Description

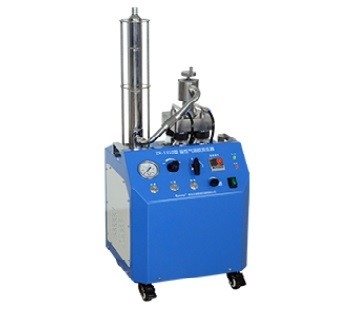

ZR-1310model salt aerosol generator
Product introduction
ZR - 1310 salt aerosols generator is the use of collison nozzle will have a certain specific concentration NaCl solution after spray drying, particle size and concentration of aerosol dedicated instruments, built-in clean air compressors, dryers and more nozzle valve, electrostatic neutralizer, output aerosol concentration in 100 L/min to 1000 L/min air flow, be able to reach 100 mu g/L ~ 10 mu g/L, output aerosol particle size range of 0.02 ~ 2 microns,It is applicable to the detection of masks, filter materials and hepa in medical instrument inspection institute, disease control center, hospital and hepa filter manufacturer.
Executive standard
EN149
GB/T 32610-2016 Technical requirements for daily protective masks
GB/2626-2006 Respirator - self - imbibition filter respirator against particulate matter
GB/T6165-2008 Performance test method for hepa filters - efficiency and resistance
Technical characteristics
Independent and external dual high-pressure air source design, stable airflow, particle output balance;
The range of aerosol particle size is large, and the sub-micron and micron particle sizes can be produced.
The aerosol concentration can be adjusted and the adjustable range is large.
Produce electrostatic neutralization of particulate matter, reduce aerosol transport loss, ensure accurate detection results.
Technical indicators
| main parameters | parameters |
| Working pressure | (60~200)kPa |
| Applicable air volume range | (30~1000)L/min |
| Suspended particle concentration | 100μg/L At 100L/min flow rate |
| Suspended particle concentration | 10μg/L At 1000L/min flow rate |
| Aerosol particle size range | (0.02~2)μm |
| With the wind flow | (30~100)L/min |
| Initial wind temperature | (80~120)℃ |
| Produce type | (2~4)个CollisonSpray nozzle drying |
| Working solution | A bottle of 65 ml |
| Working solution concentration | 10%~30% |
| Instrument noise | ＜50dB(A) |
| Host size | (length400×wide400×high900)mm |
| Working power | AC220V±10%,50/60Hz |
| Host weight | About 15kg |
| Host power consumption | ＜2000W |
