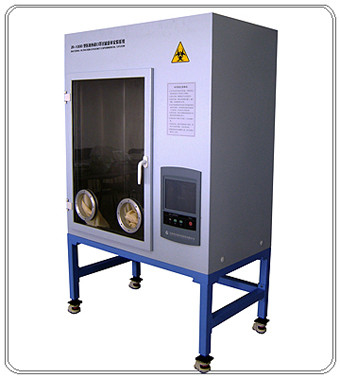

Mask Bacteria Filtration Efficiency Detector AC 220V±10% 50Hz Good Atomization Effect

Mask Bacteria Filtration Efficiency Detector AC 220V±10% 50Hz Good Atomization Effect

Mask Bacteria Filtration Efficiency Detector AC 220V±10% 50Hz Good Atomization Effect

Product Details:

Place of Origin: China
Brand Name: KingPo
Certification: Calibration Certificate
Model Number: KP-1000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: to be quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 10 units/month
Contact Now
Detailed Product Description
Working Power: AC 220V±10% 50Hz Stent Size: (length1180×wide650×high600)mm,Height Adjustable Within 100mm
Host Weight: About250kg Machine Power Consumption: <1500W

1 summarize

1.1 Product introduction
ZR - 1000 type mask bacteria filtration efficiency key performance indicators (BFE) detector not only conforms to the requirements of medical surgical masks technology YY0469-2011 appendix B in the test method for filter efficiency (BFE) bacteria first B. 1.1 the requirement of test instruments, but also conforms to the American society for testing material ASTMF2100, ASTMF2101, the requirements of the European EN14683 standards, innovative improvements were made on the basis of this, with double pneumatic contrast sampling method at the same time, improve the precision of sampling,It is suitable for measuring and testing departments, scientific research institutes, mask manufacturers and other relevant departments to test the performance of mask bacterial filtration efficiency.

1.2 Product feature

u Negative pressure test system to ensure the safety of operators;

u Built - in peristaltic pump in negative pressure cabinet, A, B two - way, six Andersen;

u The peristaltic pump flow can be set;

u The flow rate of bacteria-night spray of special microorganism aerosol generator can be set.

u Good atomization effect;

u Embedded high speed industrial microcomputer control;

u 10.4 inches industrial high brightness color touch screen;

u USB interface, support U disk data storage;

u Cabinet built-in high brightness lights;

u Built-in leakage protection switch to protect the safety of operators;

u Cabinet inner stainless steel whole processing molding, outer plastic spray cold rolled plate,Heat preservation and flame retardant between inner and outer layers;

u The front switch type glass door is convenient for the experimenter to observe and operate.Detachable bracket, adjustable bracket height;

u Supporting and moving dual purpose casters.

1.3 Execution standard

Q/0212 ZRB003-2015 Mask bacterial filtration efficiency (BFE) detector


1.4 Technical indicators

main parametersparametersresolutionMaximum permissible error
Sampling flow of route A28.3L/min0.1L/min±2.5%
Sampling flow of route B28.3L/min0.1L/min±2.5%
Spray flow(8~10)L/min0.1L/min±5.0%
Peristaltic pump flow(0.006~3.0)mL/min0.001ml/min±2.5%
Front pressure of flow meter A(-20~0)kPa0.01kPa±2.5%
Front pressure of flow meter B(-20~0)kPa0.01kPa±2.5%
Spray flowmeter front pressure(0~300)kPa0.1kPa±2.5%
Negative chamber pressure(-90~-120)Pa0.1Pa±2.0%
Working temperature(0~50)℃
chamber negative pressure(-50~-200)Pa
Data storage capacity>100000group
Hepa filter characteristicsFiltration efficiency of particles above 0.3um≥99.99%
Median mass diameter of aerosol generatorMean particle diameter (3.0±0.3)μm,Geometric standard deviation≤1.5
Double-channel 6-stage Anderson sampler captures particle sizeⅠ级>7μm,Ⅱ级(4.7~7)μm,Ⅲ级(3.3~4.7)μm,Ⅳ级(2.1~3.3)μm,Ⅴ级(1.1~2.1)μm,Ⅵ级(0.6~1.1)μm
Fog chamber specifications(length600×diamter85×thick3)mm
Total number of positive quality control sampler particles(2200±500)cfu
Ventilation flow rate of negative pressure cabinet≥5m3/min
Dimensions of negative pressure cabinet door(length1000×wide730)mm
Size of the host(length1180×wide650×high1300)mm
Stent size(length1180×wide650×high600)mm,Height adjustable within 100mm
Working powerAC220V±10%,50Hz
Instrument noise<65dB(A)
The weightAbout250kg
Machine power consumption<1500W



7 Packing list

NumberProductUnitQuantityRemark
1The host BFE test systemset1
2Level 6 Anderson samplerpcs2
3spraypcs1
4stentsset1
5carry handlepcs4
6Ac power cordpcs13m
7silicone tubeφ18x24m1
8silicone tubeφ8x12m1
9silicone tubeφ6x10m2
10silicone tubeφ4x7m1
11silicone tubeφ2.65x5m1
12Product specificationpiece2
13Product certificatepiece1
14Report on sprayer testpiece1
