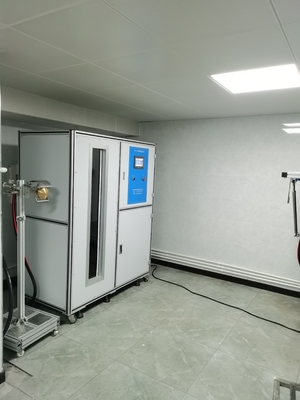

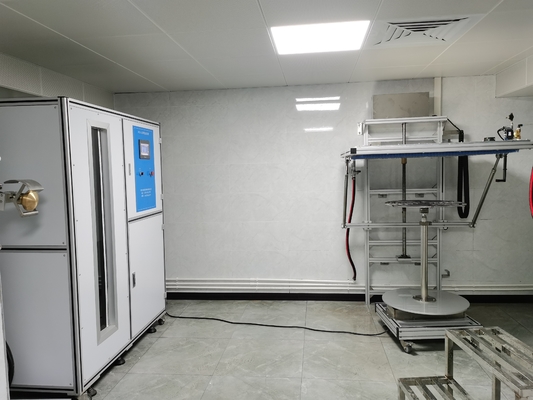

Ingress Protection (IP) Testing equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Kingpo |
| Certification: | Calibration Certificate |
| Model Number: | KP-20653 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | To be quoted |
| Packaging Details: | safety carton pack or plywood box |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Power Supply: | Single Phase AC380V,50Hz | Water Tank Size: | 650×600×1450mm(L*W*H) |
|---|---|---|---|
| Drip Area: | 1000×600mm(L*W*H),customizable | Drip Height: | 200mm～2850mm Adjustable |
| High Light: | Ingress Protection Test Equipment,Single phase IP Testing Equipment,Single phase Water Ingress Testing Equipment |
||
Product Description
IP Standard Codes
- IPX1: Protected against falling water Equivalent to 3-5mm rainfall per minute for a duration of 10 minutes.
- IPX2: Protected against falling water when tilted up to 15 degrees – Same as IPX1 but unit is tested in 4 fixed positions – tilted 15 degrees in each direction from normal operating position.
- IPX3: Protected against spraying water – Water spraying up to 60 degrees from vertical at 10 liters/min at a pressure of 80-100kN/m2 for 5 min.
- IPX4: Protected against splashing water – Same as IPX3 but water is sprayed at all angles.
- IPX5: Protected against water jets – Water projected at all angles through a 6.3mm nozzle flow rate of 12.5 liters/min at a pressure of 30kN/m2 for 3 minutes from a distance of 3 meters.
- IPX6: Protected against heavy seas – Water projected at all angles through a 12.5mm nozzle at a flow rate of 100 liters/min at a 100kN/m2 pressure for 3 minutes from a distance of 3 meters.
- IPX7: Protected against water immersion – Immersion for 30 minutes at a depth of 1 meter.
- IPX8: Protected against water submersion – Equipment suitable for continual submersion in water under conditions as specified by manufacturer.
- IP1X: Protected against solid foreign objects of 50 mm diameter and greater.
- IP2X: Protected against solid foreign objects of 12.5 mm diameter and greater.
- IP3X: Protected against solid foreign objects of 2.5 mm diameter and greater.
- IP4X: Protected against solid foreign objects of 1.0 mm diameter and greater.
- IP5X: Dust-protected – Ingress of dust is not totally prevented, but dust shall not penetrate in a quantity to interfere with satisfactory operation of the apparatus or to impair safety.
- IP6X: Dust-tight – No ingress of dust.

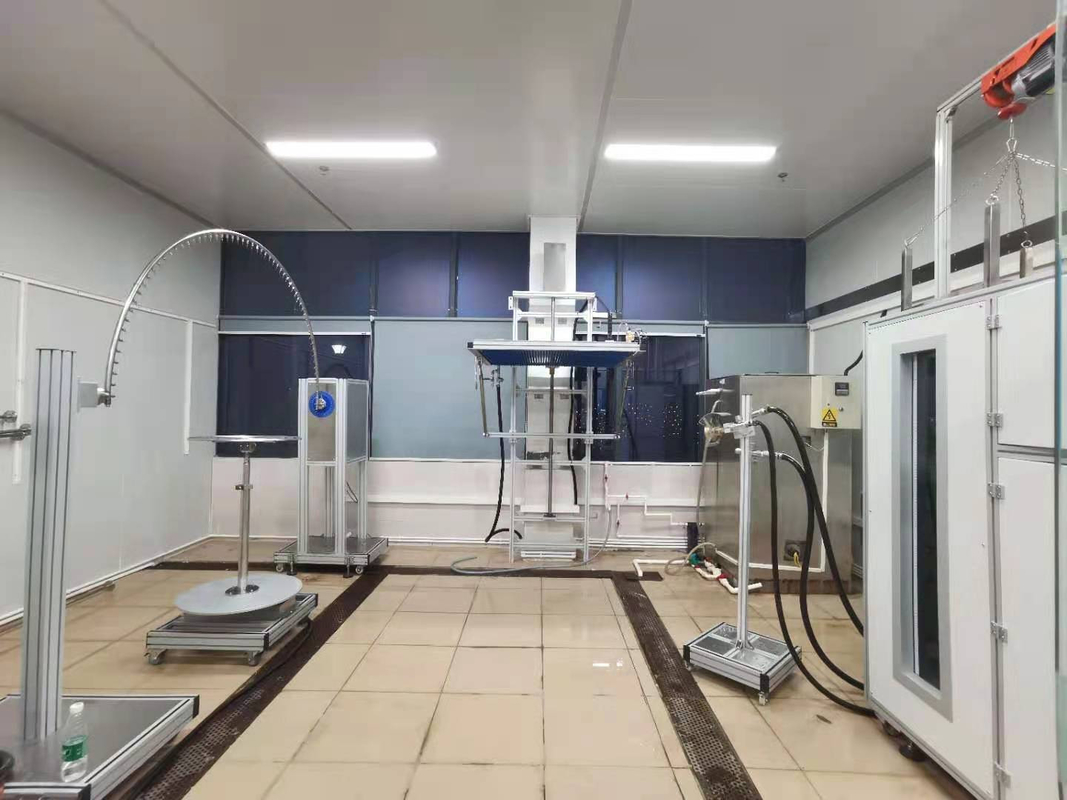

ISO20653 Test Equipment
| Project name | Specification parameters | |||
| Equipment Power Supply Specifications | Equipment power AC380V 50Hz 4kw | |||
| Sample Power Supply Specification | AC220V 16A | |||
| LWGYD-4 flow sensor | Flow range :0.667-4.167 L/min, pulse output | |||
| LWGYD-15 flow sensor | Flow range :10.00-100.00 L/min, pulse output | |||
| Big pumps | 380VAC 50Hz 2.2kw protection grade: IP55 insulation grade: F | |||
| Mini Pumps | 380VAC 50Hz 0.55kw protection grade: IP55 insulation grade: F | |||
| Scope of waterproof test |
IPX1,IPX2,,IPX3,IPX4,,IPX4K,IPX4K,IPX5,IPX6,IPX6K, IPX7,IPX8,JIS R1/R2,JIS S1/S2 |
|||
| IPX1-IPX2 | Drop area :1000*1000 mm | |||
| Drop hole diameter :0.4 mm | ||||
| Drop hole spacing :20 mm | ||||
| Test flow :1~1.5 mm/min (IPX1),3~3.5(IPX2) | ||||
| IPX3-IPX4 | Swing radius | R400mm ,R600mm ,R800mm ,R1000mm | ||
| Inner diameter of pendulum tube | Φ18mm | |||
| Pinhole diameter of pendulum tube | Φ0.4mm, hole spacing 50 mm ,0.07±0.0035 L/Min per hole | |||
| Swing Rainfall | According to the test standard set on the console (water supply 0.63-10 L/Min) | |||
| Test time | Set on console according to test criteria (range 1-9999 seconds) | |||
| Swing tube test angle | 0-3500 | |||
| Swing tube test speed | About 4-60 degrees per second | |||
| Speed of swing tube turntable | According to the standard, the pre-factory system has been set to 1 RPM, or 1 rpm | |||
| Custom testing |
Any set within the º of :0-350 Test speed :4-60 degrees per second set; unit: degrees per second Test time :0-9999 seconds; set in seconds Test flow rate :0.63-10.0 L/min set arbitrarily in L/min unit |
|||
| Sprinkle water | Number of fountains | 121,φ0.5 holes | ||
| Test flow | 10±0.5 L/min | |||
| Test time | Set by test standard (range 1-9999 seconds) in seconds | |||
| Test pressure | 50-150 kPa | |||
| IPX5-IPX6 | nozzle aperture | 6.3 mm (IPX5),12.5 mm (IPX6) | ||
| Water spray | 12.5±0.625 L/min (IPX5),100±5 L/min (IPX6) | |||
| Test time | Set by test standard (range 1-9999 seconds) in seconds | |||
| Test pressure | Water flow regulation IPX5 about 30 kpa ,IPX6 about 100 kpa | |||
| IPX7 | Test requirements |
The lowest point of the shell with 1. height less than 850 mm shall be less than 1000 mm; above the water surface The highest point of the enclosure 2. a height greater than or equal to 850 mm shall be 150 mm; below the surface of the water |
||
| Test time | 30 min | |||
| IPX4K | Swing radius | R200mm,R400mm,R600mm,R800mm | ||
| Inner diameter of pendulum tube | Φ22mm | |||
| Pinhole diameter of pendulum tube | Φ0.8mm 0.6 L/min±5 per cent per hole | |||
| Angle of pendulum test | 360°(±180° actual ±175) | |||
| Test speed of pendulum tube | s/Cycle 12 | |||
| Swing Rainfall | 7.2-30 L/min±5% set | |||
| Test time | min 10(1 position 5 min,90°5) | |||
| Water pressure | 400 kPa | |||
| Speed of turntable | 1RPM | |||
| IPX6K | Nozzle diameter | Φ6.3mm | ||
| Test flow | 75L/min±5 per cent | |||
| Test time | 0-99999.9 s Set | |||
| Spray pressure | 1000 kPa | |||
| Turnover | Speed range | Tilt 15° RPM 1-20 | ||
| Adjust height | mm 800-1700 | |||

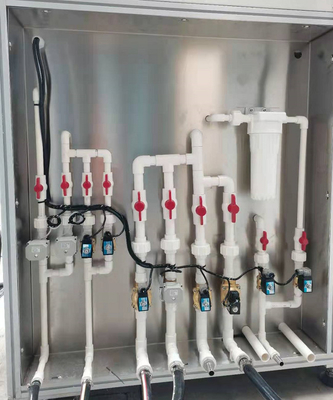

| Dimensions of Water Supply and Control System | W1310mm×D890mm×H1600mm | |||
TAG:ingress protection test equipment,IP test equipment,iec60529 test equipment,iso20653 test equipment
