2058mm Arm Length Six Axis Robot 30KG Max Loading BRTIRUS2030A
Product Details:
| Brand Name: | KINGPO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Arm Length(mm): | 2058 | Repeatability(mm): | ±0.08 |
|---|---|---|---|
| Loading Ability(KG): | 30 | Power Source(KVA): | 10.16 |
| Net Weight(KG): | 310 | ||
| High Light: | 30KG Loading Six Axis Robot,2058mm Length Six Axis Robot,IP50 Body Six Axis Robot |
||
Product Description

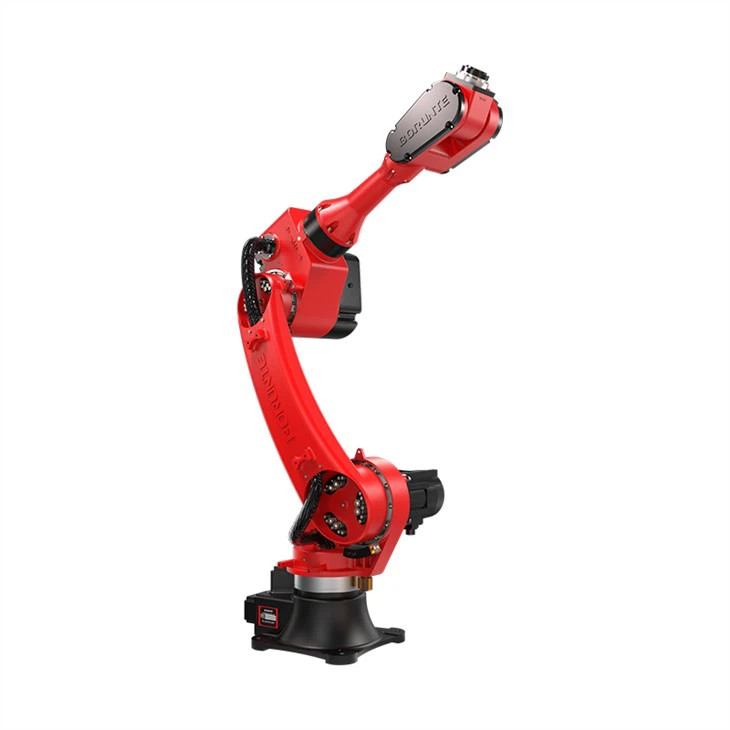

BRTIRUS2030A 6 aixs robot 2058mm arm length 30KG max loading
Product details
BRTIRUS2030A is a six-axis robot developed by BORUNTE for complex applications with multiple degrees of freedom. The maximum load is 30KG and the maximum arm length is 2058mm. The flexibility of six degrees of freedom can be used to handle the scenes such as injection parts taking, machine loading and unloading, assembly and handling. The protection grade reaches IP54 at the wrist and IP50 at the body.Dust-proof and water-proof. The repeat positioning accuracy is ±0.08mm.
Main Specification
Arm Length(mm):2058
Repeatability(mm):±0.08
Loading Ability(KG):30
Power Source(KVA):10.16
Net Weight(KG):310
| Item | Range | Max.Speed | |
| Arm | J1 | ±150° | 102°/S |
| J2 | -90°/+70° | 103°/S | |
| J3 | -55°/+105° | 123°/S | |
| Wrist | J4 | ±180° | 245°/S |
| J5 | ±115° | 270°/S | |
| J6 | ±360° | 337°/S | |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
