BRTIRSE2013A 6 Axis Robot 2000mm Arm Length 13KG Max Loading
Product Details:
| Brand Name: | KINGPO |
|
Detail Information |
|||
| Arm Length(mm): | 2000 | Repeatability(mm): | ±0.5 |
|---|---|---|---|
| Loading Ability(KG): | 13 | Power Source(KVA): | 6.3 |
| Net Weight(KG): | 400 | ||
| High Light: | 13KG Loading Six Axis Robot,BRTIRSE2013A 6 Axis Robot,2000mm Arm Length 6 Axis Robot |
||
Product Description
BRTIRSE2013A 6 Aixs Robot 2000mm Arm Length 13KG Max Loading
Product details

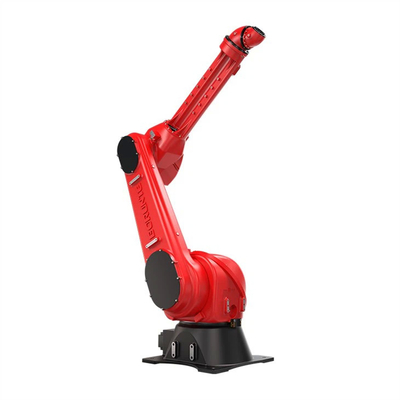

BRTIRSE2013A is a six-axis robot developed by BORUNTE for the spraying application industry. It has an ultra-long arm span of 2000mm and a maximum load of 13kg.It has a compact structure, is highly flexible and technologically advanced, and can be used in a wide range of spraying applications. The protection grade reaches IP65 at the wrist and IP68 at the body.Dust-proof, water-proof and explosion-proof. The repeat positioning accuracy is ±0.5mm.
Main Specification
Arm Length(mm):2000
Repeatability(mm):±0.5
Loading Ability(KG):13
Power Source(KVA):6.3
Net Weight(KG):400
| Item | Range | Max.Speed | |
| Arm | J1 | ±162.5° | 105°/s |
| J2 | ±124° | 105°/s | |
| J3 | -57°~+237° | 123°/s | |
| Wrist | J4 | ±180° | 473°/s |
| J5 | ±180° | 519°/s | |
| J6 | ±360° | 613°/s | |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
