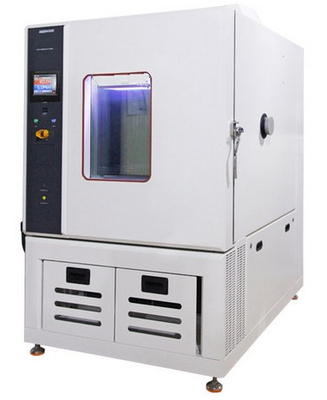

Eco Friendly Formaldehyde Testing Equipment / Voc Testing Chamber

Product Details:

Place of Origin: China
Brand Name: KingPo
Certification: Calibration Certificate

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 35 working days
Payment Terms: T/T
Supply Ability: 3 sets per month
Contact Now

Detail Information

Temp. Adjustable Range: 20~30℃ Temp. Adjustment Accuracy: ±0.5(fluctuation),±1.0℃(deviation)
Temperature Measurement Accuracy: ±0.1℃ Relative Humidity Adjustable Range: 40~70%R.H.
Relative Humidity Adjustment Accuracy: ±5%R.H. Relative Humidity Measurement Accuracy: ±1%R.H.
High Light:

ozone test chamber

,

temperature and humidity chamber

Product Description

VOC test chamber of the whole vehicle



Test principles

The process of the test of pollutant release with the environmental chamber can be

summarized as: putting materials and products or their samples in the test chamber,

and adjusting environmental conditions such as temperature in the chamber,relative-

ly humidity and air exchange rate;sampling at the exhaust port or the inside of the

environmental chamber;adopting appropriate methods to analyze gas samples and

identify major pollutants and the changes in their concentration with the time;then

confirm the release rate and release properties of materials and products according

to the measured concentration.





Feature



• The test equipment satisfies ISO 12219-2011 Enviromental Protection Industry Standard of People’s Republic of China.

• Background of the test chamber is controlled with Ventilation Method and internal circulation.

• The customer provides other accessories and instruments for detecting voc,while the supplier coordinates with the installation of sampling aperture.





Reference Standards:

• VOC detection method for Janpanese Jama vehicle(automotive air conditioning can be started.)

• National standard HJ/T400-2007 methods for sampling and detecting volatile organic compounds as well as Aldehydes and Ketones inside the vehicle(the whole vehicle is static.)

• GB/T 28370-2012 Detection methods for air quality in the coach

• VOC test methods for German VW PV 3938 vehicle(infrared heating method)

• ISO 12219-1:2012(E) Air in road vehicles section 1:the whole vehicle testing with the environental chamber method specification for detection of volatile organic compounds inside the vehicle(simulating sunshine)





Technical Parameters:



Temperature

adjustable range

20~30℃

adjustment accuracy

±0.5(fluctuation),±1.0℃(deviation)

measurement accuracy

±0.1℃

Relative humidity

adjustable range

40~70%R.H.

adjustment accuracy

±5%R.H.

measurement accuracy

±1%R.H.

Ventilation quantity

adjustable range

300~1200m³/h(air change rate:2~10 times/h)

Dimension of internal VOC compartment of whole vehicle

D8000*W5000*H3500=140m³

Dimension of the door VOC compartment of whole vehicle

H2800*W3000

Pressure inside VOC compartment of whole vehicle

Compared to pressure outside the compartment,mirco positive pressure

Wind rate

≤0.3m/s,with outlet at the smallbox mesh on the ceiling and return air at the bottom

Maximum air processing volume of the filter qir quantity

m³/h

High-efficiency particle filter

max. wind processing volume1000m³/h

Activated carbon filter/chemical filter

max. wind processing volume1000m³/h;requirements for pollutant concentration in gases after processing

Value of background concentration of pollutants in the environmetal chamber

blank background : 1.benzene<0.01mg/m³; 2.methylbenzene≤0.02mg/m³; 3.dimethylbenzene≤0.02;4.ethylbenzene≤0.02mg/m³;5.styrene≤0.02mg/m³;6.formaldehyde≤0.02mg/m³;7.acetaldehyde≤0.01mg/m³;8.acroleine≤0.01mg/m³

open the door of the whole vehicle:due to great differences of materials of the vehicle when operating the door of the whole vehicle,it should be guaranteed that voc of single component is smaller than 0.02mg/m³ or 10% of the limit;formaldehyde content is smaller than 0.02mg/m³ ;TVOC content is smaller than 0.2mg/m³




• This scheme is our invention patent,so pls avoid patent disputes.

• Scheme A of background processing properties: 0.02g of toluic aldehyde is placed in the chamber.After it has released completely,the test chamber is operated in accordance with the standard stipulation of HJ/T400-2007methods for sampling and detecting volatile organic compounds as well as Aldehydes and Ketones inside the vehicle.20 minutes later,air in the chamber is sampled,and the background value of toluic aldehyde in the chamber should be smaller than 20μg/m³.

• End user(customer) should self-prepare the power: AC 380V,3 phases 5 wires,50Hz

• End user(customer) consider the dimension of internal chamber,the space the equipment takes up,the outfall of the equipment system,waste gas discharging and tap water or pure water.
