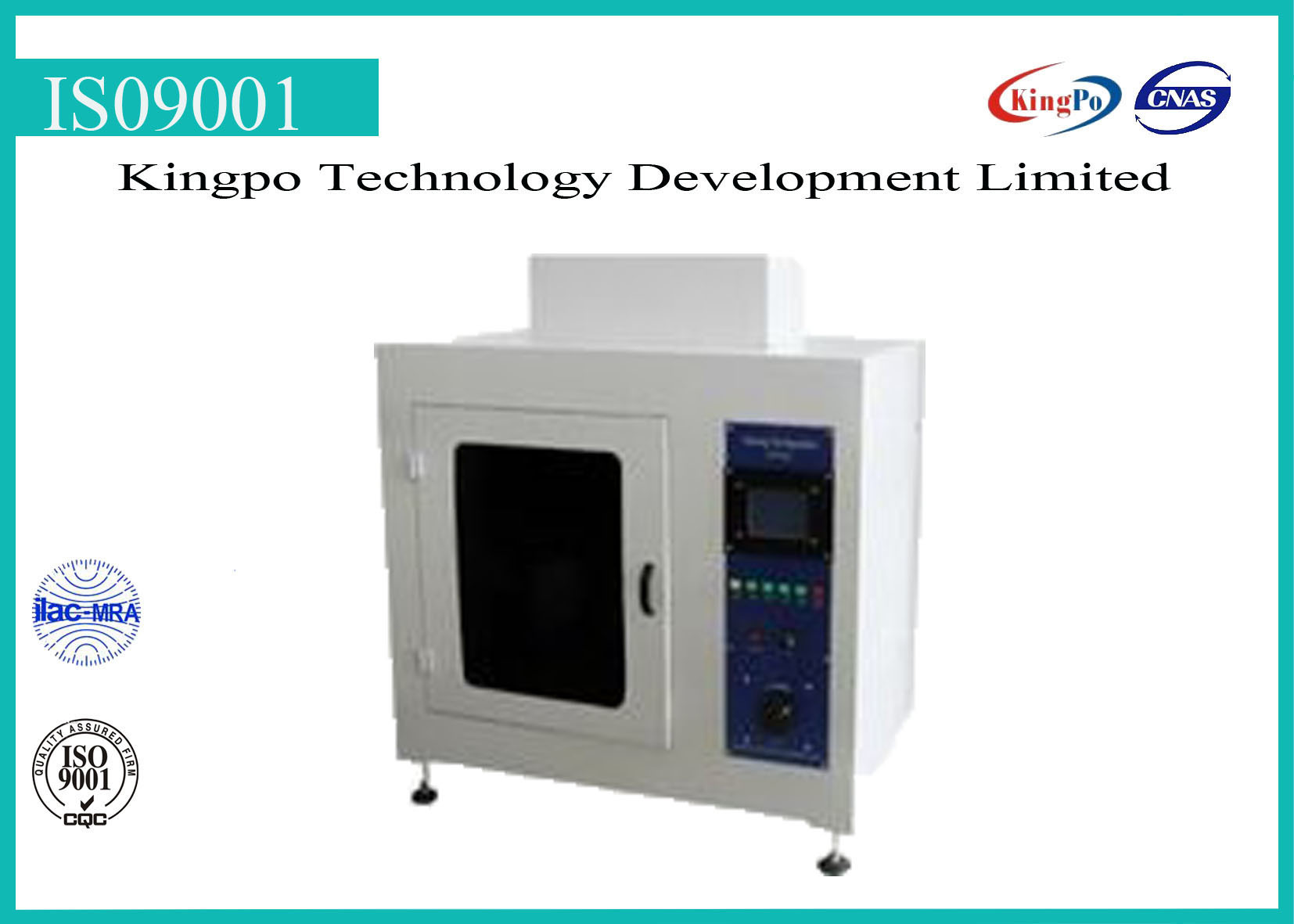

Horizontal / Vertical Flammability Test Chamber Easy Operation

Horizontal / Vertical Flammability Test Chamber Easy Operation

Horizontal / Vertical Flammability Test Chamber Easy Operation

Product Details:

Place of Origin: China
Brand Name: KingPo
Certification: Calibration Certificate
Model Number: KP-FT04

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 3 sets per month
Contact Now
Detailed Product Description
Burner: 1 Set Of Bunsen Burner At An Inside Diameter Of Φ9.5mm ± 0.3mm Test Angle: 0°、20°、45° Manual Conversion
Flame Height: 20mm ± 2mm ~180mm±10mm Adjustable Ignition Exertion Time: 0-999.9s±0.1s Adjustable
Residual Flame: 0-999.9s±0.1s Residual Broil: 0-999.9s±0.1s



Horizontal-Vertical Flame Chamber Tester





Brief Introduction



Horizontal Burning Test:UL HB,IEC 60695-11-10,IEC 60707,ISO 1210,GB/T 2408

50W Vertical Burning Test :UL94 V0,V1,V2,IEC 60695-11-10,ISO 1210,GB/T 2408
500W Vertical Burning Test :UL94 5VA,5VB,IEC 60695-11-20,ISO 9770,GB/T 5169.17
Membrane Material Vertical Burning Test :VTM-0,VTM-1,VTM-2,ISO 9773
Foam Material Horizontal Burning Test:HF-1,HF-2,HBF,ISO 9772,GB/T 8332


Reference standard of horizontal and vertical burning test are UL94-2006,IEC 60695-11-4 ,IEC 60695-11-3 GB4943-2001,GB/T5169-2008,IEC60950;it adopts Bunsen burner in required size and required ignition gas source(methane or propane);exert ignition on the horizontal or vertical specimen at a certain height and ignition exertion angle at regular time;use specimen ignition,lasting time and combustion length to evaluate its combustibility and fire fatalness.



The tester is mainly aimed at evaluating rank of material combustibility at class of V-0 , V-1 , V-2 , HB , 5V ;suitable for research,production and quality testing department of electrical and electronic devices and component parts like lighting equipment,low voltage apparatus,household appliance,machine tool electric appliance,motor-driven machine,electric tool,electronic instrument,suitable for insulating material,engineering plastics and other solid combustible material industry.



Technical Parameter


1, burner:1 set of Bunsen burner at an inside diameter of Φ9.5mm ± 0.3mm
2, test angle:0°,20°,45°manual conversion
3, flame height:20mm ± 2mm ~180mm±10mm adjustable
4, ignition exertion time: 0-999.9s±0.1s adjustable
5, residual flame: 0-999.9s±0.1s,automatic record,suspension by wire
6, residual broil: 0-999.9s±0.1s,automatic record,suspension by wire
7, combustion gas: 98% methane gas or 98% propane gas(generally can be replaced by liquefied petroleum gas )
8, Flow and Pressure:double Flowmeter and pressure gauge(gas and air)
9, temp. test range:0~1000℃
10, flame temp. requirement:from 100℃±5℃ rise up to 700℃±3℃ within 44±2s~54s±2s
11, thermocouple:K tyoe Φ0.5mm accuracy±0.05%.
12, test procedure:manual control with independent ventilation
13, Reference standard:UL 94-2006,IEC 60695-11-3,IEC 60695-11-4,GB/T5169.15,16,17,22-2008
14, studio area:bigger than 0.75 cubic meter(size can be customized)
15, external dimension:1200mmW×700mmD×1400mmH
16, control:single chip Microcomputer touch screen+button type double control system,high accuracy temperature gauge,independent electrical control system,strong anti-interference.
17, operation with high efficiency:One-touch operation ,fast and highly effectively
18, standard integration:program test procedures in accordance with actual test procedures.
19, automation:automatic ignition
