BTS-20V10A Battery Testing System , Battery Testing Equipment With Calibration Certificate

Certification
China KingPo Technology Development Limited certification
China KingPo Technology Development Limited certification
I'm Online Chat Now

BTS-20V10A Battery Testing System , Battery Testing Equipment With Calibration Certificate

China BTS-20V10A  Battery Testing System , Battery Testing Equipment With Calibration Certificate supplier
BTS-20V10A  Battery Testing System , Battery Testing Equipment With Calibration Certificate supplier BTS-20V10A  Battery Testing System , Battery Testing Equipment With Calibration Certificate supplier

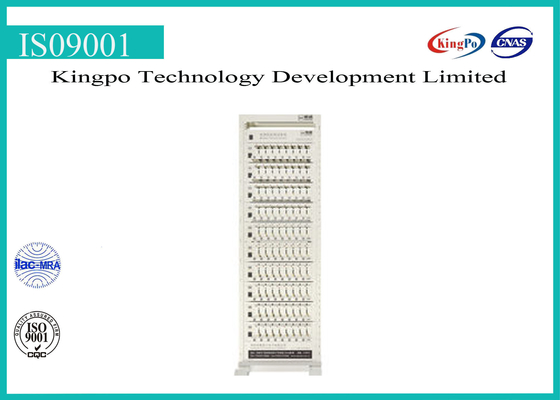

Large Image :  BTS-20V10A Battery Testing System , Battery Testing Equipment With Calibration Certificate

Product Details:

Place of Origin: china
Brand Name: KingPo
Certification: iso9001
Model Number: BTS-20V10A

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 35 working days
Payment Terms: TT
Supply Ability: 3 sets per month
Contact Now
Detailed Product Description
Resolution Ratio: AD:16bit;DA:12bit Input Impedance: ≥1MΩ
Constant Voltage Range: 100mV~20V Minimum Discharge Voltage: 2.5V
Current Output Range/channel: 50mA~10A Constant Voltage Cut-off Current: 0.02A
High Light:

Battery Test Chamber

,

Battery Testing Equipment

BTS-20V10A Battery Testing System , Battery Continuous charge , Battery Forced Discharge



Technical Parameter:


BTS-20V10A Battery tester
Model Number: BTS- 20 V 10 A Battery tester Material code: CT-3008 -20V10A - NA - P
items Parameter
Input power AC 220V ±10% / 60Hz
Input active power 2228 W
resolution ratio AD:16bit;DA:12bit
Input impedance ≥1MΩ
voltage Constant voltage range 100mV~20V
Minimum discharge voltage 2.5V
accuracy ± 0.1% of FS
stability ± 0.1% of FS
current Output range/channel 50mA~10A
accuracy ± 0.1% of FS
Constant voltage cut-off current 0.02A
stability ± 0.1% of FS
power Output range/channel 200W
stability ± 0.2% of FS
time Current response time maximum current rising time:20ms
working step time range ≤(365*24)h/working step Time format00:00:00(h,min,s)
Data record Record data conditions Minimum sampling time:1s
Minimum sampling voltage:40mV
Minimum sampling current:20mA
Record frequency 1Hz
Charge Charge mode constant-current charge,constant-voltage charge,constant voltage and current charge
cut-off conditions Voltage,current,relative time,capacity,-△V
discharge Discharge mode constant current discharge, constant watt discharge
cut-off conditions Voltage,current,relative time,capacity,-△V
cycle Loop test range 1~65535 times
Single cycle working steps 254
Loop nest Nested loop function,max 3 layers
Protection ● Data Protection
● off-line test
● security conditions can be set including voltage upper/lower limit,current upper/lower limit and delay time
●anti reverse connection
IP Protection Class IP20
Channel feature constant current and voltage source ;double closed-loop;
Channel control mode independent
Current/voltage detection sampling four-wire connection
noise <85dB
data base MySQL centralized management of test datas
upper computer communication mode TCP/IP
Data output mode EXCEL2003,2010,TXT
Server disk Configuration 500GB
Server operating system Windows 7
communication interface ethernet
Working environment requirement
item parameter
working temp. range 0℃~40℃(within25±10℃,ensured accuracy:precision drift0.005% of FS /℃)
Storage temp. range -10℃~50℃
Working environment relative humidity range ≤70% RH(no water vapor condensation)
Storage environment relative humidity range ≤80% RH(no water vapor condensation)
Clamp specification and size
item parameter
Clamp type Polymer clamp
Pic BTS-20V10A  Battery Testing System , Battery Testing Equipment With Calibration Certificate 0 BTS-20V10A  Battery Testing System , Battery Testing Equipment With Calibration Certificate 1 BTS-20V10A  Battery Testing System , Battery Testing Equipment With Calibration Certificate 2
Alligator clamp Polymer clamp cable feet clamp
Pictures are for reference only,real objects shall prevail.Choose one
Cabinet size/unit(W*D*H)(mm) 12U(19”),600*600*740
Equipment pic
Pictures are for reference only,real objects shall prevail.
