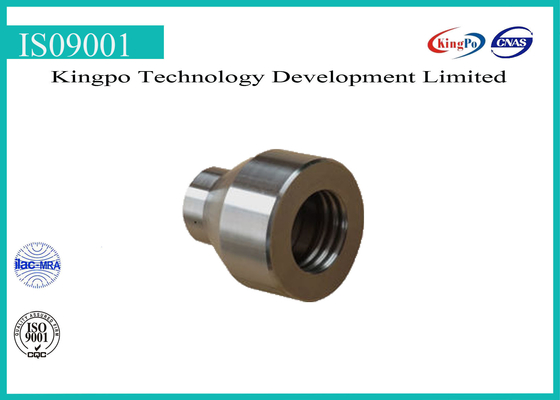

E26d Lamp Cap Gauge Screw Thread Gauge iec 60061 3 With Calibration Certificate

E26d Lamp Cap Gauge Screw Thread Gauge iec 60061 3 With Calibration Certificate

    • E26d Lamp Cap Gauge Screw Thread Gauge iec 60061 3 With Calibration Certificate
    • E26d Lamp Cap Gauge Screw Thread Gauge iec 60061 3 With Calibration Certificate
  • E26d Lamp Cap Gauge Screw Thread Gauge iec 60061 3 With Calibration Certificate

    Product Details:

    Place of Origin: china dongguan
    Brand Name: kingpo
    Certification: iso9001 iso17025
    Model Number: 7006-29D-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: To be quoted
    Packaging Details: safety carton pack or plywood box
    Delivery Time: 7 working days
    Payment Terms: T/T
    Supply Ability: 1000 pcs per month
    Contact Now
    Detailed Product Description
    Brand Name: Kingpo Model Number: KP-7006-29D-1
    Material: Hardness Steel Standard: IEC60061-3



    E26d Lamp Cap Gauge | Gauge With Reference Diameter Of 10.4mm For E26d Caps On Finished Lamps E26d-7006-29d-1



    PURPOSE:

    To check dimensions Cmax. and C1max. of caps E26d.



    TESTING:

    When the unmounted cap has been pushed into the gauge as far as it will go, surface W of the plunger shall not project beyond surface X. For caps on finished lamps, surface W shall not project beyond surface V. In this instance, the cap shall be so positioned that the solder on the intermediate
    contact is located in the recess provided in the gauge

    E26d Lamp Cap Gauge Screw Thread Gauge iec 60061 3 With Calibration Certificate



    Related gauges:



    "NOT GO" GAUGE FOR E26, E26/50x39, E26/51x39 & E26d CAPS ON FINISHED LAMPS (Sh. 7006-29L-4)
    "GO" GAUGE FOR CAPS E26, E26/50x39, E26/51x39 & E26d (7006-27D-3)
    GAUGE FOR TESTING CONTACT-MAKING OF LAMPS FITTED WITH CAPS E26, E26/50x39,E26/51x39 & E26d (NON-SKIRTED) (7006-29-3)
    E26d GAUGE FOR CAPS ON FINISHED LAMPS FOR TESTING PROTECTION AGAINST ACCIDENTAL CONTACT (7006-29A-2)
    E26d GAUGE WITH REFERENCE DIAMETER OF 23 mm FOR CAPS (7006-29B-2)
    E26d GAUGE WITH REFERENCE DIAMETER OF 13,2 mm FOR CAPS (7006-29C-2)
    E26d GAUGE WITH REFERENCE DIAMETER OF 10,4 mm FOR CAPS ON FINISHED LAMPS (7006-29D-1)
