Ip 5x / 6x Dust Test Apparatus Iec 62368-1 Annex Y.5.5 Protection From Excessive Dust
Product Details:
| Place of Origin: | China |
| Brand Name: | Kingpo |
| Certification: | Calibration Certificate |
| Model Number: | KP-DC1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | To be quoted |
| Packaging Details: | safety carton pack or plywood box |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 3-5 sets per month |
|
Detail Information |
|||
| Standard: | IEC62368-1-Annex Y.5.5 | Internal Dimension: | 1000 X 1000 X1000 W*H*D Mm |
|---|---|---|---|
| Power: | AC 220V 50Hz 3.0KW | Metal Mesh Diameter: | 50um |
| High Light: | ip 5x dust test apparatus,iec62368 dust test apparatus,iec62368 test equipment |
||
Product Description

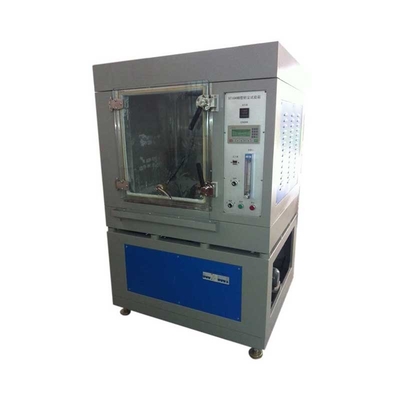

IP 5X/6X dust test apparatus, IEC 62368-1 Annex Y.5.5 Protection from excessive dust
1. Standard
IEC60529; IEC60598-1:1999; GB/T10485-2008 , IEC62368-1
2. Technical parameters
| Internal dimension | 1000 X 1000 X1000 W*H*D mm |
| metal mesh diameter | 50um |
| Talcum powder dosage | 2Kg/m³ |
| air velocity | No more than 2m/s |
| The Talcum powder amount | 2kg/ m³ |
| Internal material | sus304 corrosion resistant plate |
| External material | A3 plate plastic spraying powder |
| Door | tempered glass door |
| Power | AC 220V 50Hz 3.0KW |
