• IEC62368-1 IT Test Equipment , Straight Unjointed Version Respective Test Probe
  • IEC62368-1 IT Test Equipment , Straight Unjointed Version Respective Test Probe
Good price IEC62368-1 IT Test Equipment , Straight Unjointed Version Respective Test Probe online

IEC62368-1 IT Test Equipment , Straight Unjointed Version Respective Test Probe

Product Details:

Place of Origin: China
Brand Name: Kingpo
Certification: Calibration Certificate
Model Number: IEC62368-1-Figure V.1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: goods in stock
Payment Terms: T/T
Supply Ability: 100 set/ month
Contact Now

Detail Information

Material: Nylon+Stainless Steel Standards: IEC62368-1
Weight: 1.5kg Warranty: 1 Year
High Light:

av test equipment

,

tv test equipment

Product Description

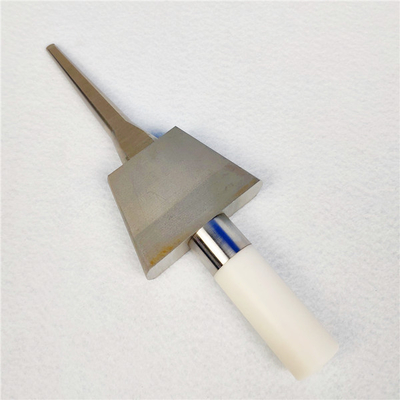

Straight unjointed version of the respective test probe applied with a force of 30N , IEC62368-1-Figure V.1



EC62368-1-cl.4.8 IEC62368-Annex V.1.3 Test method 2





Reference Standard:

IEC62368-1-Figure V.1



Specification:

Test Finger Length:234mm





IEC62368-1 IT Test Equipment , Straight Unjointed Version Respective Test Probe 0

IEC62368-1 IT Test Equipment , Straight Unjointed Version Respective Test Probe 1

IEC62368-1 IT Test Equipment , Straight Unjointed Version Respective Test Probe 2









IEC62368-1 IT Test Equipment , Straight Unjointed Version Respective Test Probe 3





IEC 62368-1 TESTING AND MEASURING EQUIPMENT

No. Items Description Photo Qty Brand
1 Temperature and humidity chamber IEC62368-1-cl.4.1.4 Model:KP-HWS1000L latest company news about IEC 62368 Test Equipment  0 1 KingPo
2 Test Apparatus for device forming
mains plug
IEC62368-1-cl.4.7 Model :KP-LJ220
Technical Parameter:
1. As per IEC60065-fig11
2. Weight: 1N, 2N.
3. Socket:UK, EU.
4. Arm of force 0-320mm
5.mension: 350*150*150 mm
latest company news about IEC 62368 Test Equipment  1 1 KingPo
3 Jointed test probe for equipment likely to be accessible to children IEC62368-1-cl.4.8 IEC 62368 -1-Figure V.1 latest company news about IEC 62368 Test Equipment  2 1 KingPo
4 Unjointed test probe IEC62368-1-cl.4.8 IEC62368-Annex V.1.3 Test method 2 latest company news about IEC 62368 Test Equipment  3 1 KingPo
5 Test hook IEC 62368-Figure 20 latest company news about IEC 62368 Test Equipment  4 1 KingPo
6 Flat surface IEC62368-1-cl.4.8.4.6 size:100 mm by 250 mm) latest company news about IEC 62368 Test Equipment  5 1 KingPo
7 Measuring network, touch current weighted for perception or reaction IEC 60990 figure 4 latest company news about IEC 62368 Test Equipment  6 1 KingPo
8 Measuring network, touch current weighted for let-go IEC 60990 figure 5 latest company news about IEC 62368 Test Equipment  7 1 KingPo
9 2kΩ resistor 2kΩ±2% latest company news about IEC 62368 Test Equipment  8 1 KingPo
10 Jointed test probe for equipment not likely to be accessible to children Test probes V2 latest company news about IEC 62368 Test Equipment  9 1 KingPo
11 Blunt probe Test probes V3 latest company news about IEC 62368 Test Equipment  10 1 KingPo
12 Wedge probe Test probes V4 latest company news about IEC 62368 Test Equipment  11 1 KingPo
13 Terminal probe Test probes V5 latest company news about IEC 62368 Test Equipment  12 1 KingPo
14 Winding hot resistance tester IEC62368-1-cl.5.4.1.4, Model:RC3002 Measuring range: 0.500~99.99Ω,±(-0.2% reading +5 D). 99.99~2000Ω±(-0.2% reading +2 D). 2000~10000Ω±(-0.2% reading +1 D). Power supply:AC220V, 50/60Hz , Size:380(W)×340(D)×120(H) latest company news about IEC 62368 Test Equipment  13 1 KingPo
15 Pink Noise Generator Pink Noise according to IEC62368-1- Annex E http://www.batterytestingmachine.com/sale-10623142-pink-noise-generator-it-test-equipment-iec-60065-clause-4-2-and-4-3-and-iec-62368-1-annex-e.html latest company news about IEC 62368 Test Equipment  14 1 KingPo
16 Scratch test device with steel pin Annex G 13.6.2 http://www.batterytestingmachine.com/sale-11991421-iec-60950-1-clause-2-10-8-4-automatic-abrasion-resistance-tester-printed-circuit-abrasion-strength-d.html latest company news about IEC 62368 Test Equipment  15 1 KingPo
17 Vicat test B 50 of ISO 306 IEC62368-1-cl.5.4.1.10 Dimension: 720mm×700mm×1380mm
Temperatrue: RT+10~300℃ Maximum temperature indication error :0.1℃ Temperature indication precision:
±0.5℃ Deformation measurement range:
0—1.0mm
Resolution:0.01mm Sample holder number: 3 sets
Power: 4Kw
Power supply: 220VAC 50Hz
latest company news about IEC 62368 Test Equipment  16 1 KingPo
18 Ball pressure test apparatus IEC62368-1-cl.5.4.1.10 http://www.batterytestingmachine.com/sale-11226669-iec-60695-10-2-2014-ball-pressure-tester-with-test-specimen-support-hot-deformation-capacity.html latest company news about IEC 62368 Test Equipment  17 1 KingPo
19
circuit 1 of Table D.1._Impulse test generator

IEC62368-1-cl.5.4.2.3.2.5 IEC 62368-1/Ed3-Figure D.1 Model:1950S
IEC62368-1 IT Test Equipment , Straight Unjointed Version Respective Test Probe 22 1 KingPo
20 circuit 3 of Table D.1._Impulse test generator
IEC62368-1-cl.5.4.2.3.2.5 IEC 62368-1/Ed3-Figure D.2 Model:KP-PRM65
IEC62368-1 IT Test Equipment , Straight Unjointed Version Respective Test Probe 23 1 KingPo
21 Tracking Index Tester IEC62368-1-cl.5.4.3 Model:KP-FT02 latest company news about IEC 62368 Test Equipment  20 1 KingPo
22 Mandrel test IEC62368-1-cl.5.4.4.6.5 IEC 62368-1- Figure 25-28 Weight:100N*1,50N*1( the pulling force of 50N, 100N, 150N can be achieved Rotate angle:230° Test mandrel:Triangle bar with a tip latest company news about IEC 62368 Test Equipment  21 1 KingPo
23 Electric Strength Test Dielectric strength tester
Made accord to IEC 62368-1-Figure 29, IEC60065, UL1310 standards
Pole diameter: 5 ± 0.1mm
Metal club weight: 100 ± 2g
latest company news about IEC 62368 Test Equipment  22 1 KingPo
24 Non-inductive Resistor 5000Ω and Ampere meter IEC62368-1-cl.5.4.11 latest company news about IEC 62368 Test Equipment  23 1 KingPo
25 Source with at least 1500A short circuit IEC62368-1-cl.5.6.4.1 (Annex R) http://www.batterytestingmachine.com/sale-12593671-250v-it-test-equipment-limited-short-circuit-test-iec-62368-1-annex-r.html latest company news about IEC 62368 Test Equipment  24 1 KingPo
26 Cheesecloth bleached cotton cloth 40g/m2 IEC62368-1-cl.6.4.8.3.3 latest company news about IEC 62368 Test Equipment  25 1 KingPo
27 Needle Flame Tester IEC62368-1-Annex S.2 Model:KP-FT03 latest company news about IEC 62368 Test Equipment  26 1 KingPo
28 Dark sticky mat, magnified glass with a resolution of 0,1 mm Conform to IEC 62368-1-cl.8.5.5.2. IEC62368-1 IT Test Equipment , Straight Unjointed Version Respective Test Probe 31 1 KingPo
29 magnified glass with a resolution of 0,1 mm Conform to IEC 62368-1-cl.8.5.5.2. Magnification:20x Resolution:0.1mm





               latest company news about IEC 62368 Test Equipment  27

1 KingPo
30 circular plan surface φ30mm IEC62368-1-T.4 latest company news about IEC 62368 Test Equipment  28 1 KingPo
31 Flat surface IEC 62368-1-cl.8.6.2.3. flat surface 12.5cm by 20cm latest company news about IEC 62368 Test Equipment  29 1 KingPo
32 800N=330N(item 1 can be used) +100N(item 3 can be used)+150N+200N+flat surface (20N) 1 KingPo
33 Inclined plane 10° IEC 62368-1-cl.8.6.4. 1, Tilt angle :0-30 °equipped with angle measuring instrument calibration, easy to operate, high accuracy angle, precision ± 0.5 ° 2, The maximum weight load: 50kg 3, Table size: 1000*1000mm.
4.Glass Thickness:10mm
latest company news about IEC 62368 Test Equipment  30 1 KingPo
34 75mm width strap Conform to IEC 62368-1-cl.8.8 latest company news about IEC 62368 Test Equipment  31 1 KingPo
35 circular plan surface φ30mm IEC62368-1-cl.8.10.3 latest company news about IEC 62368 Test Equipment  32 1 KingPo
36 Steel disk
IEC 62368-1-cl.9.6.3 IEC CDV 62368-1/Ed3-Figure 47(including thermocouples)
latest company news about IEC 62368 Test Equipment  33 1 KingPo
37 Aluminium ring
IEC 62368-1-cl.9.6.3 IEC CDV 62368-1/Ed3-Figure 48(including thermocouples)
latest company news about IEC 62368 Test Equipment  34 1 KingPo
38 Aluminium foil
IEC 62368-1-cl.9.6.3 IEC CDV 62368-1/Ed3-Figure 49(including thermocouples)
latest company news about IEC 62368 Test Equipment  35 1 KingPo
39 Covering of ventilation
openings

IEC 62368-Annex B.3.2 piece of card with minimum 200 g/m² density
latest company news about IEC 62368 Test Equipment  36 1 KingPo
40 Wrapping Tissue 12g/ m2 – 30g/m2 latest company news about IEC 62368 Test Equipment  37 1 KingPo
41 Cord Pull test IEC 62368-AnnexG.7.3.2.11, Power Supply: AC220V 50HZ;
2, Pull weight: 20N*2,30N*2( the pulling force of 30N,60N,80N,100N can be achieved);
3, Torque weight: 5N*1, 12.5N*1, 17.5N*1 (0.1Nm,0.25Nm,0.35Nm);
4, Tension times: 0~9999(selectable),25 times is by default;
5, Tension frequency: 1 times/s;
6, Torque time: 0.01S~99 hours 99 mins;
IEC62368-1 IT Test Equipment , Straight Unjointed Version Respective Test Probe 43 1 KINGPO
42 impact test
IEC 62368-Annex T.6  φ50mm/500g± 25g steel ball,




IEC62368-1 IT Test Equipment , Straight Unjointed Version Respective Test Probe 44 1 KINGPO
43 Drop test IEC 62368-Annex T.7 Hard wood 13mm on 18mm ± 2mm plywood, two layers IEC62368-1 IT Test Equipment , Straight Unjointed Version Respective Test Probe 45 1 KINGPO
44 Centre punch for Fragmentation test IEC 62368-Annex T.10
1.Weight: 75 g ± 5 g 2. Material: conical tungsten
3. Feature: a carbide tip with an angle of (60 ± 2)°
IEC62368-1 IT Test Equipment , Straight Unjointed Version Respective Test Probe 46 1 KINGPO
45 Vicat softening test apparatus Dimension: 720mm×700mm×1380mm
Temperatrue: RT+10~300℃ Maximum temperature indication error :0.1℃ Temperature indication precision:
±0.5℃ Deformation measurement range:
0—1.0mm
Resolution:0.01mm Sample holder number: 3 sets
Power: 4Kw
Power supply: 220VAC 50Hz
IEC62368-1 IT Test Equipment , Straight Unjointed Version Respective Test Probe 47 1 KINGPO
