KingPo IT Test Equipment Socket Outlet Torque Balance Tester KP-LJ2
Product Details:
Place of Origin: | China |
Brand Name: | KingPo |
Certification: | Calibration Certificate |
Model Number: | KP-LJ2 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | To be quoted |
Packaging Details: | safety carton pack or plywood box |
Payment Terms: | T/T |
Detail Information |
|||
Standard: | IEC60065 Figure 11 | Torque: | Not Exceed 0,25 Nm |
---|---|---|---|
High Light: | tv test equipment,tv signal tester |
Product Description

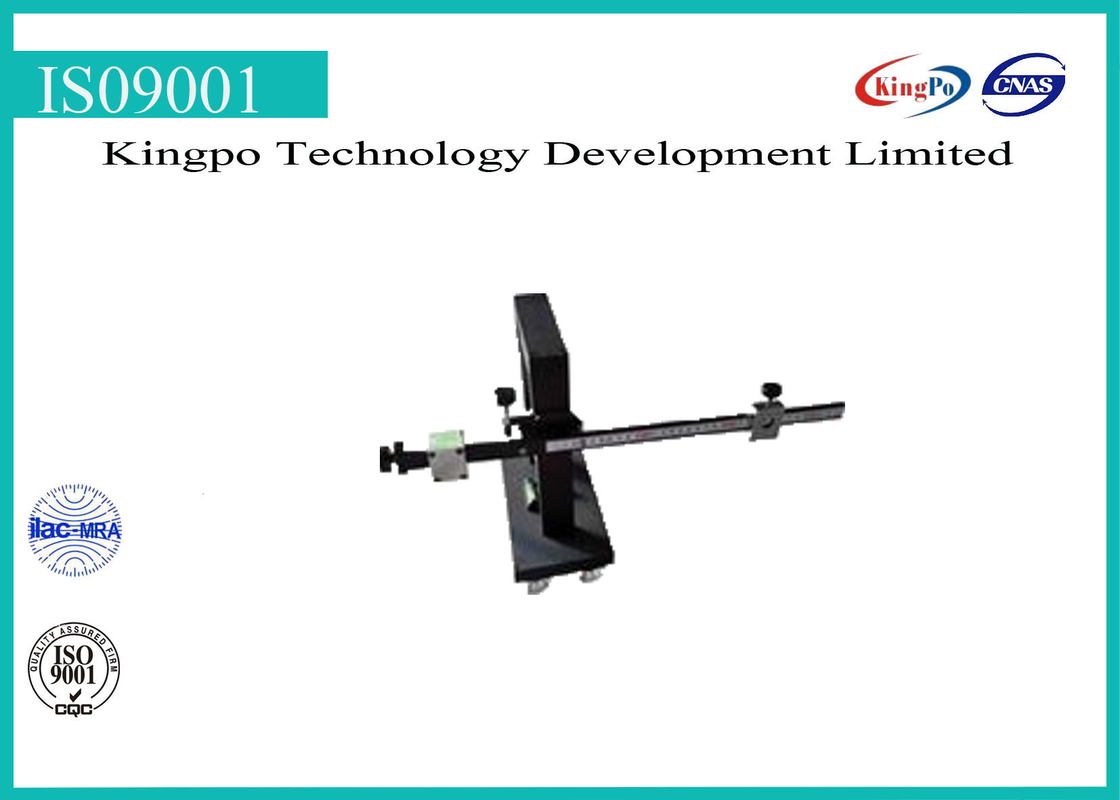

Socket Outlet Torque Balance
Product details: Model KP-LJ2:
The Plug torque tester is for compliance is checked by engaging the device, as during intended use, with the socket-outlet of a test apparatus as shown in IEC60065 Figure 11.
A device provided with pins intended to be introduced into fixed socket-outlets shall not impose undue strain on these socket-outlets.
The balancing arm of the test apparatus pivots about a horizontal axis through the centre lines of the contact tubes of the socket-outlet at a distance of 8 mm behind the engagement face of the socket-outlet.
With the device not in engagement, the balancing arm is in equilibrium, the engagement face of the socket-outlet being in the vertical position.
After the device has been engaged, the torque to be applied to the socket-outlet to maintain its engagement face in the vertical plane is determined by the position of a weight on the balancing arm. The torque shall not exceed 0,25 Nm.
