Jointed Test Probe For Equipment , IEC62368-1-Figure V.2

Product Details:

Place of Origin: China
Brand Name: Kingpo
Certification: Calibration Certificate
Model Number: IEC62368-1-Figure V.2

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: goods in stock
Payment Terms: T/T
Supply Ability: 100 set/ month
Contact Now

Detail Information

Material: Nylon+Stainless Steel Standards: IEC62368-1
Weight: 1.0kg Warranty: 1 Year
High Light:

tv test equipment

,

tv signal tester

Product Description

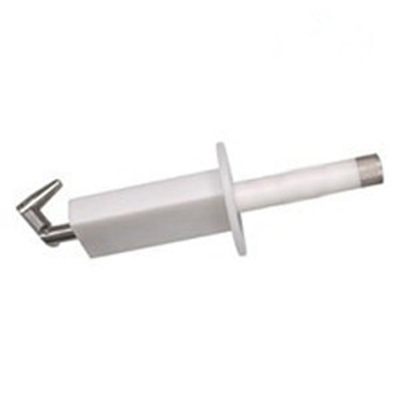

Jointed test probe for equipment not likely to be accessible to children



Reference Standard:

IEC62368-1-Figure V.2



Specification:

Knurled Finger Diameter:12mm
Knurled Finger Length:80mm
Baffle Plate Diameter:50mm
Baffle Plate Length:100mm
Baffle Thickness:20mm

Jointed Test Probe For Equipment , IEC62368-1-Figure V.2 0



Tolerances on dimensions without specific tolerances:
– 14° and 37° angles: ± 15 ′
– on radii: ± 0,1 mm
– on linear dimensions:
≤ 15 mm:  0 ,-0.1 mm
> 15 mm ≤ 25 mm: ± 0,1 mm
> 25 mm: ± 0,3 mm
NOTE This jointed test probe is taken from Figure 2, test probe B of IEC 61032:1997.
