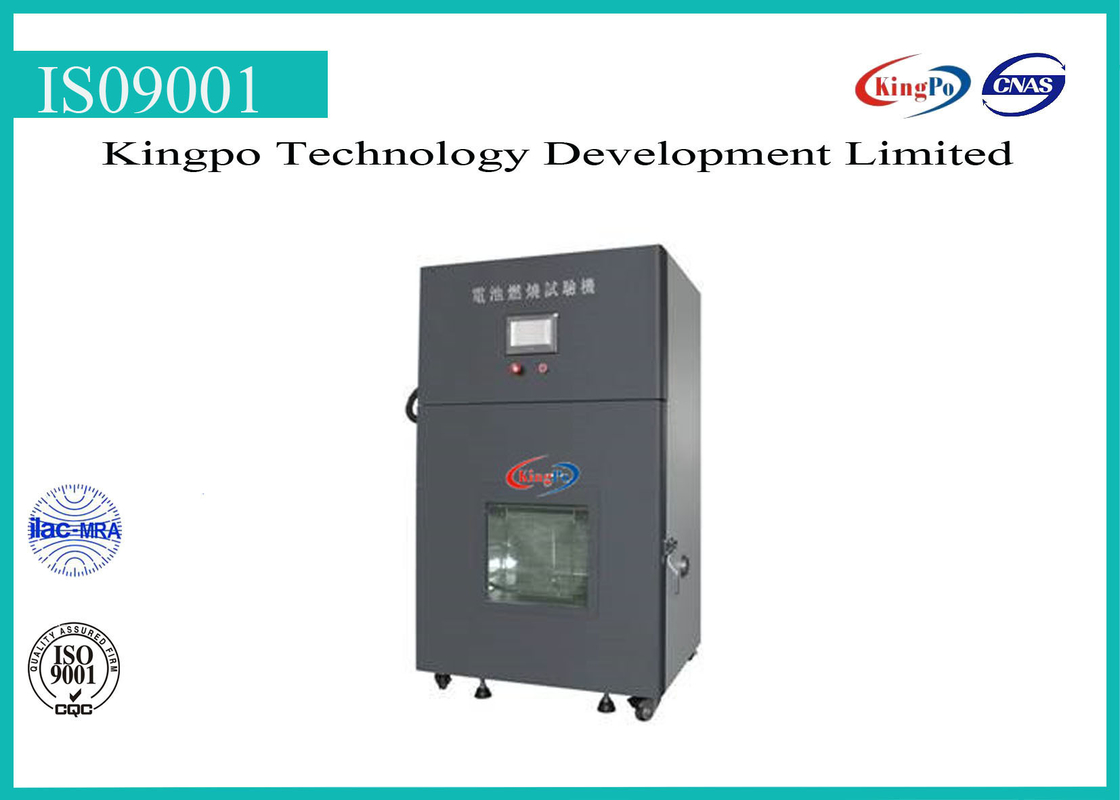

Industrial Battery Tester Battery Burning Tester Easy Operation KP-8105

Certification
China KingPo Technology Development Limited certification
China KingPo Technology Development Limited certification
I'm Online Chat Now

Industrial Battery Tester Battery Burning Tester Easy Operation KP-8105

Industrial Battery Tester Battery Burning Tester Easy Operation KP-8105
Industrial Battery Tester Battery Burning Tester Easy Operation KP-8105

Large Image :  Industrial Battery Tester Battery Burning Tester Easy Operation KP-8105

Product Details:

Place of Origin: china
Brand Name: KingPo
Certification: iso9001
Model Number: KP-8105

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 35 working days
Payment Terms: TT
Supply Ability: 3 sets per month
Detailed Product Description
Burne: Bunsen Burner With Internal Diameter 9.5mm Burning Time: 0~ 999.9s±0.1s
Hole Surface Diameter: 102mm Mesh Screen: 20-hole,weaved By 0.43mm(0.017inch) Stainless Steel Wire
Wire Control Distance: 10 Meters Without Barrier Height: 38mm
High Light:

Battery Testing System

,

Battery Testing Equipment



Battery Burning Tester





Product Type:KP-8105



Test Method:



Put the mesh screen above the burner at a distance of 38.1mm.The mesh screen has 20 holes distributed per 25.4mmDiameter steel wire is 0.43mm.Light the burner and observe the circumstance until explosion and burnout.Time burning procedure out.

Aim:burning resistance



Standard basis:



SJ/T11169-1998 UL 1642:2004(2008)),SJ/T11170-1998,UL 2054:2005(2008)),etc



Specification:



1. Burner:Bunsen burner with internal diameter 9.5mm and approximate length 100mm

2. Burning time:0~ 999.9s±0.1s

3. Hole surface diameter:102mm

4. Mesh screen:20-hole,weaved by 0.43mm(0.017inch) stainless steel wire.

5. Light control:remote wire control with automatic control of process

6. Wire control distance:10 meters without barrier;

7. Height:38mm

8. Tested octagonal mesh screen width:24″(610mm),octagonal,easy to replace and dis-

assemble;Height:12″(305mm)

9. material:aluminum,weaved by aluminum at a diameter of 0.010inch (0.25mm) with 16-18 lattices per inch.

10. Protective chamber:stainless steel.one side of toughened glass with thickness of 50m.Exhaust fan and a reserved outlet for external ventilation kort nozzle

11. Machine volume:750*750*1000mm



Standard Configuration:



1. host machine:1 set

2. controller:1 set

3. octagonal mesh screen(installed):1 set4.test mesh:1 pcs

5. test mesh screen:1 pcs

6. instruction:1

7 .warranty ward:1

8. Product Certificate:1
