Apple Iphone Cable Impact Tester Instrument

Apple Iphone Cable Impact Tester Instrument

MOQ: 1
Standard Packaging: 100*100*100CM
Detail Information
Place of Origin
china
Brand Name
kingpo
Certification
iso9001 ce
Model Number
HD-6159E
Power:
Electronic,Hydraulic
Warranty:
One Year
Weight:
150kg
Product Name:
Valve Test Equipment,Electrical Safety Laboratory Testing Equipment
Power Supply:
220V 50Hz
Highlight:

apple dc line Impact tester

,

apple cable impact tester instrument

Product Description

HD-CI-001 Cable Impact tester



Instrument description



This instrument is designed and processed according to the APPLE DC line test standard 080-1276- K, which is mainly used to detect the ability of DC wire to be impacted by sharp objects. Simulate sharp objects fall on the wire to see if the wire is damaged.



Main technical parameters:

  • Arm weight :360 g
  • Impact unit weight: g 590
  • General weight of pendulum :950 g( Remove shaft)
  • Initial impact distance :25.4 cm (10inch, subject to demand adjustment)
  • Initial impact angle :17°(subject to demand adjustment)
  • Impact distance increase or decrease :2.5 cm (1inch)
  • Fuselage size: mm 370,570,1035
  • Wire holder: Adjustable front and back to fit different diameter wires
  • Wire Fixture: Engineering Plastic Processing
  • Impact material: SKD11 die steel

Operation mode: manual operation, wire without load

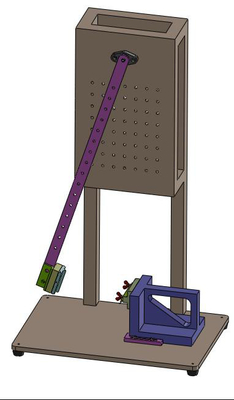

Apple Iphone Cable Impact Tester Instrument 0





HD-6159E Apple Charging Line Rotating Test Instrument



Apple Iphone Cable Impact Tester Instrument 1Apple Iphone Cable Impact Tester Instrument 2
