| MOQ: | 1 |
| Price: | To be quoted |
| Standard Packaging: | safety carton pack or plywood box |
| Payment Method: | T/T |

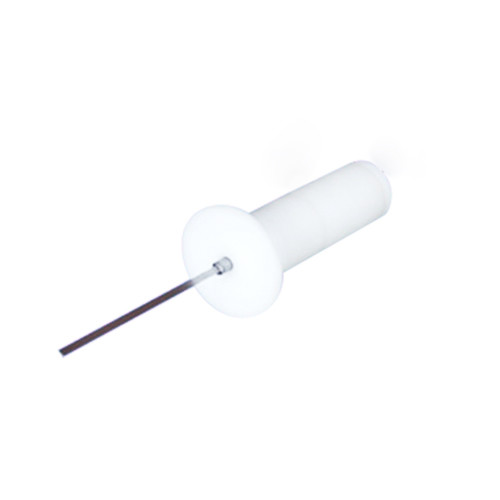

20N gauge / IEC60884 Figure 9-Gauge for checking non-accessibility of live parts, through shutters
Description:
Gauge for checking non-accessibility of live parts, through shutters.
The gauge is applied to the shutters in the most unfavourable position, successively in three directions, to the same place for approximately 5s in each of the three directions.
Specifications:
Item 20N gauge
Refer standard IEC 60884 Figure 9
Size 1*3mm
Length 80mm
Handle Diameter 30mm, length 60mm
Guard Diameter 50mm, thickness 5mm
Pull force 20N (achieve by a push pull meter)
Drawing: refer to IEC60884 figure 9
|
|
