1000N Electrical Safety Test Equipment , Photovoltaic Battery Backplate Two - Way Peel Tester

Product Details:

Place of Origin: China
Brand Name: KingPo
Certification: Calibration Certificate
Model Number: KP882001

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety carton pack or plywood box
Payment Terms: T/T
Contact Now

Detail Information

Maximum Test Force: 1000N Accuracy Grade: 0.5
Load Measurement Range: 0.2%—100%FS Test Force Value Resolution: 1/±200000 Of Maximum Test Force
Sampling Frequency: 400 Times/SEC Deformation Measurement Range: 0.2%—100%FS
High Light:

electrical safety analyzer

,

tv signal tester

Product Description

KP882001 Photovoltaic Battery Backplate Two-Way Peel Tester



Description:

KP882001 photovoltaic battery backplate two-way 90 °, 180 ° peel tester tests using full digital power and displacement in the process of the double closed loop control, adopt Taiwan of servo motor and controller, with precision worm gear reducer and Taiwan precision lead screw transmission, transmission efficiency and sex ratio in order to achieve the best effect, can realize the X, Y, Z three axis run independently or X/Z, Y/Z combination operation, PLC + touch screen man-machine integration control. This equipment can accomplish X, Y, two-way stretch 90 °, 180 ° peel test, is indispensable to solar module testing equipment.



This machine is mainly used for the finished product or semi-finished product of solar pv backplate, which greatly reduces the operating strength of the operator, effectively improves the test efficiency, and operates simple, fast and functional diversity. It can also be tested and processed according to various standards provided by GB, ISO, JIS, ASTM, DIN and users.



This machine is widely used in solar photovoltaic, green new energy and other industries material inspection and analysis. It is an ideal testing equipment for research institutes, colleges and universities, industrial enterprises, technical supervision, commodity inspection and arbitration, etc.



Technical parameters:

1. Maximum test force: 1000N;

2. Accuracy grade: 0.5;

3. Load measurement range: 0.2%—100%FS;

4. allowable error limit:of display test force:within ±1.0% of max test force;

5. Test force value resolution: 1/±200000 of maximum test force;

6. Sampling frequency: 400 times/SEC;

7. Deformation measurement range: 0.2%—100%FS;

8. Error limit of deformation value: within ±1.0% of display value;

9. Deformation resolution: 1/8000 of the maximum deformation

10. Displacement value error limit: within 0.5% of the indicated value;

11. Displacement resolution: 0.001mm

12. Displacement velocity adjustment range: 0.01-500mm/min

13. Accuracy of displacement rate control: within ±1.0% of the set value;

14. Effective stretch space distance: 400mm

15. Movable distance: X axis: 1000mm Y: 2000 mm

16.Size (length x width x height) : 2250 x 1200 x 650 (mm) (subject to machine)

17. Power supply: single phase 220V 50Hz 1kW;

18. Machine weight: about 360kg;



Features of control and data processing software:

1. Advanced chip integration technology, professional design of data acquisition and amplification system, has the advantages of high integration, stable reliability and easy to use. Control software can automatically calculate the tensile strength, yield strength, compressive strength, rupture strength, peel strength, elastic modulus, elongation and other testing data, formula editor open to any designated point in the process of automatic calculation test force, stress, displacement and deformation data results. The control and data processing of the test process meet the requirements of the national standard of metal materials and non-metallic materials.

2. Control mode: fixed speed,fixed displacement,fixed load and other control modes can be selected;

3. Automatic zero: after the test, the measurement system automatically zeroes;

4. Automatic shift: automatically switch to the appropriate range according to the load size to ensure the accuracy of the measurement data;

5.Auto-memory: test data and test condition are saved automatically, prevent data loss caused by forgetting to save;

6. Batch test: test samples of the same parameters, and a batch of tests can be completed after a single setting;

7. Display mode: data and curves are displayed dynamically according to the test process;

8. Curve traversal: after the test is completed, the curves can be analyzed again, and the data corresponding to each point on the test curve can be found with the mouse.

9. Curve selection: can select stress-strain, force - displacement, force - time, displacement - time curve to display and print;

10.Unit switching: power unit: (g, kg, N, lb),

stress unit: (kg/mm2,N/mm2,Mpa,lbf/in2)

displacement unit: (m, mm, in)

11. Test report: the test report can be programmed and printed in accordance with the format required by the user, and can be exported WORD or EXCEL file;

12. Safety protection: when exceeding 2 ~ 10% of maximum load, automatic realization of safety protection;

13, can automatically detect and calculate the mechanical performance index of the sample, can also be artificial intervention analysis process, according to the requirements of relevant standards to modify automatic analysis results, in order to improve the accuracy of the data;



Random standard accessories:



1. Load sensor: American AMCELLDS high precision weight, 1000N (100Kg) -one unit

2. Displacement sensing system: high precision photoelectric encoder inductor and sensor displacement encoder -one set

3. Data acquisition card: TH2000 measurement control board -one piece

4. Test software: TM2101 English/Chinese simplified/traditional three-in-one measurement control system -one set

5. Power system: Taida servo motor and control system -three sets

6. Transmission system: Taiwan precision gearbox and Taiwan precision screw drive -one set

7, test smelting equipment: 90 ° 180 ° peel fixture -one set

8. Test computer: lenovo business desktop computer (computer desk customer's own) -one unit

9. Printer: color ink jet printer -one unit





See pictures below

(subject to equipment)

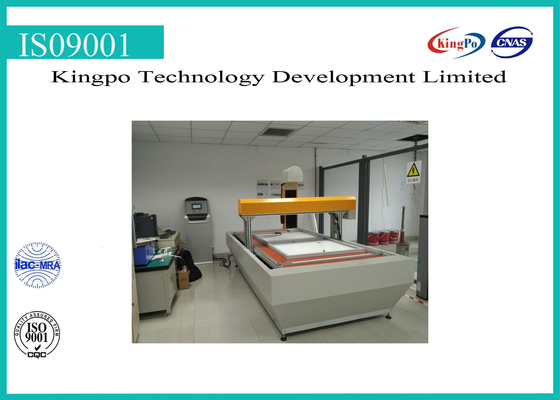

1000N Electrical Safety Test Equipment , Photovoltaic Battery Backplate Two - Way Peel Tester 0



1000N Electrical Safety Test Equipment , Photovoltaic Battery Backplate Two - Way Peel Tester 1
