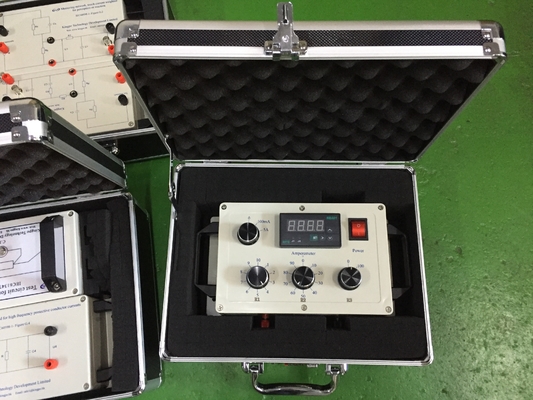

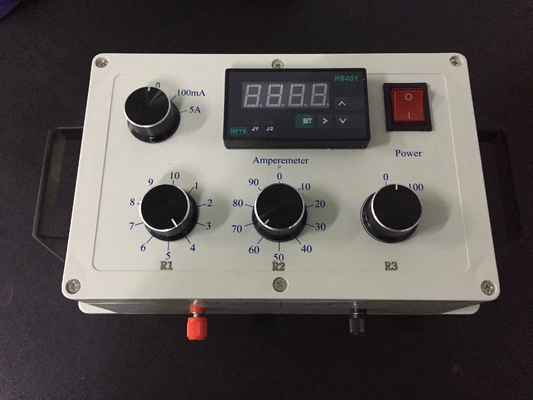

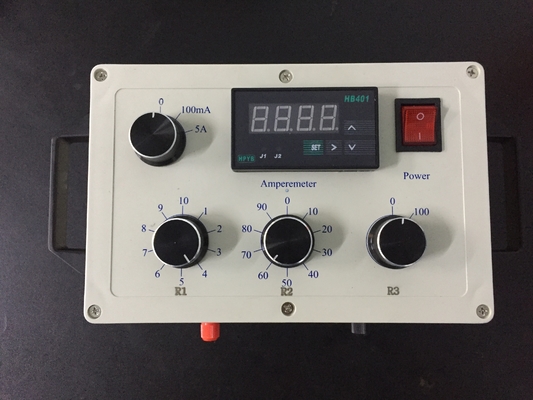

Circuit Light Testing Equipment Rectifying Effect Of High Pressure Sodium And Metal Halide Lamps

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Circuit Light Testing Equipment Rectifying Effect Of High Pressure Sodium And Metal Halide Lamps

Product Details:

Place of Origin: China
Brand Name: KingPo
Certification: Calibration certificate
Model Number: IEC60598-1-Figure C.3

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 50 pcs per month
Detailed Product Description
Standard: IEC60598-1-Annex C D: 100 A, 600 V
R: 0-200 Ω Weight: 2.5kg
High Light:

temperature rise test equipment

,

led testing equipment

,

IEC60598-1-Annex C Circuit Light Testing Equipment



Abnormal circuit conditions , IEC60598-1-Annex C

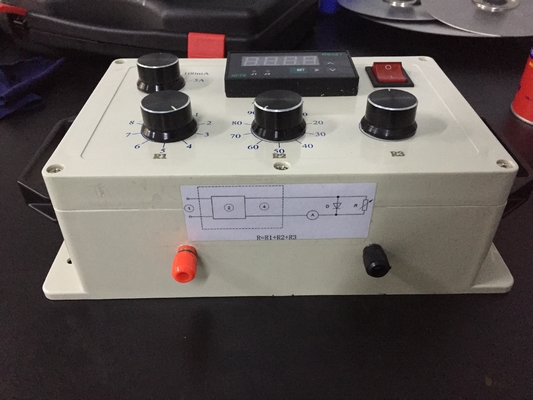

Figure C.3 – Circuit for testing rectifying effect of some high pressure sodium and some metal halide lamps

Luminaires for some metal halide lamps and some high pressure sodium vapour lamps which, according to the lamp safety standard IEC 62035, can lead to ballast, transformer or starting device overloading (Figure C.3).
The lamp in the luminaire is replaced by the test circuit as shown in Figure C.3. The test is commenced with the test circuit, luminaire and control gear stabilised at the ambient temperature of the draught-proof enclosure. By varying the resistor R, the lamp current is adjusted to a value equal to twice the normal lamp current. No further adjustment of R is made.

If steady conditions are reached before the temperature limits of 12.5.2 are exceeded, and for thermally protected control gear the protection device has not operated, then R shall be adjusted to increase the current in suitable steps, e.g. 10 % increments. Care is taken to achieve steady conditions as far as possible at each step. In all cases, the current shall not be adjusted above a value equal to three times the normal lamp current.

NOTE 1 For circuits protected by a self-resetting protection device a number of on/off cycles may need to
occur before maximum temperatures have been reached

NOTE 2 Luminaires incorporating the following specific categories of metal halide and high pressure
sodium lamps are exempt from the above rectification test requirements:

Circuit Light Testing Equipment Rectifying Effect Of High Pressure Sodium And Metal Halide Lamps 0

Figure C.3 – Circuit for testing rectifying effect of some high pressure sodium and some metal halide lamps

Circuit Light Testing Equipment Rectifying Effect Of High Pressure Sodium And Metal Halide Lamps 1



 Circuit Light Testing Equipment Rectifying Effect Of High Pressure Sodium And Metal Halide Lamps 2

Circuit Light Testing Equipment Rectifying Effect Of High Pressure Sodium And Metal Halide Lamps 3

Circuit Light Testing Equipment Rectifying Effect Of High Pressure Sodium And Metal Halide Lamps 4
