IEC 60529 IP5X6X Dust Test Chamber / Environmental Testing Machine

IEC 60529 IP5X6X Dust Test Chamber / Environmental Testing Machine

MOQ: 1
Price: To be Quoted
Standard Packaging: safety carton pack or plywood box
Delivery Period: 30 working days
Payment Method: T/T
Supply Capacity: 25 sets per month
Detail Information
Place of Origin
China
Brand Name
Kingpo
Certification
Calibration Certificate
Standard:
IEC 60529,ISO20653
Can Perform:
Long Time 85 °C/85 % RH Test
Power:
380V, 50Hz +/- 10%, Three-phase-five-wire System
Humidity Sensor Dry And Wet Bulb Sensor:
Resolution: ± 1%
Specimen Power Outlet:
Ust-proof Socket AC220V 16A
Temperature Range:
Ambient To+50°C
Highlight:

Dust Testing Equipment

,

Dust Measurement Equipment

Product Description

IEC 60529 IP5X6X Dust Test Chamber Environmental Tester

Product Description



Sand and dust test chambers are made for the simulation of dust and sand conditions.These test chambersare used for evaluating the effects of dust-filled environments in order to validate product seal integrity. Dust chambers are utlized in automotive, Electro-technical products, Materiel, Coatings, Solar energy, etc.



Main technical parameters

Model K-800 KP-X1000 KP-X1500 KP-X2000
Internal dimensions(mm) 800*1000*1000 1000*1000*1000 1000*1500*1000 1000*2000*1000
Overall dimensions(mm) 1040*1450*1960 1200*1450*1960 1250*1900*1960 1300*2400*1960
Temperature range Ambient to+50°C
Relative Humidity <30%RH
Normal wire diameter 50um
Normal width of a gap between wire 75um
The talcum powder amount 2kg~4kg/m3
Fight time 0~99h59m
Fan cycle time 0~99h59m
Specimen power outlet Dust-proof socket AC220V 16A
Controller 5.7'' programmable color display touch scrren controller
Vaccum system Equipped with a pressure gauga,air filter,pressure regulater,connecting tube
Circulating fan Enclosed alloy low-noise motor,multi-vane centrifugal fan
Heating system Independent Nichrome electronic heating system
Powersupply 380V50HZ
Safety devices Electric leakage, short circuit,over-temperature,motor overheating over current protection/Power failure memory function for controller
Standard IEC 60529,ISO20653



Standard features

♦Temperature control and display unit

♦Humidity control and display unit

♦French TECUMSEH compressor cooling unit

♦Environment friendly refrigerant R404A & R23

♦Humidification system with external isolation, stainless steel surface evaporation humidifier

♦Heating element is Nichrome heater

♦Circulation with low noise centrifugal wind fan

♦Temperature sensor PT-100, Resolution: ± 0.001 ℃

♦Humidity sensor dry and wet bulb sensor, Resolution: ± 1%

♦Build- in water reservoir

♦Programmable color LCD touch screen controller

♦Viewing window with interior lighting

♦Test hole with silicone screw plug.

♦2 pieces of adjustable and removable mesh shelving.

♦Bottom install 4 castors for ease moving, andwith brakes function

♦R-232 (R-485) interface, PC Link, communication with LAN network interface

♦Programs reach to 999 groups and 999 sections

♦Safety protection system

♦Interior material is high quality SUS304 stainless steel

♦Exterior material is steel plate with protective coating

♦Thermal insulation is Polyurethane foam

♦Automatic water supply, water purification system

♦Silicon seal for door

♦Can perform long time 85 °C/85 % RH tests

♦380V, 50Hz +/- 10%, three-phase-five-wire system

♦Standard and features

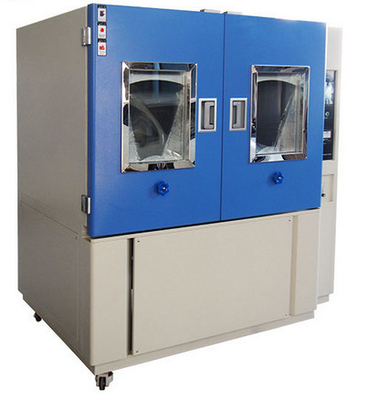

IEC 60529 IP5X6X Dust Test Chamber / Environmental Testing Machine 0




IEC 60529 IP5X6X Dust Test Chamber / Environmental Testing Machine 1 IEC 60529 IP5X6X Dust Test Chamber / Environmental Testing Machine 2

IEC 60529 IP5X6X Dust Test Chamber / Environmental Testing Machine 3IEC 60529 IP5X6X Dust Test Chamber / Environmental Testing Machine 4
