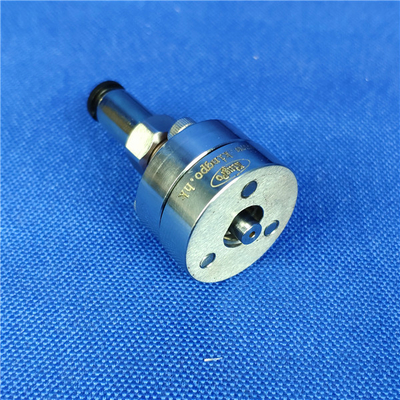

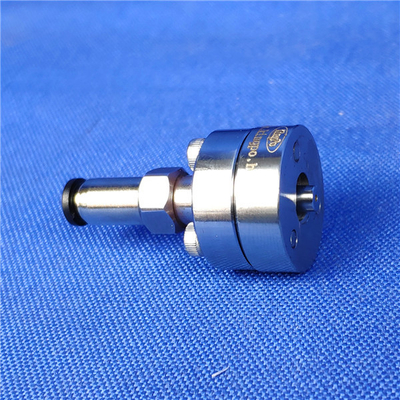

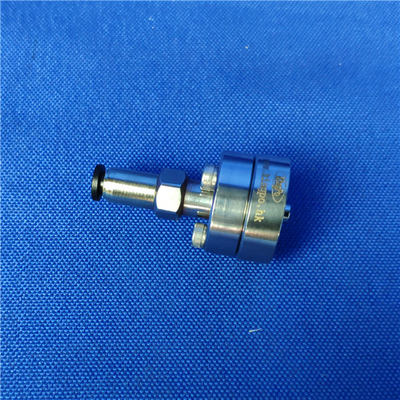

ISO80369-7 Figure C.4 Male Reference Luer Lock Connector For Testing Female Luer Connectors Leakage

ISO80369-7 Figure C.4 Male Reference Luer Lock Connector For Testing Female Luer Connectors Leakage

MOQ: 1
Price: To be quoted
Standard Packaging: safety carton pack or plywood box
Delivery Period: 7 working days
Payment Method: T/T
Supply Capacity: 10 pcs per month
Detail Information
Place of Origin
china
Brand Name
kingpo
Certification
iso9001 ce
Model Number
ISO 80369-7 Fig C.4
Brand Name:
Kingpo
Material:
Hardness Steel
Standard:
ISO 80369-7
Hardness:
HRC58-62
Warranty:
1 Year
Product Name:
LUER GAUGE
Highlight:

Figure C.4 Luer Lock Connector

,

Hardness Steel Luer Lock Connector

Product Description

ISO 80369-7:2017 Small-bore connectors for liquids and gases in healthcare applications - Part 7: Connectors for intravascular or hypodermic applications







ISO80369-7 Figure C.4 Male Reference Luer Lock Connector For Testing Female Luer Connectors Leakage 0



a Maximum distance from tip of male luer lock connector to the first complete profile of the internal thread
(see Table B.3, dimension t).
b Double-start, right-hand thread of 2,5 mm pitch.
NOTE : R may be 0,5 mm (maximum) × 45° chamfer.





Figure C.4 — Male reference luer lock connector for testing female luer connectors for leakage, separation from unscrewing, stress cracking and non-interconnectable characteristics



ISO80369-7 Figure C.4 Male Reference Luer Lock Connector For Testing Female Luer Connectors Leakage 1



ISO80369-7 Figure C.4 Male Reference Luer Lock Connector For Testing Female Luer Connectors Leakage 2
