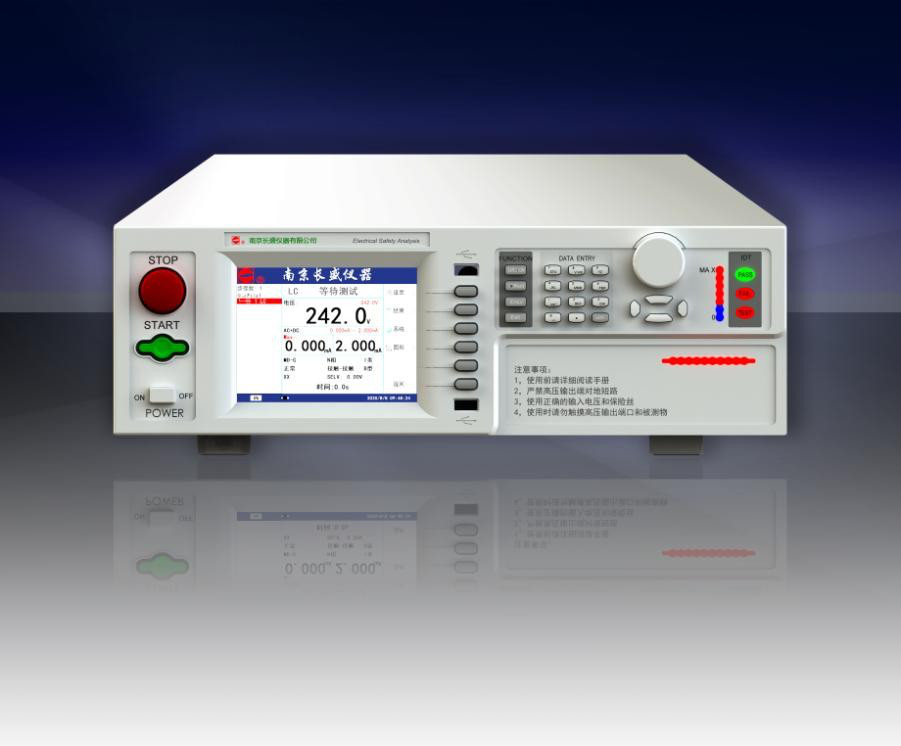

IEC60601&IEC62368 Programmable Leakage Current Tester

IEC60601&IEC62368 Programmable Leakage Current Tester
IEC60601&IEC62368 Programmable Leakage Current Tester

Large Image :  IEC60601&IEC62368 Programmable Leakage Current Tester

Product Details:
Place of Origin: China
Brand Name: Kingpo
Certification: Calibration Certificate
Model Number: CS9975-SIW
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: To be Quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 10 sets per month
Detailed Product Description
Power: Electronic,Hydraulic,AC 1 Phase 220V 50Hz 500W Usage: Auto Testing Machine,Drop Test Equipment,Plastic Testing Machine
Product Name: International Standards ASTM D3574 PU Foam IFD Testing Equipment Weight: 13kg
High Light:

IEC60601 Leakage Current Tester


IEC62368 Leakage Current Tester


Programmable IEC62368 Test Equipment

Use 5.6 inch TFT (640*480) to display the setting parameters and test parameters, and the display content is eye-catching and rich;
 The tester can store the test results in the format of EXCEL table in U;
 Software can be upgraded through U disk;
 Compliance leakage current test Human body network: GB9706.1(IEC60601-1)/GB4793.1(IEC61010-1)/GB4706.1(IEC60335-1)/GB4943.1(IEC60950-1)/
GB8898(IEC60065)/GB7000.1(IEC60598-1)/GB/T12113(IEC60990) standard;
Leakage current provides four detection methods of AC, AC+DC, PEAK, DC;
Provide auxiliary power supply required for medical equipment testing;
Bilingual operation interface in Chinese and English to adapt to the needs of different users;
 Support keyboard lock operation to prevent irrelevant personnel from modifying test parameters;
Support conversion between test files, explanation: when there are many test steps, you can distinguish by file name, which is convenient for parameter adjustment in the later period;
Can be equipped with CS26045Y test box to realize multi-point scanning test;
Support scan code gun function;
 Standard PLC interface, RS232 interface, optional LAN interface, RS485 interface, USB interface.IEC60601&IEC62368 Programmable Leakage Current Tester 0IEC60601&IEC62368 Programmable Leakage Current Tester 1
IEC60601&IEC62368 Programmable Leakage Current Tester 2IEC60601&IEC62368 Programmable Leakage Current Tester 3IEC60601&IEC62368 Programmable Leakage Current Tester 4
Model CS9975-SIW













Leakage current




range 30.0V~300.0V
Precision ±(2% reading +2V)
Resolution 0.1V
Maximum external isolated power supply 6000VA
Current gear 20uA, 200uA,2mA,20mA
Detection method AC,RMS,PEAK,DC
Current upper limit setting 00.1uA~20.00mA
Current lower limit setting 00.0uA ~Current upper limit
MD Human Network





GB4793.1(IEC61010-1)/ GB4706.1(IEC60335-1)/ GB4943.1(IEC60950-1)/ GB8898(IEC60065)/ GB7000.1(IEC60598-1)/


Voltage rise time Can not be set
testing time (0.0, 0.3~999.9)s 0=continuous test
Intervals (0.0~999.9)s 0=interval time off





Leakage current meter

Measuring range 00.0uA ~ 20.00 mA
Resolution 20 uA 档:0.1uA,200 uA 档:0.1uA,2mA 档:1uA,20mA 档:10uA



measurement accuracy

AC I≥5 uA ±(2%rdg+0.5%fs) I≥50 uA ±(2%rdg+0.5%fs)
DC I≥5 uA ±(2%rdg+0.5%fs) I≥50 uA ±(2%rdg+0.5%fs)
AC+DC I≥5 uA ±(2%rdg+0.5%fs) I≥50 uA ±(2%rdg+0.5%fs)
PEAK I≥50 uA ±(2%rdg+2%fs)



Leakage voltage meter

range 30.0V~300.0V
Precision ±(2%+2V)
Resolution 0.1V
Display value Root mean square



range 0~999.9s
Resolution 0.1s
Precision ±(1%+50ms)
Memory group 30
Test step 99
Input power supply voltage 220V±10%,50Hz
Import the memory file to the U disk, and export the U disk to the instrument support
Export storage results to U disk support
Standard interface RS232 interface, PLC interface
