| MOQ: | 1 |
| Price: | To be quoted |
| Standard Packaging: | safety carton pack or plywood box |
| Delivery Period: | 7 work days |
| Payment Method: | T/T |
| Supply Capacity: | 10 set/ month |

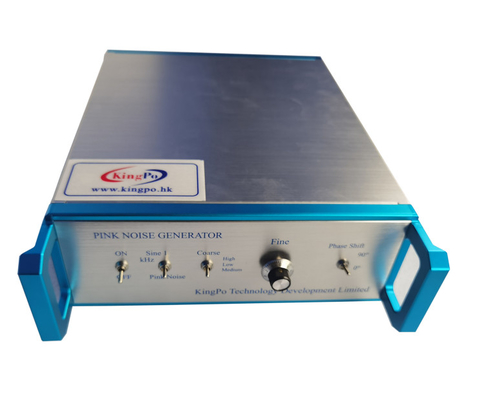

This Pink Noise Generator meets the requirements for pink noise in IEC 60065, Clause 4.2 and 4.3 and IEC 62368-1, Annex E.
It is especially developed for all types of tone frequency amplifiers,when you need 2 channels/phase 90°
Technical Specification
•Pink noise or sine wave 1000 Hz (not at the same time)
•Two output channels when testing
•The channels can be phase shifted to 0° or 90°
•Fine adjustments of output voltage

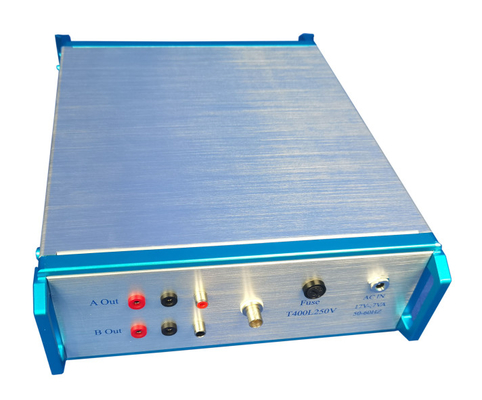

•RCA and 4 mm banana type output connectors
•Audio-cables for test object included (RCA and 3,5 mm phono)
•Output signal according to IEC 60065 Annex C, fig. C1 (IEC60268)
•Amplitudes of sine wave and pink noise according to table below:
Output Voltage Sine wave 1 kHz Filtered pink noise
Low: 0-100 mV/1 kohm 0-35 mV rms/1 kohm
Medium: 0-1 V/1 kohm 0-350 mV rms/1 kohm
High: 0-5 V/1 kohm 0-1,7 V rms/1 kohm
Pink Noise Generator Manual.pdf
|
|
