ISO 80369-7 Figure C.2 Male Reference Luer Slip Connector and C.4 Male Luer Reference Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | Kingpo |
| Certification: | Certificate of ISO17025 |
| Model Number: | ISO 80369-7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | To be quoted |
| Packaging Details: | safety carton pack or plywood box |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 pcs per month |
|
Detail Information |
|||
| Brand Name: | Kingpo | Material: | Hardness Steel |
|---|---|---|---|
| Standard: | ISO 80369-7 | Hardness: | HRC58-62 |
| Warranty: | 1 Year | Test Purpose: | Luer Needle And Syringe Testing |
| High Light: | ISO 80369-7 C.4 Male Luer Reference Connector,C.4 Male Luer Reference Connector,C.2 Male Reference Luer Slip Connector |
||
Product Description

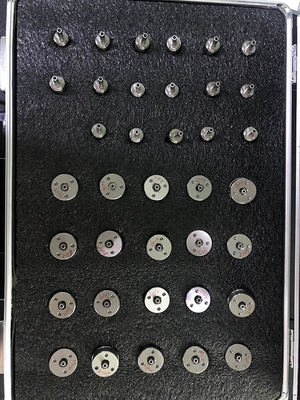

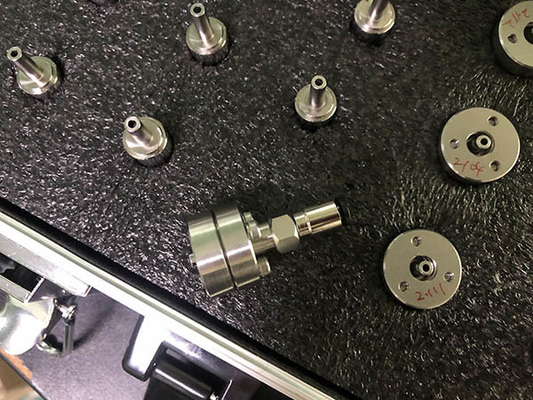

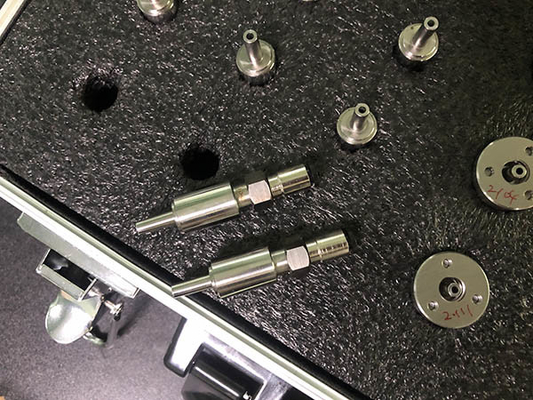

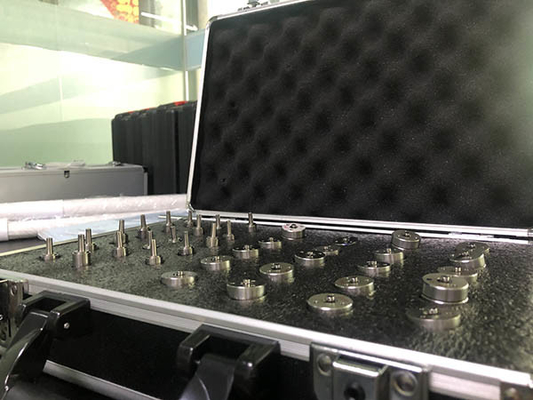

ISO 80369-7 Figure C.2 Male Reference Luer Slip Connector and C.4 Male Luer Reference Connector
ISO 80369-7 C.4 Male Luer Reference Connector
Compatibility/Interchangeability:
Between ISO 594/2 Fig 7 and ISO 80369-7 Fig C.4
The ISO 594/2 Figure 7 Male Luer Reference Conical Fitting is replaced by ISO 80369-7 Fig C.4 Male Luer Reference Connector. The ISO 80369-7 Figure C.4 is identical to the ISO 594/2 Figure 7 Reference Fitting. ISO 80369-7 Fig C.4 and ISO 594/2 Fig 7 are completely interchangeable.
Design Details:
Keeping with the requirements of ISO 80369-7, the Reference Connectors we produce are from hardened stainless steel. The design details might vary by manufacturer so please communicate with us to make sure you understand the configuration before you place the order. The ISO 80369 Reference Connectors are an integral part of Luer needle and syringe testing.
It can perform tests:
The ISO 80369-7 Figure C.4 Male Luer Reference Connectors are used for testing Female Luer Connectors for: Leakage; Separation from unscrewing; Stress cracking; and Non-interconnectable characteristics in the ISO 80369-7; Clause 6 specified tests.
Below is the list of tests which are accomplished by using the ISO 80369-7 Fig C.4 Male Luer Reference Connector:
ISO 80369-7 Clause...
4.1: Non-Interconnectivity
6.1: Fluid Leakage
6.2: Sub-Atmospheric Pressure Air Leakage
6.3: Stress Cracking
6.5: Resistance To Separation From Unscrewing
ISO 80369-7 Fig C.2 Male Reference Luer Slip Connector
Compatibility/Interchangeability Between ISO 594/1 Figure 5 and ISO 80369-7 Figure C.2:
ISO 80369-7 Figure C.2 Male Reference Luer Slip Connector is 100% backward compatible with the ISO 594/1 Figure 5 Reference Fitting; so it can be certified and used in ISO 594/1 designated testing.
If you request a quote for a new ISO 594/1 Fig 5 Reference Connector from us; we will quote an item which will pass both ISO 594 and ISO 80369-7 requirements.
It can perform tests:
The ISO 80369-7 Fig C.2 Male Reference Luer Slip Connector is used for testing Female Luer Connectors for: Leakage; Separation from axial load; Stress cracking; and Non-interconnectable characteristics in the ISO 80369-7; Clause 6 specified tests.
Design Details:
Keeping with the requirements of ISO 80369-7,the Reference Connectors we produce are from hardened stainless steel.The design details might vary by manufacturer so please communicate with us to make sure you understand the configuration before you place the order. The ISO 80369-7 Fig C2 Male Reference Luer Slip Connector is an integral part of Luer needle and syringe testing.
