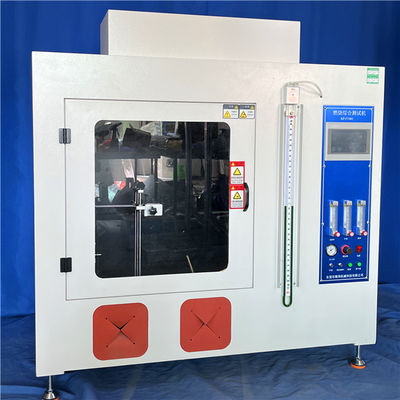

Needle Flame Tester , 50 W flames tester , 500W flames tester, Flammability Testing Equipment

1.50 /500 W flames tester

Brief Introduction

Horizontal Burning Test:UL HB,IEC 60695-11-10,IEC 60707,ISO 1210

50W Vertical Burning Test :UL94 V0,V1,V2,IEC 60695-11-10,ISO 1210,IEC 60695-11-4
500W Vertical Burning Test :UL94 5VA,5VB,IEC 60695-11-20,ISO 9770,IEC 60695-11-3
Membrane Material Vertical Burning Test :VTM-0,VTM-1,VTM-2,ISO 9773
Foam Material Horizontal Burning Test:HF-1,HF-2,HBF,ISO 9772

Reference standard of horizontal and vertical burning test are UL94-2006,IEC 60695-11-4 ,IEC 60695-11-3 ,IEC60950;it adopts Bunsen burner in required size and required ignition gas source(methane or propane);exert ignition on the horizontal or vertical specimen at a certain height and ignition exertion angle at regular time;use specimen ignition,lasting time and combustion length to evaluate its combustibility and fire fatalness.

The tester is mainly aimed at evaluating rank of material combustibility at class of V-0 , V-1 , V-2 , HB , 5V ;suitable for research,production and quality testing department of electrical and electronic devices and component parts like lighting equipment,low voltage apparatus,household appliance,machine tool electric appliance,motor-driven machine,electric tool,electronic instrument,suitable for insulating material,engineering plastics and other solid combustible material industry.

Technical Parameter

1, burner:1 set of Bunsen burner at an inside diameter of Φ9.5mm ± 0.3mm
2, test angle:0°,20°,45°manual conversion
3, flame height:20mm ± 2mm ~180mm±10mm adjustable
4, ignition exertion time: 0-999.9s±0.1s adjustable
5, residual flame: 0-999.9s±0.1s,automatic record,suspension by wire
6, residual broil: 0-999.9s±0.1s,automatic record,suspension by wire
7,  gas: 98% methane gas
8, Flow and Pressure:double Flowmeter and pressure gauge(gas and air)
9, temp. test range:0~1000℃
10, flame temp. requirement:from 100℃±5℃ rise up to 700℃±3℃ within 44±2s(50w)  54s±2s(500w)
11, thermocouple:K tyoe Φ0.5mm accuracy±0.05%.
12, test procedure:manual control with independent ventilation
13, Reference standard:UL 94-2006,IEC 60695-11-3,IEC 60695-11-4
14, studio area:bigger than 0.75 cubic meter(size can be customized)
15, external dimension:1200mmW×700mmD×1400mmH
16, control:PLC touch screen+button type double control system,high accuracy temperature gauge,independent electrical control system,strong anti-interference.
17, operation with high efficiency:One-touch operation ,fast and highly effectively

2.Needle Flame Tester

Brief Introduction

Needle Flame Tester is a simulation experiment project using non-flame ignition source in accordance to standard requirements of IEC60695 -11-5.

Technical parameters:

The position of the calibration copper block can be adjusted freely

1.500 w flowmeter
2.Needle Flame flowmeter
3.50 w flowmeter
4.50W/500W gas pressure gauges
5.. 50W/500W regulating valve
