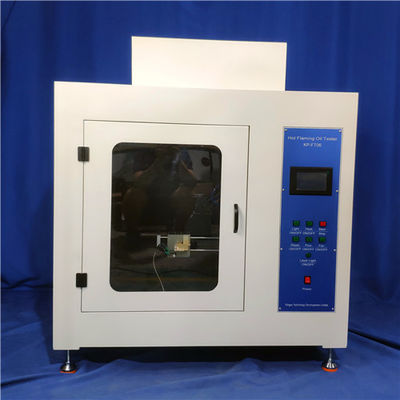

Hot Flaming Oil Tester , Hot Flaming Oil Flammability Test Chamber IEC 60950 Annex A.3

Hot Flaming Oil Tester , Hot Flaming Oil Flammability Test Chamber IEC 60950 Annex A.3
Hot Flaming Oil Tester , Hot Flaming Oil Flammability Test Chamber IEC 60950 Annex A.3 Hot Flaming Oil Tester , Hot Flaming Oil Flammability Test Chamber IEC 60950 Annex A.3 Hot Flaming Oil Tester , Hot Flaming Oil Flammability Test Chamber IEC 60950 Annex A.3 Hot Flaming Oil Tester , Hot Flaming Oil Flammability Test Chamber IEC 60950 Annex A.3

Large Image :  Hot Flaming Oil Tester , Hot Flaming Oil Flammability Test Chamber IEC 60950 Annex A.3

Product Details:

Place of Origin: China
Brand Name: KingPo
Certification: ISO17025 Calibration Certificate
Model Number: KP-FT06

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 3 sets per month
Detailed Product Description
Standard: IEC60950-1:2013 Annex A.3. Volume Of Ladle: >10mL
Oil Burning Time: 1 Min Oil Pouring Speed: 1 Ml/s
High Light:

Hot Flaming Oil Tester

,

Hot Flaming Oil Flammability Test Chamber

,

Hot Flaming Oil Test Device

Hot Flaming Oil Tester , Hot Flaming Oil Flammability Test Chamber IEC 60950 Annex A.3



Product overview:

The hot flaming oil test device conforms to IEC60950-1:2005 and IEC60950-1:2013 clause 4.6.2, Annex A.3. It is used to simulate that the flammable liquids used in electrical and electronic equipment may ignite due to overheating and leak out of the fire protection enclosure, causing electrical fires and endangering the reliable operation of the equipment and personal safety.



Test principle:

Fill 10mL of flammable liquid with the specified performance (average calorific value 38MJ/L, mass per unit volume between: 0.845g/mL~0.865g/mL, flash point: 43.5℃~93.5℃) in the metal ladle, after heating to the distillate fuel oil’s ignition point and burning 1mim, the motor drives the spoon to rotate at a certain height (100mm) and a certain flow rate (1mL/s), and then steadily pour the flammable liquid on the center of the opening of the sample (fire protection enclosure). The fire protection performance of the test product is evaluated by whether the ignition bedding at the specified distance (50mm) and with the specified density (40g/m2) under the test product is ignited.



Technical parameters:



Parameter model KP-FT06
Working voltage Match client's local power supply requirements
Test oil Average calorific value 38MJ/L, mass per unit volume between: 0.845g/mL~0.865g/mL, flash point: 43.5℃~93.5℃
Volume of ladle >10mL
Hot flaming oil burning time 1 min (1s~99999s can be preset)
Hot flaming oil pouring speed 1 ml/s
Hot flaming oil pouring height 100mm
Hot flaming oil pouring time 10s (1s~99999s can be preset)
Ignition bedding material Bleached CHEESECLOTH of approximately 40 g/m²
Distance between ignition bedding material and sample Ignition bedding material is under the sample about 50mm
Test area background color Black
Equipment size & weight 1150mm* 750mm* 1350mm,150kg


Hot Flaming Oil Tester , Hot Flaming Oil Flammability Test Chamber IEC 60950 Annex A.3 0

Hot Flaming Oil Tester , Hot Flaming Oil Flammability Test Chamber IEC 60950 Annex A.3 1
