Grab And Drag Six Axis Cooperative Robot BRTIRXZ0805A
Product Details:
| Brand Name: | KINGPO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Arm Length(mm): | 870 | Repeatability(mm): | ±0.1 |
|---|---|---|---|
| Loading Ability(KG): | 5 | Power Source(KVA): | 5.5 |
| Net Weight(KG): | 26 | ||
| High Light: | Grab And Drag Cooperative Robot,Six-Axis Cooperative Robot,Grab And Drag Robot |
||
Product Description
Grab And Drag Robot
Product details

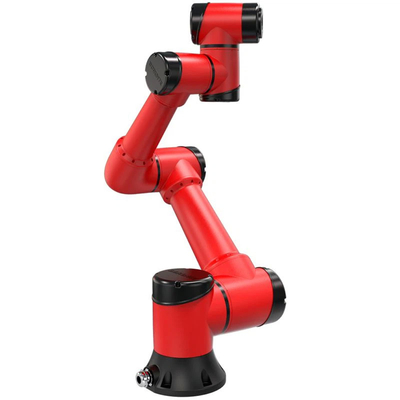

BRTIRXZ0805A is a six-axis cooperative robot with drag-teaching function independently developed by BORUNTE ROBOT CO,. LTD. with a maximum load of 5KG and a maximum arm length of 870mm. It has the functions of collision detection and track reproduction. It is safe and efficient, intelligent and easy to use, flexible and light, economical and reliable, low power consumption and other characteristics, which greatly meet the needs in man-machine cooperation. Its high sensitivity and quick response can be applied to high density flexible production line, to meet the needs of product packaging, injection molding, loading and unloading, assembly and other operations, especially for man-machine collaborative work application demand. The protection grade reaches IP54. Dust-proof and water-proof. The repeat positioning accuracy is ±0.1mm.
Main Specification
Arm Length(mm): 870
Repeatability(mm): ±0.1
Loading Ability(KG): 5
Power Source(KVA): 5.5
Net Weight(KG): 26
| Item | Range | Max.Speed | |
| Arm | J1 | ±180° | 120°/S |
| J2 | ±160° | 120°/S | |
| J3 | -65°/+250° | 120°/S | |
| Wrist | J4 | ±180° | 180°/S |
| J5 | ±180° | 180°/S | |
| J6 | ±360° | 180°/S | |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
