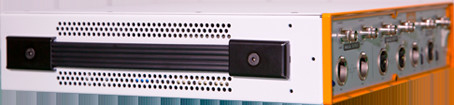

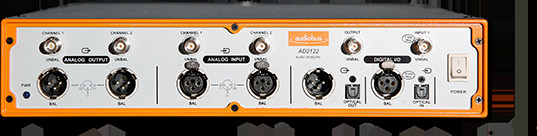

AD2722 Audio Analyzer with Ultra Low Noise 1M Point FFT for Benchmarking AP Audio Testing
  • name
  • name
  • name

AD2722 Audio Analyzer with Ultra Low Noise 1M Point FFT for Benchmarking AP Audio Testing

MOQ: 1
Detail Information
Product Description
Detail Information
Place of Origin
DONGGUAN
Brand Name
audiobus
Certification
ISO9001
Model Number
AD2722
Durability:
High/Medium/Low
Function:
Testing
Maintenance:
Easy/Difficult
Portability:
Portable/Non-Portable
Power Supply:
AC/DC/Battery
Safety Features:
Overload/Short Circuit Protection
Size:
Small/Medium/Large
Software:
Compatible/Upgradable
Type:
Test Equipment
Warranty:
Yes/
Highlight:

AD2722 Audio Analyzer

,

Ultra Low Noise Audio Analyzer

,

Benchmarking AP Audio Tester

Product Description
AD2722 Audio Analyzer - Ultra Low Noise 1M Point FFT Benchmarking AP Audio Tester
The AD2722 represents the pinnacle of audio analyzer technology, offering unmatched performance and comprehensive functionality. This advanced instrument combines exceptional measurement capabilities with versatile digital I/O interfaces and intuitive software for rapid, accurate audio testing.
With industry-leading -120dB residual distortion (5dB lower than the SYS-2722 standard) and up to 1MHz bandwidth, the AD2722 outperforms all competing audio analyzers while offering 1.2M point FFT spectrum analysis.
Key Technical Advantages
Signal Source: 5Hz–204kHz (analog), 0.1Hz–80kHz (DAC) with .wav format playback capability
Analog Bandwidth: Up to 1000KHz single channel, 500KHz dual channel simultaneous operation
Signal Source Distortion: THD+N: -120dB (20Hz–20KHz)
FFT Analysis: 1.2M point FFT with simultaneous oscilloscope and test data acquisition
Background Noise: Ultra-low 1μV analog noise floor
Performance Specifications
Parameter Specification
Residual Distortion -120dB (typical)
FFT Length 1.2M points
Analog Bandwidth Up to 1MHz
Background Noise 1μV
Frequency Range 5Hz–204kHz (analog), 0.1Hz–80kHz (DAC)
Tags:

high frequency head and torso simulator,

hf hats head and torso simulator,

AD2722 Audio Analyzer
