ISO9001 Certified 16 Channel Audio Analyzer for Type C Connector and Headset Testing with One-Button Speaker Acoustics and 8 PCBA Plug and Test
  • name
  • name

ISO9001 Certified 16 Channel Audio Analyzer for Type C Connector and Headset Testing with One-Button Speaker Acoustics and 8 PCBA Plug and Test

MOQ: 1
Detail Information
Product Description
Detail Information
Place of Origin
DONGGUAN
Brand Name
KINGPO
Certification
ISO9001
Model Number
KP1535
Durability:
High/Medium/Low
Function:
Testing
Maintenance:
Easy/Difficult
Portability:
Portable/Non-Portable
Power Supply:
AC/DC/Battery
Safety Features:
Overload/Short Circuit Protection
Size:
Small/Medium/Large
Software:
Compatible/Upgradable
Type:
Test Equipment
Warranty:
Yes/
Highlight:

headset test sound analyzer

,

type c connector sound analyzer

Product Description
ISO9001 Sound Analyzer Type C Connector / Headset Test Solution
Type C Connector / Headset Test Solution
Our Type-C headset test system is an advanced quality control solution designed specifically for Type-C headset manufacturing. When integrated with our proprietary test software, this system delivers stable, rapid testing of critical parameters including speaker acoustics and microphone performance.
R&D Background
Developed to meet industry demands for efficient quality assurance, our Type-C headset test solution features intuitive software that simplifies staff training while ensuring comprehensive test reporting. All test results are automatically saved, facilitating data traceability and enhancing overall production management efficiency.
Our innovative 16-channel test instrument enables simultaneous testing of 8 Type-C semi-finished PCBAs, delivering exceptional stability and precision. The system's advanced rub & buzz detection capabilities allow it to effectively replace manual listening by experienced technicians.

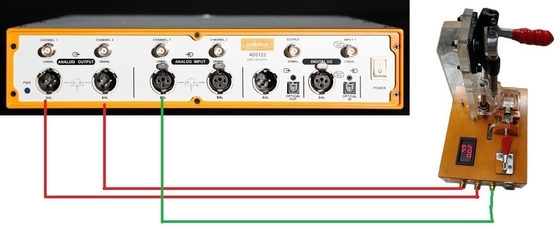

ISO9001 Certified 16 Channel Audio Analyzer for Type C Connector and Headset Testing with One-Button Speaker Acoustics and 8 PCBA Plug and Test 0
Test Parameters
  1. Frequency Response Curve (Sensitivity)
  2. Polarity Curve
  3. Signal to Noise Ratio
  4. Rub & Buzz Detection
  5. Microphone Frequency Response Curve
  6. THD Curve
  7. Left and Right Headphone Balance
  8. Left and Right Channel Separation
  9. Product Operating Current
  10. Microphone Distortion Curve
System Features
Easy Operation: User-friendly Chinese interface
Comprehensive Testing: One-button testing for speaker and microphone acoustic parameters
Stable Performance: Reliable testing with 8 PCBA plug-and-test capability
Multi-Channel: Supports 16 channels / 8 PCBA simultaneous testing
High Efficiency: 8 PCBA inspections completed in 20 seconds (2.5s per unit)
Precision Accuracy: Maintains detection accuracy while maximizing efficiency
Advanced Detection: Accurate and rapid abnormal sound testing replaces manual listening
Cost-Effective: Helps companies reduce operational costs
User Interface
ISO9001 Certified 16 Channel Audio Analyzer for Type C Connector and Headset Testing with One-Button Speaker Acoustics and 8 PCBA Plug and Test 1
audio analyzer
