IEC60335-2-2-21.103 Flexing test apparatus of current-carrying hoses
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | KINGPO |
| Certification: | iso9001 |
| Model Number: | KP9911 |
Payment & Shipping Terms:
| Payment Terms: | T/T |
|---|
|
Detail Information |
Product Description
Product Description
Current-Carrying Hoses Flexing Test Device.
Product details:Model KP9911

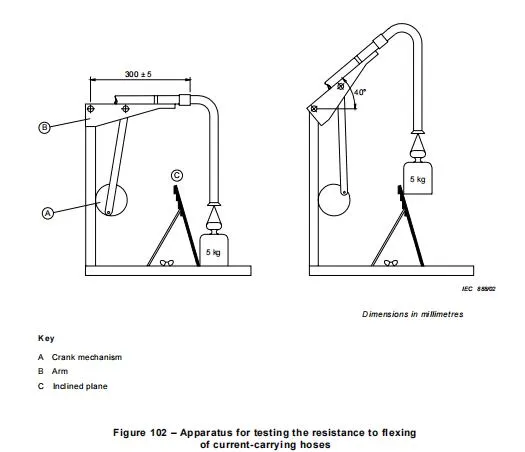

To test current-carrying hoses flexing,conform to IEC60335-2-2 clause 21.102 and figure 102.
Technical Parameters:
Power Supply: AC 220V 50Hz;
Crank Speed: (10±1)r/min (set on PLC touchscreen);
Distance between the fixing point and the support point of the test specimen: (300±5) mm;
Angular position of the mechanical arm with respect to the horizontal: 40°±1°;
Inclination angle of the inclined plane: 3°;
Number of Test Cycles: Set on the touchscreen;
Load Weight: 5KG;
Operation & Control Method: Use of PLC touchscreen.
Product details:Model KP9911
To test current-carrying hoses flexing,conform to IEC60335-2-2 clause 21.102 and figure 102.
Technical Parameters:
Power Supply: AC 220V 50Hz;
Crank Speed: (10±1)r/min (set on PLC touchscreen);
Distance between the fixing point and the support point of the test specimen: (300±5) mm;
Angular position of the mechanical arm with respect to the horizontal: 40°±1°;
Inclination angle of the inclined plane: 3°;
Number of Test Cycles: Set on the touchscreen;
Load Weight: 5KG;
Operation & Control Method: Use of PLC touchscreen.
