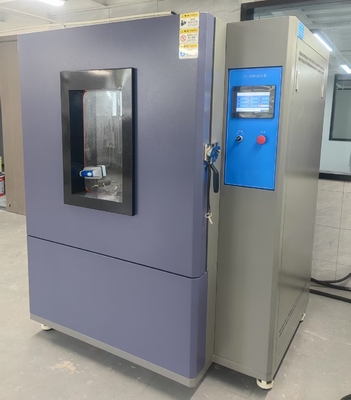

JIS D0203 rain and spray tester for automobile parts
Overview:
This waterproof test equipment is comprehensively designed and manufactured in accordance with the four test types R1, R2, S1 and S2 in the JIS D 0203-1994 and KS R 0015 standards, and is suitable for the moisture resistance and water resistance tests of automotive parts.
This equipment uses stainless steel water pumps for water supply. The water supply volume is controlled in a closed loop by flow sensors, pressure sensors, PLC, frequency converters, etc. The flow sensor feeds back the flow value and pressure value in real time to the PLC. The PLC controls the operating frequency of the frequency converter through calculation. The frequency converter controls the rotational speed of the water pump to achieve the output flow of water supply, thereby reaching the test flow value. The rotational action is driven by a Panasonic servo motor and a reducer.
Technical parameters:
1.Test water temperature: Room temperature.
2. Internal dimensions: 1000X1000X1000mm.
3. Turntable: Maximum load capacity 50KG.
4. Box material: SUS304 stainless steel.
5. Glass observation window for convenient observation of changes in the test samples.
6. Two nozzles, meeting the requirements of Figures R1 and R2.
There are 40 water outlets, which meet the requirements of Figures S1 and S2.
8. The rotation shaft of the water supply pipe forms a 45º Angle with the horizontal line.
9. Rotational speed of the water supply pipe shaft: 23r/min;
10. Sample stage speed: 17r/ min;
11. Water spray flow rate: R1:1.9L/min; R2:3.2L/min S1:24.5L/min S2:39.2L/min
12. Water pressure: R1:0.01Mpa; R2:0.03Mpa S1:0.10Mpa S2:0.30Mpa
13. Test time: 0 to 9999 minutes and 99 seconds can be set.
14. Distance between the water pipe and the sample: 400mm;
15. Control
15.1. The variable frequency automatic regulation mode changes the frequency of the frequency converter through the PLC program to control the speed of the water pump, so as to achieve the set flow and pressure. All data are converted to the control panel for display through the transmitter.
15.2 Setting method: English menu, touchscreen input, 7" color touchscreen;
15.3 Display function: It can display pressure, flow rate, rotational speed, test time, etc.
15.4 Protection functions: Leakage protection, overload protection, short circuit protection;
15.5. Rotation control of water supply pipe shaft: Panasonic servo motor + reducer;
15.6 Rotating stage rotation control: Stepper motor + reducer;
15.7. Stainless steel multistage centrifugal pump water supply;
16. Equipment power supply :380V 50/60Hz, 3kw;
17. according to the standard: JIS D0203,KS R 0015
