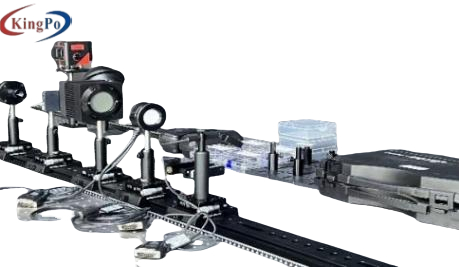

60825-1-2-12 Laser Equipment

60825-1-2-12 Laser Equipment

MOQ: 1
Price: To be quoted
Standard Packaging: safety carton pack or plywood box
Delivery Period: Within 12 weeks after receipt of the advance payment
Payment Method: T/T
Detail Information
Place of Origin
China
Brand Name
Kingpo
Certification
ISO 17025 calibration certificate
Model Number
60825-1-2-12
Warranty Period:
One Year (excluding Consumables)
Product Description

The 60825-1-2-12 laser equipment is a state-of-the-art industrial laser system designed for high-accuracy laser cutting, laser engraving, and laser marking. Engineered to meet ISO 60825-1-2-12 safety standards, this laser machine delivers unmatched performance for manufacturing, automotive, and aerospace applications.


Configure model parameters


1. Instrument and equipment

Product model

Technical index

Centuari

Power Meter Head

True Absolute RMS Measurement



Recording frequency: 10000 Hz



Dual-Function Optical Power and Energy Measurement Module, compatible with 100+ laser detectors; Advanced mathematical processing functions, including power/energy density, fill factor, baseline normalization, etc.



The function can be used in combination and is displayed graphically through the computer interface: RS232, GPIB,  Ethernet



Measurement functions:  average energy, peak-to-peak value, frequency;



Laser Spot Tracking and Positioning. Compliant with US NIST and European CE Standards

PD300-UV

Power Meter Probe

Spectral range: 200-1100nm

Probe aperture: 10mm diameter

Power measurement range: 20pw-300mw

Damage threshold: 100W/cm2

Multi-wavelength calibration guarantees high measurement accuracy

PD300-IR

Power Meter Probe

Spectral range: 700-1800nm

Probe aperture: 5mm diameter

Power measurement range: 5nw-300mw

Damage threshold: 50W/cm2

Multi-wavelength calibration guarantees high measurement accuracy

3A

Power Meter Probe

Spectral range: 0.19-20um

Probe aperture: 9.5mm

Power measurement range: 10uw-3w

Damage threshold: 1kW/cm2

Multi-wavelength calibration guarantees high measurement accuracy

50(150)A-BB-26-V1

Power Meter Probe

Spectral Range: 0.19-20um

Probe aperture: 26mm

Power measurement range: 40mw-150mw

Damage threshold: 17kW/cm2

Multi-wavelength calibration guarantees high measurement accuracy

PE10-C

Fast High-Sensitivity Laser Energy Meter Probe

Spectral response range: 0.15-12 μm

Energy measurement range: 2uJ-10mJ

Probe aperture: φ 12mm

Maximum response frequency: 25KHz

Multi-wavelength calibration guarantees high measurement accuracy

Laser-Induced damage threshold: 0.1J/cm2 (< 100ns pulse width)

PE25-C

Fast High-Energy Laser Energy Meter Probe

Spectral response range: 0.15-3.0μm

Energy measurement range: 8uJ-10J

Probe aperture: φ24mm

Maximum response frequency: 10KHz

Multi-wavelength calibration guarantees high measurement accuracy

Laser-Induced damage threshold: 0.1J/cm2 (< 100ns pulse width)

IS6-D-VIS-V1

Integrating Sphere Power Meter

Suitable for measuring laser sources with large divergence angles

Wavelength range: 0.4–1.1um

Power range: 20uw-30w

Maximum measurable divergence angle: ±60 °

FPS-1

Fast Photodetector Probe

Pulsed Laser Measurement

Wavelength range: 193-1100nm

Rise time: 1.5ns

Detector active area: 1.02mm

Bandwidth: 233MHZ

Measurable pulse width range: >7.5ns

BGS-USB3-SP932U

Laser Beam Profiler

Measure laser transverse mode beam characteristics, including: 2D/3D beam profile visualization, energy distribution,  beam centroid position and dynamics, Beam diameter, ellipticity and other spatial parameters;

Camera display pixels: 2048 x 1536

Pixel size: 3.45 μm x 3.45 μm

Maximum measurable beam size: 34.5um - 5.3mm

Spectral response range: 350-1100nm

SAM-BB-V1 Attenuator

High-LIDT UV-fused silica sampling wedge with 3% reflectivity, wedge + 4×ND filter holder (C-mount) and M6 threaded hole at base

OD=0.3 - 4 The set of six ND filters (OD 0.3, 0.7, 1, 2, 3, 4) features a compact design for space-efficient optical integration, enabling flexible attenuation adjustment and significantly improving alignment productivity.

Wavelength range: 400nm-1100nm

Primary lens diameter: 25.4mm

ND filter damage threshold: 50W/CM2 (recommended operational limit: ≤5W/CM2)

SGM2020-VNIR

Miniature Spectrometer

Function: Spectral measurement of laser and LED light sources

CCD: Sony ILX511B 2048-pixel CCD linear image sensor

Dynamic range: 1300:1

Signal-to-noise ratio: 250:1

Optical path structure: CT optical configuration, with grating wavelength selection ranging from UV to NIR

Wavelength repeatability: ±0.05nm

Wavelength accuracy: ±0.3nm

Wavelength range: 350-1020nm

Entrance slit width: 50 μm; Resolution: 1.9 nm

Integration time: 1ms-65s

Start-up time: < 4s

Maximum USB input power (Vcc): +5.25 VDC

I/O signal voltage: +5.5 VDC

Includes one 1-meter optical fiber with premium-grade fused silica core (200-1100nm wavelength range), 600 um core diameter, and SMA905 connectors on both ends.

Wide Beam Imager VIS Beam Expander

Large-Format Imager

Wavelength range: 350-1100nm

Focal plane size: 45mm

Beam spot measurement range: 10mm-45mm


2. Opto-Mechanical Accessories

RAOB20-1

Guide Rail, Length: 2000 mm

RACA-1

Slide Carriage

BP-A40

Stage-Dedicated Base Plate

AKR10A-45

Manual Rotation Stage

AK25A-6520SR

Manual Aluminum Crossed Roller Linear Stage

PHVP-3

Lift Rod Mount

PHSP12-1A

Connecting rod

PHSP12-1B

Connecting rod

NMHS25.4

Aluminum Alloy Optical Mount

NMHS50.8

Aluminum Alloy Optical Mount

OMLS76-1

Coaxial Lens Mount

APID12-1

Fully-Adjustable Iris Diaphragm

APID12-GD

Fully-Adjustable Iris Diaphragm Mount

AAK6-60R

Modular 6-Axis Translation Stage

BP-A60

Stage-Dedicated Base Plate

PHUP-60

Universal Joint Mount

MJ60

Scissor Lift Table

MJ120

Scissor Lift Table

KSMG10-65

High-Precision Manual Rotation Stage

KSMG15-65

High-Precision Manual Rotation Stage

AKV13A-65Z

Manual Lift Stage

ACSF-M6-M6.35

Adapter Screw

SK

Screw Storage Case

SLSQ-25.4-35P

Sigma Plano-Convex Lens

SLSQ-50.8-100P

Sigma Plano-Convex Lens

SIRC-1

SIGMA Card-Type IR Sensor

SUVC-1

SIGMA Card-Type UV Sensor

CXP20-60

Motorized Linear Stage

TBR100

Motorized Rotary Stage

CZF20-120

Motorized Lift Table

TBG100-80

Motorized Rotary Stage

TMC-USB-4-S242

USB Version Full-Featured Motion Controller, 4-Axis

TMC-USB-2-S242

USB Version Full-Featured Motion Controller, 2-Axis
