High-Frequency Electrosurgical Unit Analyzer Capable Of Testing Up To 1 MHz

Discover the KP-8850 Electrosurgical Unit Analyzer from Kingpo Technology Development Limited, a cutting-edge device designed for precise testing and analysis of high-frequency electrosurgical units (ESUs). Ideal for medical device manufacturers, quality control labs, and biomedical engineers, this analyzer ensures compliance with safety standards like IEC 60601-2-2. Whether you're searching for "electrosurgical unit analyzer," "high-frequency ESU tester," or "ESU power analyzer," the KP-8850 delivers accurate measurements for power, leakage current, and more.

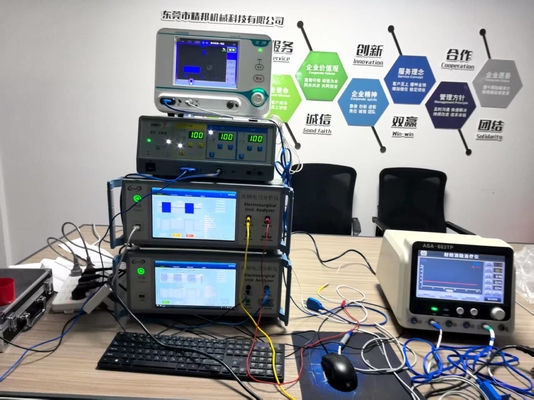

The KP-8850 is a versatile high-frequency electrosurgical analyzer engineered to evaluate the performance and safety of electrosurgical units. It supports monopolar and bipolar modes, offering comprehensive testing capabilities including power output, load power curves, high-frequency leakage current, and REM/CMQ (Return Electrode Monitoring/Contact Quality Monitoring) functions.

• High Precision Measurements: Accurate readings for power (0-500W), voltage (0-5kV peak), and current (2mA-2000mA RMS).
• User-Friendly Interface: 10-inch full-color LCD touchscreen with waveform display, zoom functionality, and intuitive controls.
• Versatile Connectivity: USB, HDMI, LAN ports for data export, external display, and network integration.
• Safety-Focused Design: Built-in grounding, high-voltage warnings, and compliance with international safety standards.

This analyzer is essential for ensuring ESUs operate safely and effectively in surgical environments, minimizing risks like burns or electrical shocks.

• Continuous Mode: For cutting modes with sustained high-frequency output.
• Pulse Mode: Supports three pulse variations for coagulation or blended modes, with pulse durations from 0-500ms.
• Delay Mode: Measures delayed signal outputs.

• Range: 0-6400Ω with 1Ω steps.
• Accuracy: ±1% (≥50Ω), ±3% (≥10Ω & <50Ω).
• Rated Power: Up to 500W for higher loads, supporting external loads for extended testing.

• Range: 2mA-500mA.
• Supports multiple network configurations (Leakage Test 1a, 1b, 2, 3a, 3b) for thorough safety assessments.
• Bandwidth: 10kHz-250MHz.

• Simulates return electrode contact with 0-6400Ω range.
• Quick short-circuit (0Ω) or open-circuit (+∞Ω) selections for rapid verification.

• 500GB internal storage for saving test results, waveforms, and Excel exports.
• Oscilloscope output (1V/A) for external monitoring.
• HDMI extension for large-screen viewing of power distribution curves.

• Dimensions: 500x450x220mm; Weight: 23kg.
• Interfaces: USB x2, Ethernet, HDMI.
• Power Supply: 220VAC, 50/60Hz.

• Power Button: Starts the device.
• USB Ports: For external keyboard/mouse or data transfer.
• Touchscreen: Main interface for operations.
• Ports: Active (surgical electrode), Dispersive 1/2 (neutral electrode), Earth (ground), CMQ 1/2.

• HDMI: External display.
• LAN: Network connection.
• Power Input: 220VAC, 50/60Hz.
• BNC Output: For oscilloscope calibration.
• Foot Switch: Optional trigger.

1. Power On: Connect to grounded outlet, press Power button.
2. Connect EUT (Electrosurgical Unit):
   • Monopolar: Active to surgical electrode; Dispersive 1/2 to neutral electrode.
   • Bipolar: Active to one electrode; Dispersive 1 to the other.
   • Ensure grounding to prevent shocks—high voltages up to 1kV+.
3. Select Mode: Choose Continuous, Pulse, or Delay via touchscreen.
4. Set Parameters: Load impedance, polarity (monopolar/bipolar), thresholds.
5. Start Test: Press "Start" for real-time data and waveforms.
6. Pause/Stop: Analyze waveforms; save results as Excel or images.

For leakage current tests, follow specific network diagrams (e.g., Leakage Test 1a: Active to surgical electrode, Earth grounded).

• Always ground the device and EUT.
• Avoid contact with high-voltage parts—use provided silicone high-voltage cables (rated 2kV+).
• Do not operate in wet environments.
• Follow warnings: High voltage (>1000V) can cause injury or death.

The KP-8850 stands out in the market for its accuracy, ease of use, and comprehensive features. It's perfect for R&D, production testing, and maintenance of electrosurgical devices. With support for pulse modes and external loads, it handles complex scenarios like coagulation testing. Backed by Kingpo's warranty: 1-year free repair (excluding consumables).

Contact us at www.kingpo.hk for pricing, demos, or custom inquiries.

An electrosurgical unit analyzer, like the KP-8850, is a specialized test instrument used to measure the output power, voltage, current, and leakage of high-frequency ESUs. It ensures devices meet safety standards and perform reliably in surgery.

It offers high accuracy: ±2.5% for power and leakage current, ±2% for voltage, and ±1.5% for current. Load impedance is precise to ±1% for most ranges.

Yes, it supports both. Select polarity in the parameters menu for seamless switching.

Absolutely. Save to 500GB internal storage as Excel files or graphs. USB and Ethernet allow easy transfer to PCs.

It includes grounding terminals, high-voltage warnings, and prohibited action icons. Always use grounded outlets and avoid direct contact with live parts.

Yes, via HDMI for extended viewing of waveforms and curves.

Connect electrodes to CMQ ports, set load (0-6400Ω), and test for short/open circuits. Results display contact quality instantly.

One-year free warranty from purchase date (invoice-based). Contact Kingpo for repairs or replacements.

For more details on "electrosurgical analyzer setup" or "ESU leakage testing," explore our resources or reach out!
