JIS D0203 Rain Spray Tester 1000x1000x1000mm for Auto Parts
  • name
  • name
  • name

JIS D0203 Rain Spray Tester 1000x1000x1000mm for Auto Parts

MOQ: 1
Standard Packaging: safety carton pack or plywood box
Delivery Period: 25 working days
Payment Method: T/T
Supply Capacity: 3-5 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
kingpo
Certification
ISO 17025
Model Number
KP-JIS23
Volume（mm）:
1000×1000×1000（D×W×H）
Dimension（MM）:
1200×1500×1950（D×W×H）
Highlight:

Professional JIS D0203 Rain Tester

,

Professional Rain and Spray Tester

,

IP Tester for Automobile Parts

Product Description
JIS D0203 Rain and Spray Tester for Automobile Parts Volume 1000×1000×1000 D×W×H
Product Specifications
Attribute Value
Volume (mm) 1000×1000×1000 (D×W×H)
Dimension (MM) 1200×1500×1950 (D×W×H)
Product Overview

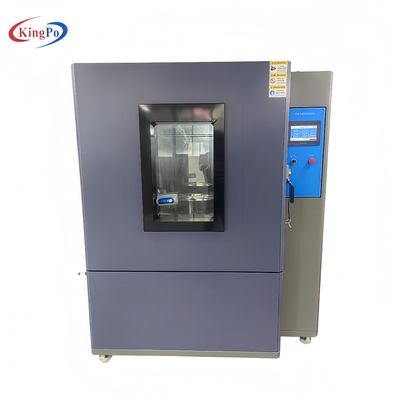

JIS D0203 Rain Spray Tester 1000x1000x1000mm for Auto Parts 0

This waterproof test equipment is designed and manufactured in compliance with JIS D 0203-1994 and KS R 0015 standards, specifically for moisture resistance and water resistance testing of automotive parts. The system features four test types: R1, R2, S1, and S2.

Technical Features
  • Precision-controlled water supply system using stainless steel pumps with closed-loop flow control
  • Real-time monitoring via flow sensors, pressure sensors, PLC, and frequency converters
  • Panasonic servo motor and reducer for precise rotational control
  • Test water temperature: Room temperature
  • Internal dimensions: 1000×1000×1000mm
  • Turntable with maximum load capacity of 50KG
  • Constructed with SUS304 stainless steel
  • Glass observation window for sample monitoring
Performance Specifications
Nozzles: 2 (meeting R1 and R2 requirements)
Water outlets: 40 (meeting S1 and S2 requirements)
Water pipe angle: 45° from horizontal
Water pipe rotation: 23r/min
Sample stage speed: 17r/min
Water spray flow rate: R1:1.9L/min; R2:3.2L/min; S1:24.5L/min; S2:39.2L/min
Water pressure: R1:0.01Mpa; R2:0.03Mpa; S1:0.10Mpa; S2:0.30Mpa
Test duration: Programmable from 0 to 9999 minutes 99 seconds
Water pipe to sample distance: 400mm
Control System
JIS D0203 Rain Spray Tester 1000x1000x1000mm for Auto Parts 1
  • Frequency converter automatic regulation via PLC program
  • 7" color touchscreen with English menu interface
  • Real-time display of pressure, flow rate, rotational speed, and test time
  • Comprehensive protection: leakage, overload, and short circuit
  • Panasonic servo motor + reducer for water pipe rotation
  • Stepper motor + reducer for stage rotation
  • Stainless steel multistage centrifugal pump water supply
Power supply: 380V 50/60Hz, 3kw
Compliance: JIS D0203, KS R 0015 standards
