| MOQ: | 1 |
| Price: | To be Quoted |
| Standard Packaging: | satety plastic tool box or plywood package. |
| Delivery Period: | 4 months |
| Payment Method: | T/T |
| Supply Capacity: | 10 sets per year |
| Standard | SASO 1858 |
| Test Purpose | Energy efficiency test of electric water heater |
| Laboratory Room | L × W × H: 6800mm × 3800mm × 3200mm |
| Laboratory Door | H × W: 2200mm × 1200mm |

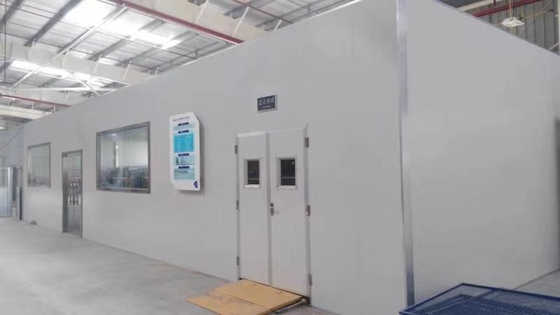

The energy efficiency laboratory of the electric water heater is designed and constructed according to international standards and specifications for precise testing and measurement.
| Measuring Point | Sensor | Data Collection | System Accuracy |
|---|---|---|---|
| Ambient temperature | HMT100 temperature point | UT35A | ±0.1℃ |
| Environment humidity | HMT100 humidity point | UT35A | ±0.1℃ |
| Mixed water tank water temperature | Pt100 Class A | UT35A | ±0.1℃ |
| Inlet and outlet water temperature | T-type thermocouple Class I | GM10 | ±0.1℃ |
| Water flow | Electromagnetic Flowmeter | GM10 | ±0.5% |
This laboratory is dedicated to comprehensive energy efficiency testing of electric water heaters, including:
Detection capability: Can test 6 household electric water heaters simultaneously.
| Feature | Description |
|---|---|
| Data Management | Storage, export, review, statistics, analysis, and printing of test data |
| Sampling Period | User-configurable from 5 to 60 seconds |
| Data Security | Automatic test continuation after system restart |
| Remote Access | Supports multi-user access with IEEE1851 standard interface |
| Multi-language | Chinese and English versions with easy switching |
| Component | Warranty Period |
|---|---|
| Purchase equipment | 3 years |
| Homemade equipment | 3 years |
| Laboratory infrastructure | 3 years |
Lifelong tracking maintenance and repair available after warranty period.
