Loading pad | IEC60601-2-52-Figure 201 .1 04 Loading pad

Product Details:

Place of Origin: China
Brand Name: KingPo
Certification: Calibration Certificate (ISO17025)
Model Number: IEC60601-2-52-Figure 201 .104

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety carton pack or plywood box
Payment Terms: T/T
Contact Now

Detail Information

Brand: KingPo Diameter: Φ335mm
Standard: IEC60601-2-52-Figure 201 .104 R: 800mm
High Light:

abrasion resistance test machine

,

tv signal tester

Product Description

Loading pad | IEC60601-2-52-Figure 201 .1 04 Loading pad



201 .5.1 02 Loading pad

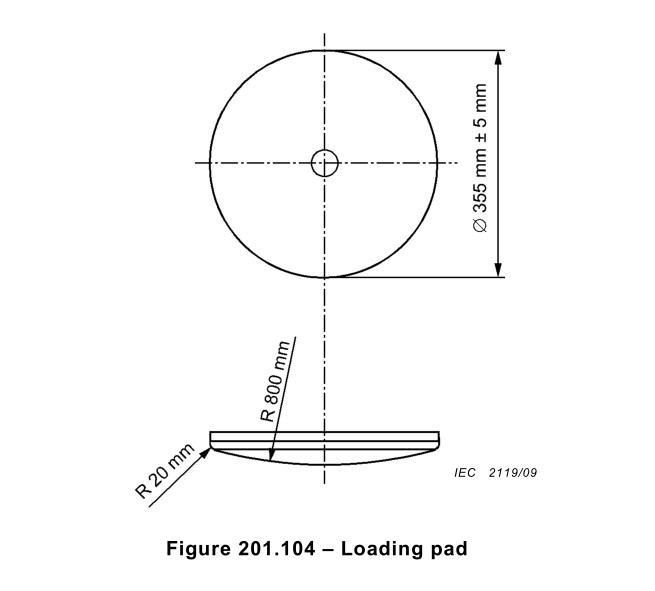

The loading pad (see Figure 201 .1 04) is a rigid circular object, (355+/–5) mm in diameter, the face of which has a convex spherical curvature of 800 mm radius with a 20 mm front edge radius.

Loading pad | IEC60601-2-52-Figure 201 .1 04 Loading pad 0



                                                    Figure 201 .1 04 – Loading pad
