Product Description

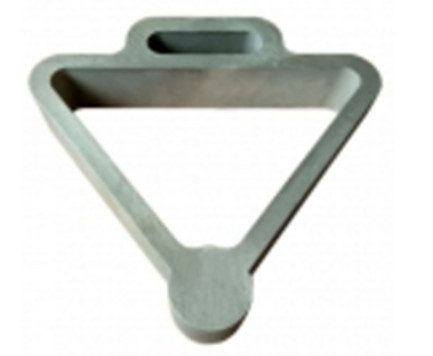

Wedge tool | IEC60601-2-52-Figure CC.1 Wedge tool

IEC60601-2-52, Wedge tool | Cylinder tool | Cone tool | Loading pad 0

Material: Aluminium
Weight: 3,34 kg


                                                                            Figure CC.1 – Wedge tool



Cylinder tool | IEC60601-2-52-Figure 201 .103 b Cylinder tool

IEC60601-2-52, Wedge tool | Cylinder tool | Cone tool | Loading pad 1



Key
1 Total weight
3,34 kg ±0,05 kg
2 Marked centre line
3 Surface roughness 1 ,6
4 Drilling hole for weight adjustment



                             Figure 201 .1 03 b) – Cylinder tool schematic



Cone tool | IEC60601-2-52-Figure 201 .103 a cone tool

IEC60601-2-52, Wedge tool | Cylinder tool | Cone tool | Loading pad 2





Key
1 Total weight 5,1 kg ±0,05 kg
2 Marked centre line
3 Surface roughness 1 ,6
4 Drilling hole for weight adjustment



Figure 201 .1 03 a) – Cone tool schematic







Loading pad | IEC60601-2-52-Figure 201 .1 04 Loading pad

IEC60601-2-52, Wedge tool | Cylinder tool | Cone tool | Loading pad 3



201 .5.1 02 Loading pad


The loading pad (see Figure 201 .1 04) is a rigid circular object, (355+/–5) mm in diameter, the face of which has a convex spherical curvature of 800 mm radius with a 20 mm front edge radius.
