Harden Steel Plug Socket Tester IEC60884 Figure 18 And 19 Verification Of Maximum Withdrawal Force Test Apparatus
Product Details:
| Place of Origin: | China |
| Brand Name: | Kingpo |
| Certification: | Calibration Certificate |
| Model Number: | KP-BCL04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | To be Quoted |
| Packaging Details: | safety carton pack or plywood box |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 25 sets per month |
|
Detail Information |
|||
| Standard: | IEC 60884-1 Fig 18 And Fig 19,VDE0620 | Purpose: | Verification Of Maximum Withdrawal Force |
|---|---|---|---|
| High Light: | electrical socket tester,hardness testing equipment |
||
Product Description

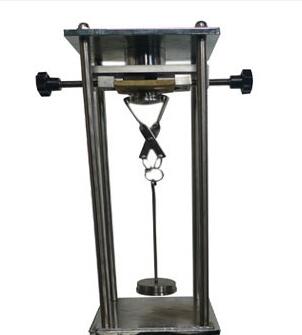

Harden Steel IEC60884 Figure18 And Figure19 Verification Of Maximum Withdrawal Force Test Apparatus
Application:
This device complies with the requirements of IEC60884 Figure 18/19, VDE0620, etc. It is suitable for checking the maximum force required to pull the plug out of the socket and the single pole pin pulled out from the socket assembly. Whether the minimum force required is within the range specified by the standard.
Parameter:
- Standard one-pole 10A, three-pole 10A and 16A test standard plugs each, 10A 16A test standard plugs each, adjustable:
- 1) Round plug with 2-pole dual socket, the bolt diameter is 4.8
- 2) The round plug of the 2-pole dual-purpose socket, the bolt diameter is 4.0
- 3) Round plug (unipolar), the bolt diameter is 4.8
- 4) Round plug (unipolar), the bolt diameter is 4.0
- Weights: 36N*1, 5.4N*1, 5N*2, 4N*1, 2.6N*1;
- 1) Standard test bolt: Each one for 1.5N and 2N
- 2)1 set of clamping device
- 3) 1 set of Weights tray
- 4) Lateral stress weights 5N*1
- 5) 1 set of lateral stress bar
| Rated value | Number of poles | Pulling force(N) | ||
| The maximum measure gauge of multipole plug pin | The minimum measure gauge of Single plug pin | The maximum measure gauge of single plug pin | ||
| ≤10A | 2 | 40 | 1.5 | 17 |
| 3 | 50 | |||
| ＞10A～16A | 2 | 50 | 2 | 18 |
| 3 | 54 | |||
| More than 3 | 70 | |||
| ＞16A～32A | 2 | 80 | 3 | 27 |
| 3 | 80 | |||
| More than 3 | 100 | |||
IEC60884-1 Figure18–Apparatus for verification of maximum withdrawal force
