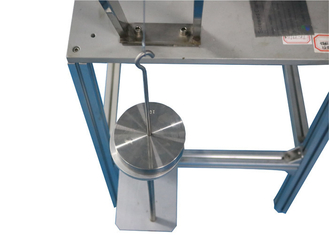

Floor Type IEC60884 Clause 24.6 Screwed Gland Torque Resistance Strength Tester

Large Image : Floor Type IEC60884 Clause 24.6 Screwed Gland Torque Resistance Strength Tester

Product Details:

Place of Origin:	China
Brand Name:	KingPo
Certification:	Calibration Certificate

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	To be quoted
Packaging Details:	safety carton pack or plywood box
Delivery Time:	100 sets per month
Payment Terms:	T/T

Contact Now

Detailed Product Description

Standard:	IEC 60598-1 Clause 4.12.5	Diameter Of The Disc:	250mm
Cylindrical Metal Rod:	14pcs In Total	Material:	Stainless Steel
Weights:	20N, 40N, 50N, 60N
High Light:	led testing equipment , led lamp testing equipment

Floor type IEC60884 Clause 24.6 250mm Screwed Gland Torque Resistance Strength Tester

Standard: IEC 60884-1 2013 clause 24.6, IEC 60598-1 clause 4.12.5

Application: This device is use for test the torque resistance strength of screwed gland of lamps and similar appliances.

Test sample: Screwed gland of lamps and similar appliances.

Feature: Floor type support, lifting weights mechanism drive turntable to achieve torque test.

Parameters:

Cylindrical metal rod: Ф5, Ф7, Ф9, Ф10, Ф12, Ф14, Ф16, Ф18, Ф20, Ф22, Ф25, Ф30, Ф32, Ф40mm, one each, 14 pc in all
Weights: 20N, 40N, 50N, 60N weight with hook, one each; 10N, 20N weight with hole, one each. Can meet the test requirements to most screwed glands.
Diameter of the disc: 250mm(500mm disc for option, with less weights)

Diameter of test rod(mm)	Metal glands(N.m)	Glands of moulded material(N.m)
<7	6.25	2.5
7~14	6.25	3.75
14~20	7.5	5
>20	10	7.5
