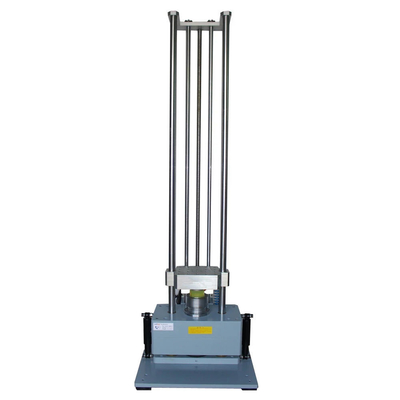

JESD22-B104 Condition B Laboratory Shock And Drop Testing Equipment / Mechanical Impact Tester

JESD22-B104 Condition B Laboratory Shock And Drop Testing Equipment / Mechanical Impact Tester
JESD22-B104 Condition B Laboratory Shock And Drop Testing Equipment / Mechanical Impact Tester JESD22-B104 Condition B Laboratory Shock And Drop Testing Equipment / Mechanical Impact Tester

Large Image :  JESD22-B104 Condition B Laboratory Shock And Drop Testing Equipment / Mechanical Impact Tester

Product Details:
Place of Origin: china
Brand Name: KingPo
Certification: iso9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 35 working days
Payment Terms: TT
Supply Ability: 5 sets per month
Detailed Product Description
Standard: JESD22-B104 Table Size Application: Aviation,aerospace,vessel,military Industry,etc
High Acceleration Shock Testing Model Application: Mobile Phone, Computer Components,etc Pressurization: Air And Hydraulic
High Light:

Battery Testing System

,

Battery Test Chamber



JESD22-B104 Laboratory Shock And Drop Testing Equipment / Mechanical Impact Tester / Shock Tester



Shock testing systems Design standards: GB/T2423-2008, GJB1217, GJB360.23, GJB150, GJB548, MIL-STD-202F, IEC-68-2-27, MIL-STD-883E, MIL-STD-810F, ISTA, UL

Also meet standard JESD22-B104 (condition B: 1500G, 0.5ms).



Shock testing systems Applications: aviation,aerospace,vessel,military industry,consumer electronics ,automobile,household appliances, display device etc.



Shock testing systems Features

  • User-friendly touching screen operation.Half sine, square waveform shock pulse programmers.High rigidity shock tables.
  • Half sine, square waveform shock pulse programmers.
  • High rigidity shock tables.
  • A full range of safety features.
  • Apply air and hydraulic pressurization, strong friction brake avoiding secondary shock.
  • Apply air spring suspension, hydraulic damping shockproof system, no shock impact on the surrounding, without foundation.



Shock testing systems Specifications



Model SKT30 SKT50 SKT100 SKT200 SKT300 SKT600 SKT1000
Table size (cm) 40*40 50*60 70*80 100*100 120*120 150*150 200*200
Maximum Specimen Weight(Kg) 30 50 100 200 300 600 1000
Max. Acceleration (G) half sine 600 600 600 500 500 300 300
saw-tooth waveform 100 100 100 100 100 100 100
square   150 150 150 100 100 100
Pulse Duration (ms) half sine 40—0.2 40~1 40~1 30~2 20~3 20~3 20~3
saw-tooth waveform 18~6 18~6 18~6 18~6 18~6 18~6 18~6
square   30~6 30~6 30~6 30~6 30~6 30~6
Machine Dimension(cm) 120*110*245 130*140*260 130*120*260 150*130*260 200*160*300 230*180*310 250*220*310
Controller cabinet Dimension(cm) W55*D50*H80
Machine Weight(Kg) 1900 2300 3200 4200 8500 15500 19500
Utility
Requirements
3-phase AC380V 50/60Hz 0.5~0.8MPa
Conforming standards GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL

High acceleration shock testing systems applications: mobile phone, computer components, connector, optical component, mobile product etc.

High acceleration shock testing systems specifications:
Model HSKT10 HSKT10 GSKT10D
Table size (cm) 15*15 20*20 20*20
Shock pulse Half sine
Maximum Specimen Weight(Kg) 5 10 10
Acceleration Range(G) 20 ~ 1500 20 ~ 1500 20 ~ 10000
Pulse Duration (ms) 0.5~11 0.5~11 0.2~11
Machine Dimension(cm) 60*55*250 60*55*250 90*70*275
Utility
Requirements
AC220V 50Hz 5A,Air pressure: more than 0.5Mpa
Machine Weight(Kg) 600 650 110

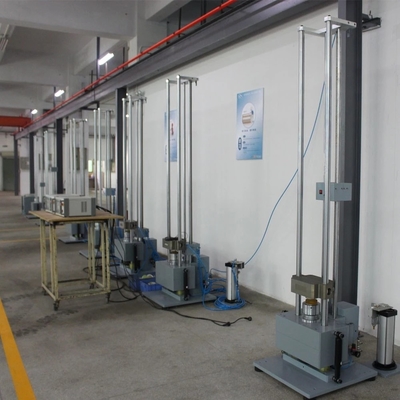

JESD22-B104 Condition B Laboratory Shock And Drop Testing Equipment / Mechanical Impact Tester 0



Samples calibration certificate



JESD22-B104 Condition B Laboratory Shock And Drop Testing Equipment / Mechanical Impact Tester 1

JESD22-B104 Condition B Laboratory Shock And Drop Testing Equipment / Mechanical Impact Tester 2
